Author: James Publish Time: 27-03-2026 Origin: Site
A practical engineering reference on where MPO fits in modern data center fiber design, how it improves density and deployment speed, and which architectures are easier to scale.
MPO is most effective where high fiber count, repeatable deployment, and future migration matter more than lowest first cost.
For structured data centers, trunk + cassette or trunk + panel architectures usually provide the best balance of density and maintainability.
Polarity planning, loss budget control, and upgrade path clarity should be defined before cable count is finalized.

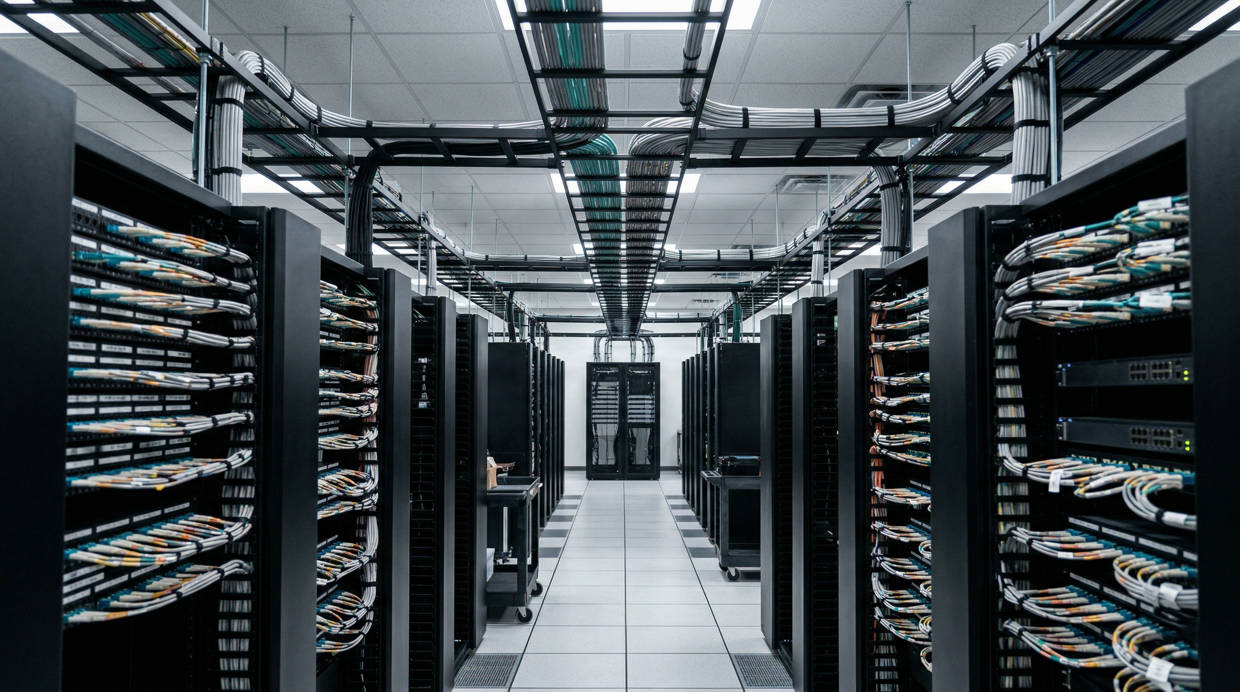

In a data center environment, MPO cabling is a structured fiber approach that uses multi-fiber connectors to consolidate many fibers into a compact interface. Instead of managing large quantities of individual duplex links, teams can use pre-terminated trunks, modular cassettes, and patching hardware to build higher-density optical channels.
The value of MPO is not only connector density. Its main advantage is that it turns fiber deployment into a repeatable system. That matters in data centers where rows of cabinets, spine-leaf switching, and staged expansions create pressure on rack space, installation time, labeling discipline, and future migration planning.
| Element | Role in the System | Why It Matters |
|---|---|---|
| MPO Trunk | High-fiber-count backbone between cabinets, zones, or patching areas | Reduces routing complexity and supports modular expansion |
| Cassette | Breaks MPO into LC or other equipment-facing interfaces | Useful when the backbone is MPO but active ports are duplex |
| Patch Panel | Organizes cross-connect or interconnect points | Improves manageability, traceability, and service access |
| MPO Patching | Connects modules, trunks, or equipment directly | Maintains density for parallel optics and structured links |
Related internal paths for this topic typically include the upstream solution page MPO Fiber Solutions and downstream supporting pages such as Patch Panel, Trunk, Cassette, and 100G-400G.
Data centers use MPO because high-speed networks create a large number of optical connections in a limited physical footprint. Once cabinet density increases and patching fields become more crowded, the operational cost of handling many separate duplex links rises quickly. MPO reduces that handling burden.
The benefit is strongest in projects where the same deployment pattern repeats across many cabinets or rows. In those cases, pre-terminated MPO assemblies improve installation consistency, shorten cutover windows, and make later expansions less disruptive. This is especially useful in new builds, phased rollouts, and environments expecting speed migration over time.
| Design Goal | Why MPO Helps | Engineering Impact | Operational Impact |
|---|---|---|---|
| Higher density | More fibers per connector interface | Better use of panel and pathway space | Cleaner racks and simpler front access |
| Faster deployment | Factory pre-termination reduces field work | Lower risk of on-site termination defects | Shorter project schedules and cutover times |
| Future migration | Structured backbone can remain while front-end changes | Supports staged upgrades to higher-speed optics | Less rework during technology refresh |
| Repeatability | Standardized modules and channel logic | Easier documentation and quality control | Simpler maintenance and MAC activity |

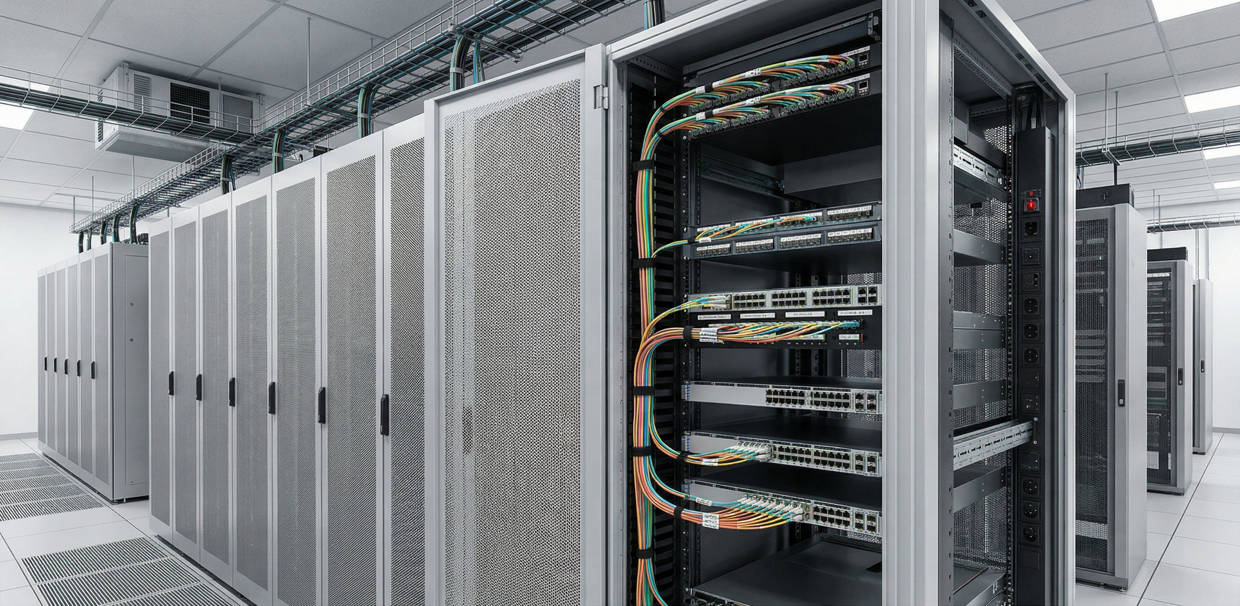

In data centers, MPO is commonly applied in structured spine-leaf networks and backbone distribution. The exact architecture depends on whether the equipment side is still duplex, whether the backbone is designed for direct parallel optics, and how much flexibility the operator wants at the cross-connect layer.
In a spine-leaf topology, each leaf often connects to multiple spines, which creates repetitive, high-count optical links. MPO trunks help consolidate these links across rows or structured zones, while cassettes or panels make front-end patching easier to manage.
MPO is also effective between main distribution areas, horizontal distribution areas, meet-me rooms, and cabinet rows. In those cases, the backbone can remain stable while active equipment and port layouts evolve over time.
| Architecture | Typical Layout | Best Use Case | Main Strength | Main Trade-off |
|---|---|---|---|---|
| MPO Trunk + Cassette | MPO backbone with LC breakout at the access side | Mixed-speed environments and gradual migration | High flexibility and easier equipment compatibility | Additional insertion loss and module cost |
| MPO Trunk + MPO Panel | End-to-end MPO patching | Parallel optics and high-density core zones | Maximum density and fewer conversion points | Requires stricter planning and documentation |
| Direct MPO Trunk to Equipment | Short, controlled pathways with minimal intermediates | Standardized cabinet layouts and short links | Lower channel complexity | Less flexible for later rearrangement |
| Hybrid migration design | MPO backbone with selected duplex breakouts and future spare capacity | Sites planning 100G to 400G transitions | Balances present needs with future upgrades | Needs disciplined forecasting and labeling |
A practical MPO deployment usually starts with the permanent infrastructure layer. Teams define where trunks will run, which cross-connect points are fixed, and where breakouts are necessary. After that, the channel is matched to the application: direct MPO for parallel links, or MPO-to-LC conversion where active ports remain duplex.
The engineering logic is straightforward. Keep the backbone stable, keep pathways clean, minimize unnecessary conversion points, and only add modular elements where they create real operational value. This is why data center MPO designs often look similar even when the facilities differ in size.
| Step | Design Question | Recommended Logic |
|---|---|---|
| 1 | Where is the permanent backbone? | Use MPO trunks for repeated, high-fiber-count pathways between zones or cabinets |
| 2 | What interface do active ports require today? | Add cassettes where LC access is needed; keep direct MPO where parallel optics are planned |
| 3 | How will speeds change later? | Reserve architecture flexibility for 100G-400G migration and avoid dead-end layouts |
| 4 | What must remain easy to maintain? | Prioritize labeling clarity, traceability, and access at patching points |

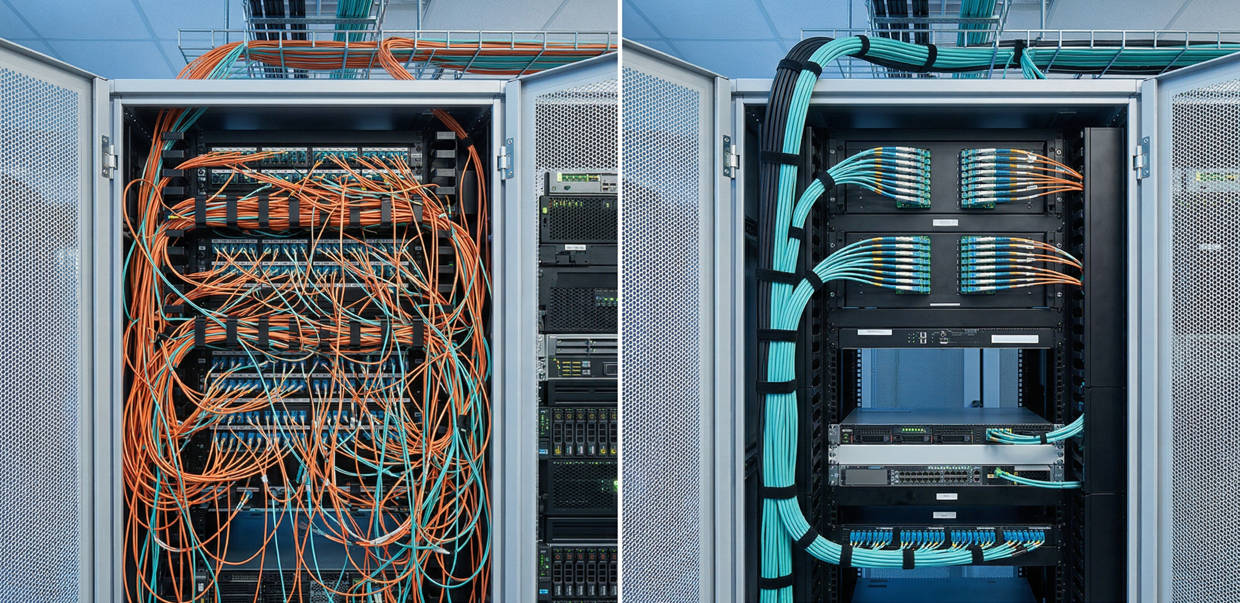

MPO is not equally valuable in every optical environment. Its strongest applications are the ones that combine repeated deployment patterns, density pressure, speed migration needs, and operational demand for cleaner cable management.
| Scenario | Why MPO Fits | Preferred Structure | Notes |
|---|---|---|---|
| Spine-to-leaf interconnect | Many repeated high-speed links across rows or pods | MPO trunk + panel or structured trunk + cassette | Good for high-count switching fabrics |
| Cabinet row backbone | Stable permanent infrastructure with future moves | MPO trunk backbone with modular breakout where needed | Reduces future re-cabling |
| 100G / 400G migration planning | Parallel optics and changing port strategies | Hybrid MPO architecture with defined upgrade path | Loss budget review is important |
| High-density cross-connect zones | Panel space and cable routing are constrained | MPO panel-centered distribution | Best when documentation discipline is strong |
Where the environment is small, static, or unlikely to migrate beyond modest link counts, MPO may still work, but its infrastructure advantages become less pronounced. In those cases, teams should compare the added modular cost against actual operational benefit.
Most MPO deployment problems are preventable. They usually come from design shortcuts rather than product failure. The most common issues involve polarity confusion, excess insertion loss, unclear upgrade planning, and channel layouts that look dense on paper but are difficult to maintain during real operations.
| Risk | What Causes It | Operational Effect | How to Reduce It |
|---|---|---|---|
| Polarity errors | Mixed components without a defined polarity plan | Link failures and extended troubleshooting | Document the polarity method before procurement |
| Excess loss budget consumption | Too many adapters, cassettes, or low-grade interfaces | Reduced optical margin for higher-speed links | Review connector grade and channel design early |
| Over-modularization | Adding modules that do not solve a real need | Higher cost and more failure points | Keep the channel as simple as the application allows |
| Weak labeling discipline | Inconsistent naming and undocumented changes | Slow maintenance and higher MAC risk | Define a labeling scheme at the design stage |
| No upgrade roadmap | Selecting fiber count only for current port demand | Costly rework during future migration | Match trunk strategy to expected speed evolution |
For engineering teams, the fastest way to judge MPO suitability is to compare density pressure, upgrade requirements, installation constraints, and maintenance expectations. MPO is most justified when multiple decision variables point toward structured repeatability rather than isolated link-by-link cabling.
| Decision Condition | Choose MPO Aggressively | Choose MPO Selectively | Keep It Simple / Limited MPO |
|---|---|---|---|
| Rack and panel density | High density is a core requirement | Only selected zones are dense | Space is not a major constraint |
| Deployment pattern | Many repeated cabinet or row deployments | Some repeated zones, some custom links | Mostly one-off link layouts |
| Future migration | 100G-400G roadmap is active | Migration is possible but not immediate | Speed roadmap is stable for years |
| Maintenance requirements | High traceability and frequent MAC activity | Moderate service activity | Rare changes after installation |
| Budget logic | Value comes from operational efficiency and scaling | Balanced CAPEX and OPEX view is needed | Lowest first cost is the main driver |
| If Your Priority Is... | Recommended Direction | Reason |
|---|---|---|
| Fast rollout across repeated cabinet patterns | Pre-terminated MPO trunk-based design | Minimizes field work and standardizes deployment |
| Mixed current equipment with future higher-speed plans | MPO backbone with cassette-based access | Keeps the backbone stable while front-end changes |
| Maximum density for parallel optics | End-to-end MPO panel architecture | Reduces conversion points and preserves density |
| Lowest initial spend in a small static site | Use MPO only where clearly justified | Prevents overbuilding where operational gains are limited |
No. MPO is most effective when density, repeatability, and future migration matter. In small and stable environments, the added modular structure may not create enough operational value to justify a broader rollout.
Choose cassettes when the backbone should remain MPO but active equipment ports are duplex or likely to change. Choose direct MPO designs when density is critical and the application is already aligned with parallel optics or standardized MPO patching.
The main risk is usually not physical mating alone, but system-level mismatch across polarity method, channel layout, connector grade, and intended application mapping. Compatibility should be reviewed as a full link design, not as a single component check.
It can reduce total deployment and operational cost when installation time, repeatability, and long-term manageability are included in the calculation. It does not always reduce the lowest initial material cost, so CAPEX and OPEX should be evaluated together.
Yes. In practice, data center MPO assemblies are often customized by fiber count, polarity, length, breakout structure, and labeling. Factory testing and channel documentation are especially valuable for projects that require predictable deployment quality and traceability.
They should confirm architecture type, polarity method, intended application speed, connector and module structure, loss targets, labeling rules, and whether the project expects staged migration. Ordering before those points are defined often creates avoidable rework.
MPO cabling is widely used in data centers because it supports a combination of high density, faster deployment, cleaner backbone organization, and more controlled migration planning. Its real value appears when the facility must scale, repeat deployment patterns across many cabinets, and remain serviceable over time.
For most engineering teams, the key decision is not whether MPO is technically possible. The key decision is where MPO delivers enough operational value to justify a structured design. In practice, that usually means using MPO where density, repeatability, and upgrade planning intersect, while avoiding unnecessary complexity in smaller or static areas.
