Author: Site Editor Publish Time: 30-04-2026 Origin: Site
UL 1666 is the riser flame test used to evaluate flame propagation of cables installed vertically in shafts or floor-penetrating vertical runs.
A riser cable cannot be judged only by jacket material because fire performance depends on the finished cable construction as a whole.
For real projects, cable type marking, installation location, listing traceability, and construction consistency matter more than a generic “flame-retardant jacket” claim.
UL 1666 is the flame propagation test used for electrical and optical-fiber cables installed vertically in shafts or in floor-penetrating vertical runs. For communications cable buyers, the practical meaning is straightforward: if the route is a riser pathway, you should not approve cable only because the jacket sounds flame-retardant. Riser suitability is a finished-cable compliance issue. The full cable design—jacket, insulation, fillers, separator, shielding, geometry, and overall construction stability—affects how the cable behaves in a real riser fire test.
This matters most in multi-floor commercial buildings, telecom backbone routes, security system risers, and other low-voltage vertical pathways where inspection failure can lead to replacement labor, schedule delay, and avoidable project cost.
| Question | Short Answer | Buyer Impact |
|---|---|---|
| What is UL 1666? | A riser flame propagation test for cables installed vertically | Helps determine suitability for riser installations |
| Can I judge a riser cable only by jacket material? | No | Construction changes can affect compliance and inspection outcome |
| What should I confirm first? | Installation location, cable type, listing evidence | Reduces substitution and rework risk |
Riser pathways are different from ordinary horizontal routes because they connect multiple floors. In a fire event, vertical pathways can allow faster upward flame travel. That is why building standards separate general-purpose cabling, riser cabling, and plenum cabling instead of treating them as interchangeable product labels.
In real projects, this distinction affects commercial office buildings, hotels, hospitals, campus buildings, apartment blocks, industrial office structures, CCTV backbones, access control systems, telecom risers, and structured cabling trunks. The higher the inspection intensity and the more floors involved, the more expensive a wrong cable choice becomes.
| Project Area | Typical Route | Main Risk | Decision Focus |
|---|---|---|---|
| Multi-floor telecom shaft | Vertical run between floors | Flame travel upward | Use correct riser-rated cable type |
| Backbone structured cabling | Telecom room to telecom room | Inspection rejection | Match route to code/spec |
| Security and fire systems | Low-voltage vertical shaft | Mixed cable substitution | Confirm rating and listing traceability |
| Ordinary horizontal office route | Wall, conduit, underfloor, non-riser path | Overbuying or under-specifying | Check whether CM is enough |

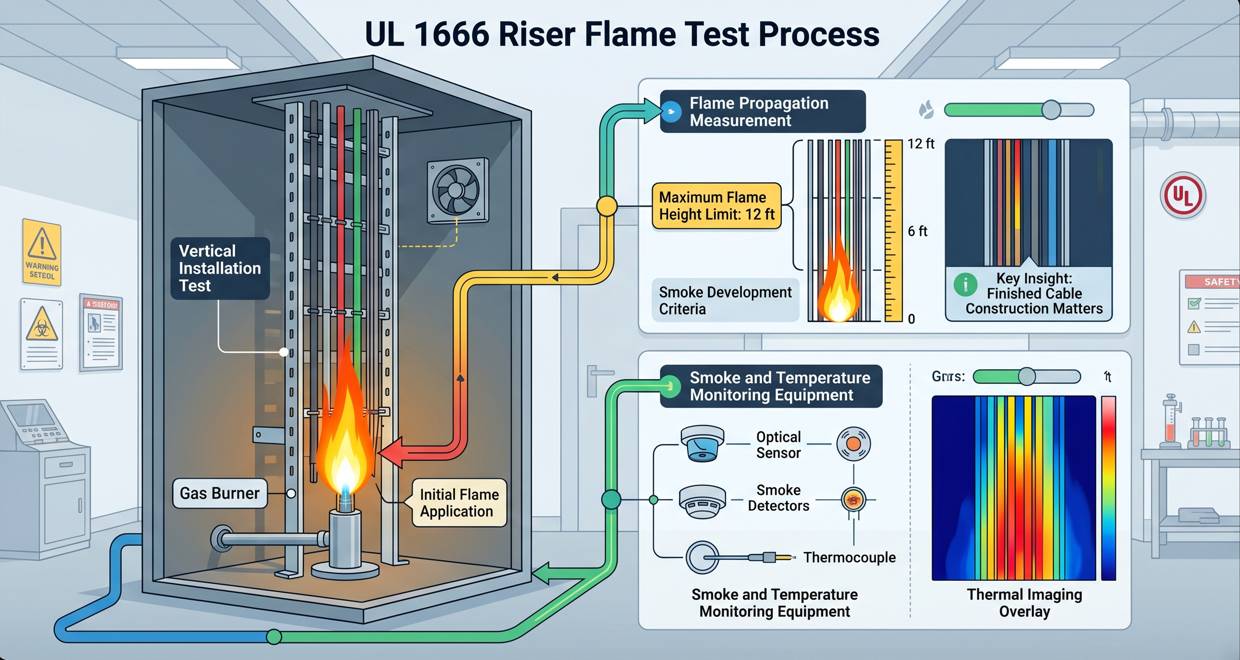

UL 1666 focuses on flame propagation behavior for cables installed vertically in shafts or in vertical runs that penetrate one or more floors. For buyers, that means the standard is about how the cable behaves in a riser-style fire scenario—not about every other property a cable may have.
This distinction is important because some teams incorrectly assume that a cable passing a riser-related requirement automatically confirms smoke chemistry, halogen content, or network transmission performance. It does not. Those are separate decision layers.
| UL 1666 Focus | What It Means for Buyers | Why It Matters |
|---|---|---|
| Vertical flame propagation | Evaluates upward flame spread in riser-like installation | Aligns cable choice with vertical pathway fire risk |
| Finished cable behavior | Looks at the complete cable design, not only the jacket | Prevents over-simplified selection logic |
| Application suitability | Supports riser installation decisions | Reduces route-rating mismatch |
| Not Directly Confirmed by UL 1666 | Buyer Reminder |
|---|---|
| Electrical / optical transmission performance | Still confirm Cat5e, Cat6, Cat6A, coax, or fiber performance separately |
| Low smoke, zero halogen, or low toxicity requirements | Treat LSZH and riser compliance as different specification layers |
| Plenum suitability | CMP and plenum requirements follow a different installation logic |
| Every possible construction standard | Check the product standard, marking, and listing details together |
This is the key decision point many buyers miss. A flame-retardant jacket may be necessary, but it is not enough by itself. In a completed communications cable, fire behavior is influenced by the total cable construction. That includes conductor bundle arrangement, insulation, fillers, separator design, shielding, binder tape, diameter, cavity structure, and how all materials interact under heat.
In other words, two cables can use similar jacket descriptions and still behave differently in a riser flame scenario. That is why relying on “FR PVC jacket” or “LSZH jacket” as a shortcut can lead to a false sense of compliance.
| What Buyers Look At | What May Be Missed | Resulting Risk |
|---|---|---|
| Flame-retardant PVC jacket | Internal insulation or filler contribution | Wrong assumption about full-cable performance |
| LSZH jacket claim | No automatic proof of riser rating | Spec mismatch or inspection issue |
| Same jacket as previous cable | Changed separator, filler, or shield structure | Uncontrolled substitution risk |
| Supplier verbal statement | Missing listing traceability and product identity | Liability and warranty exposure |
Most project mistakes happen when teams compare cable types without first defining the route. The cleanest decision process is to start with the installation environment, then check the required cable type, and only after that compare cost and availability.
| Cable Type | Typical Use Logic | Main Buyer Question | Decision Rule |
|---|---|---|---|
| CM | General-purpose communications cable | Is the route ordinary indoor cabling only? | Use only where general-purpose cable is accepted |
| CMR | Riser communications cable | Does the cable pass vertically between floors or in a riser shaft? | Use for riser routes where required |
| CMP | Plenum communications cable | Is the cable in a plenum or air-handling space? | Choose when plenum rating is required |
A good riser cable RFQ should reduce ambiguity before samples and production start. Procurement should not only ask for a cable type; it should ask for route fit, listing traceability, construction stability, and marking consistency.
| RFQ Item | What to Confirm | Why It Matters |
|---|---|---|
| Installation route | Riser shaft, plenum, or ordinary indoor path | Prevents choosing the wrong cable family |
| Cable type marking | CM, CMR, CMP, or relevant optical type | Supports route-to-rating alignment |
| Listing traceability | Supplier evidence and product identity consistency | Reduces counterfeit or label-only claims |
| Cable construction | Jacket, insulation, fillers, separator, shielding, diameter | Construction changes can alter fire behavior |
| Performance standard | Cat5e, Cat6, Cat6A, coax, or fiber requirement | UL 1666 does not replace network performance validation |
| Packaging and marking | Jacket print, box label, reel label, batch control | Helps avoid shipment mismatch |
Check the route first.
Confirm the rating second.
Verify product identity and traceability third.
Only then compare price, lead time, and customization.
The following mistakes appear frequently in cable quotations and project substitutions, especially when teams try to simplify fire compliance into one material description.
| Choice | Initial Cost | Compliance Risk | Rework Risk | Best Use |
|---|---|---|---|---|
| Correct CMR / riser-rated cable | Medium | Low | Low | Vertical shaft and multi-floor backbone routes |
| CM cable used by mistake | Lower | High | High | Not recommended for riser routes |
| CMP used for a riser-only route | Higher | Lower | Low | Mixed-route or simplified inventory strategy |
| Unverified “riser-like” cable | Unclear | Very high | Very high | Avoid for inspected projects |
UL 1666 matters because riser pathways create a specific fire-spread risk that ordinary indoor routes do not. For engineers and buyers, the key lesson is simple: do not reduce riser cable selection to a jacket material decision. A real riser decision should combine route analysis, cable type, fire-test relevance, construction consistency, and supplier traceability.
If your team is quoting communications cable for multi-floor buildings, telecom risers, security backbones, or mixed-route projects, checking the rating boundary early can save far more than it costs. It reduces inspection risk, rework, and procurement uncertainty.
