MTC-SC Pushable Fiber Cable
Fiber Optic System
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

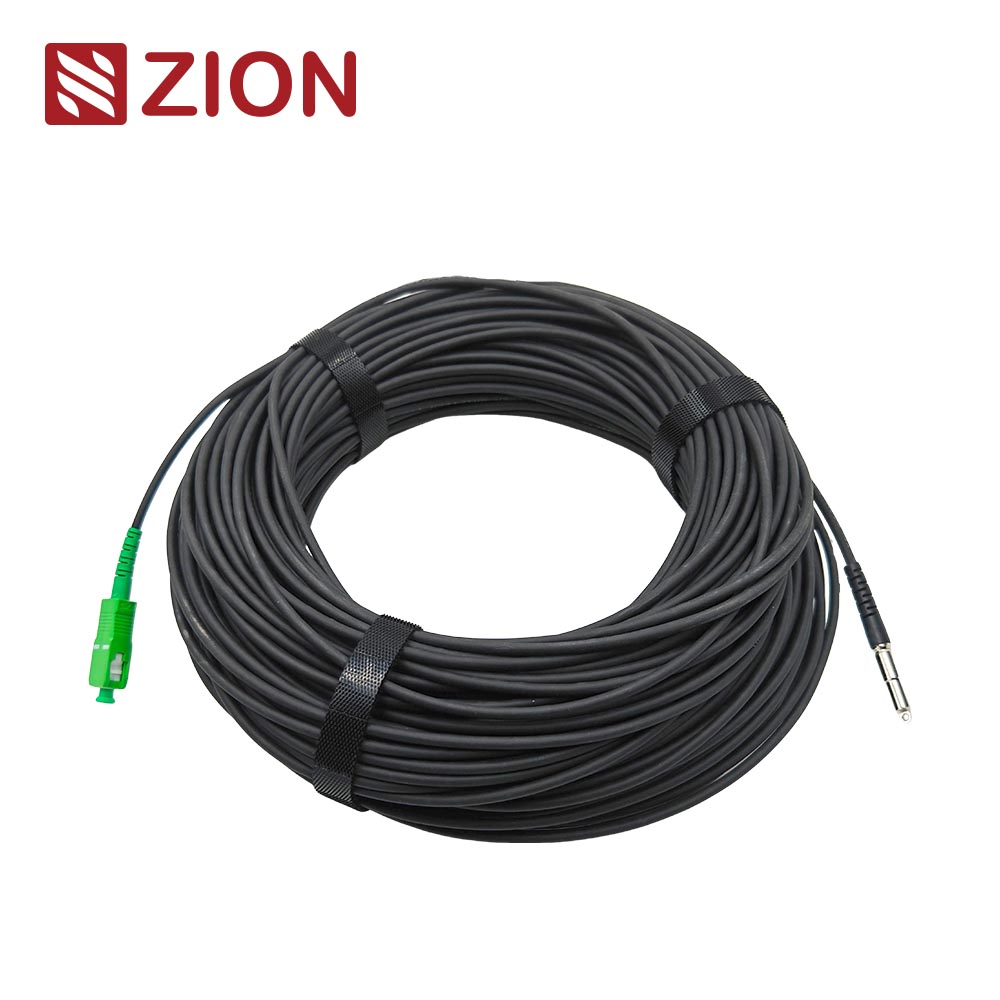

This Simplex Pushable/Pullable Optical Fiber Patch Cable was constructed to meet the Class D premium performance standards for indoor and outdoor FTTH and FTTX installations. The bullet-shaped fiber construction prevails as a non-precipitating feature for microducts or other similar installations — favoring the use of stripped coatings instead of bulky pipes and fusion splicing.

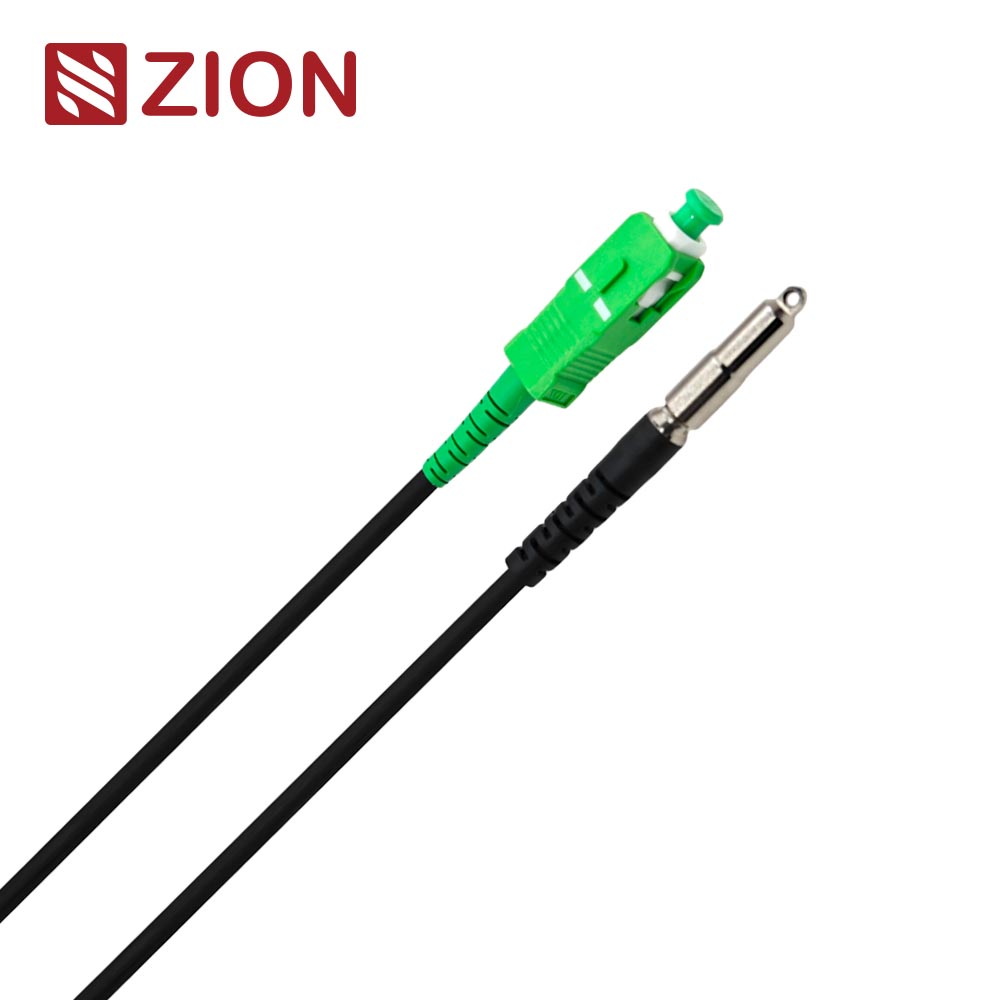

Being SC/APC to SC/APC male connectors, inner layer could be armored, and OS2 fiber for single mode, the performance is ensured while the durability is accounted for any use scenario.
On the End A, there is a standard SC/APC connector with a 2.5 mm ferrule.

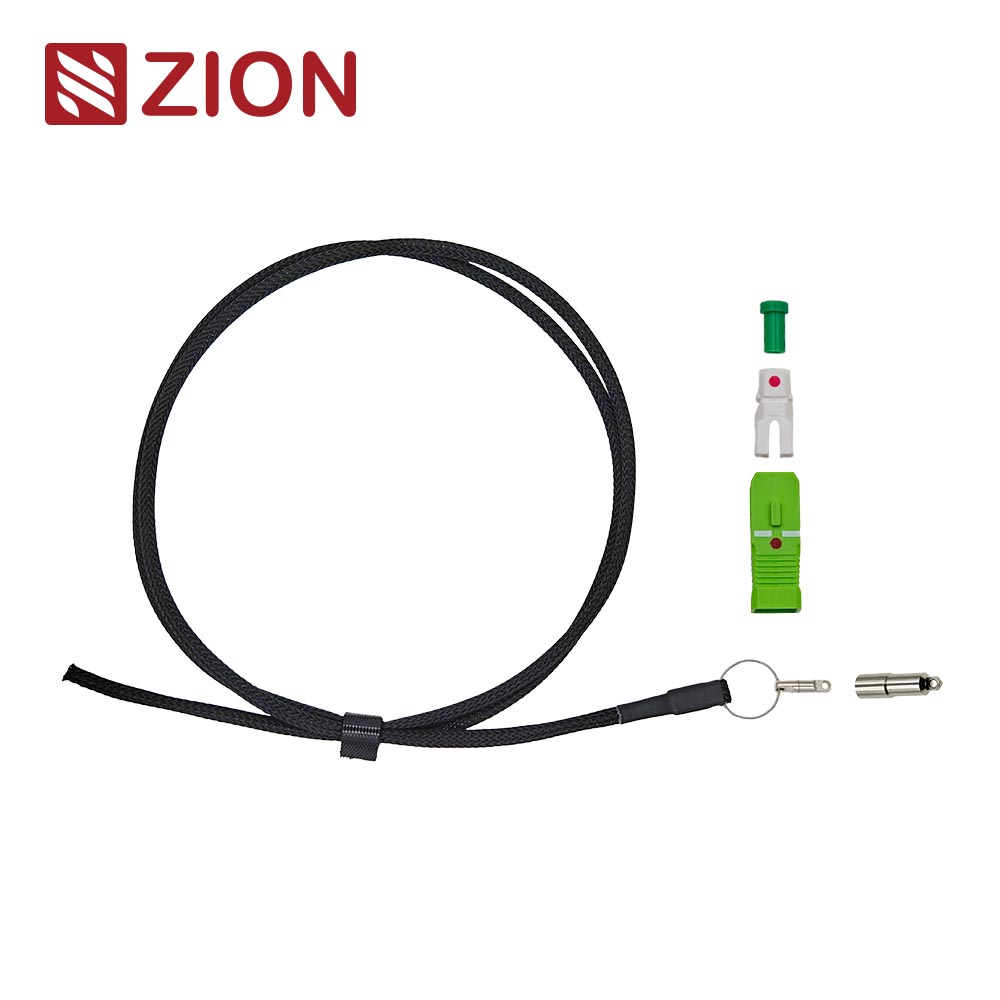

On the End B, the components are provided separately
a 2.5 mm APC ferrule, a green SC housing, a white body, and a bullet-style protector.
1. Bullet-Style Protector
2. Mountable Body
3. Mountable Housing
4. Dust Cap
5. Pulling Mesh with Swivel
Parameter | Details |
Fiber Type | OS2 Single Mode, 9/125 μm |
Fiber Count | Simplex (1 fiber strand) |
Connectors | SC/APC Male to SC/APC Male |
Cable Length | 60m (200ft) |
Bullet Connector Feature | Protective sleeve on pushable end |
Outer Jacket | Black, Indoor/Outdoor LSZH, water-rated |
Cable Diameter | 3.0 mm |
Armor | Internal stainless steel micro-armor |
Bend Radius | ≥ 30 mm |
Insertion Capability | Fits holes or ducts ≥ 1/4 inch (6.35 mm) |
Operating Temperature | -40°C to +85°C (-40°F to 185°F) |
Mating Durability | Rated for over 500 mating cycles |
Standards Compliance | TIA/EIA-568-C.3, IEEE 802.3z, RoHS, REACH |
Custom Options | Lengths and configurations available on request |
Pushable/Pullable Bullet Design
Flexible to create a peeling kink-resistant protective layer with gradual numbness and easy passage through wall holes and conduits.
High-Performance OS2 Fiber
Provides the requisite single mode to attain low-loss transmission, which can cover vast distances and high data rates applications.
Durable Indoor/Outdoor Jacket
Ideal cable for duct or riser spaces within buildings, black waterproof LSZH sheath for external applications.
Stainless Steel Micro-Armor
Creates rigid protection and supports its flexibility and its compact size.
Pre-Terminated SC/APC Connectors
Factory-installed production system rather than raw material improve quality consistency and reduced construction times.
Tool-Free Installation
The bullet sleeve is detachable at the head end, which makes it easy to insert the bullet into the tight space, ultimately with no polishing or splicing.
FTTH and FTTX Deployments
It is the best component in FTTH or FTTP installments.
Retrofit Installations
Perfect for re-purposing existing tubes or wires with minor interference.
Data Center & Cabinet Links
Rapid connection of physical paths between cabinets and servers in the rack, as well as shots through the nodes.
Tight-Space Builds
This equipment is beneficial for high-density or secured complex access environments where field implementation of traditional cables is challenging.
Feature | Pushable Cable | Traditional Fiber Patch Cord |
Pre-Terminated Design | ✔ Yes | ✘ No (Splicing required) |
Push/Pull Through Microducts | ✔ Excellent | ✘ Limited |
SC Bullet Connector for Wall Use | ✔ Standard | ✘ Rare |
Compatible with MPO/MTC Systems | ✔ Yes | ✘ Usually No |
Tool-Free Fiber Optic Installation | ✔ Yes | ✘ No |
Ideal for FTTH & FTTX | ✔ Optimized | ✘ Not purpose-built |
Parameter | Condition / Wavelength | |
Attenuation | @1310 nm | ≤ 0.35 dB/km |
@1550 nm | ≤ 0.25 dB/km | |
@1625 nm | ≤ 0.26 dB/km | |
Zero Dispersion Wavelength | 1250 ~ 1350 nm | |
Zero Dispersion Slope | ≤ 0.11 ps/nm²·km | |
Macrobending Loss (1 turn) | Φ20 mm @1550 nm | ≤ 0.03 dB |
Φ20 mm @1625 nm | ≤ 0.10 dB | |
Φ15 mm @1550 nm | ≤ 0.08 dB | |
Φ15 mm @1625 nm | ≤ 0.25 dB | |
Φ10 mm @1550 nm | ≤ 0.15 dB | |
Φ10 mm @1625 nm | ≤ 0.45 dB | |
Mode Field Diameter | @1310 nm | |
Parameter | Value |
Fiber Core Diameter | 7 ~ 10 µm |
Cladding Diameter | 125 ± 0.7 µm |
Cladding Non-Circularity | ≤ 1.0 % |
Core/Cladding Concentricity Error | ≤ 0.5 µm |
Coating Diameter (colored fiber) | 250 ± 15 µm |
Tight Buffer Diameter | 900 ± 50 µm |
Parameter | Value |
Proof Test | ≥ 0.69 GPa |
Jacket Material | Black TPU, UV-resistant |
Buffer Material | LSZH |
Strength Member | Aramid Yarn |
Parameter | Value |
Fiber Count | 1 (G.657B3) |
Tight Buffered Fiber Diameter | 900 ± 50 µm |
Cable Outer Diameter | 3.0 ± 0.2 mm |
Cable Weight | 7.8 ± 0.5 kg/km |
Operating Temperature Range | -40°C +70°C |
Installation Temperature Range | -40°C +70°C |
Transport & Storage Temperature Range | -40°C +70°C |
Parameter | Value |
Maximum Tensile Load | ≥ 600 N |
Crush Resistance | Static: 100 N/10 cmDynamic: 800 N/10 cm |
Minimum Bending Radius (Installation) | 20 × OD |
Minimum Bending Radius (Operation) | 10 × OD |
Minimum Cable Length per Reel | ≥ 90 m |
Sag Ratio | 1.00% |
Max Wind Speed | 70 km/h |
Fiber Color | Blue |
Buffer Color | Blue |
IEC-60793-1-44:2011
IEC-60794-1
CE, RoHS, ISO 9001
ITU-T G.657
TELCORDIA GR-20
ICEA S-87

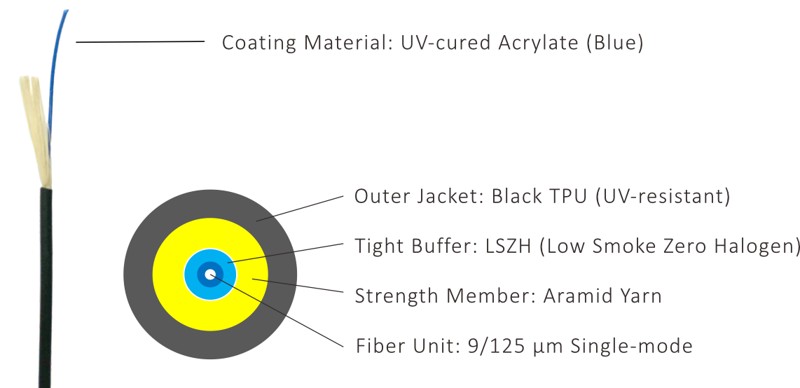

■ Cable Structure
Specification | Parameter |
Fiber Type | Single-mode |
Category / Attenuation | ITU-T G.657B3 / ≤ 0.25 dB/km |
Application | Indoor, Outdoor, and Duct Installations |
Connector Type | SC |
Polish Type | APC |
Ferrule Angle | 8° |
Ferrule Material & Diameter | Ceramic (Zirconia), 2.5 mm |
Insertion Loss (IL) | ≤ 0.3 dB |
Return Loss (ORL) | ≥ 55 dB |
Mechanical Durability | > 500 mating cycles |
Operating Temperature | -40°C to +70°C |
Storage Temperature | -40°C to +70°C |
Tensile Strength (Cable + Connector) | ≥ 70 N |
Tensile Strength (Cable + Pulling Mesh) | ≥ 300 N |
Mode Field Diameter @1310 nm | (8.6 ~ 9.2) ± 0.4 µm |
Winding Length (per reel) | 100, 150, 200, 250, 300, 350, 400 m |
■ Complementary Accessories
Description | Details |
Bullet Protector with Hook Tip | |
– Protector Material | Stainless Steel |
– Dimensions | Φ5.5 mm (diameter) × 30.5 mm (length) |
– Function | Acts as a swivel/twist-relief bullet head |
– Quantity | 1 piece |
Pulling Mesh | |
– Material | Nylon |
– Dimensions | Φ6 mm × 100 cm |
– Quantity | 1 piece per 100 jumpers |
Dust Cap | |
– Function | Protects the ferrule ends |
– Quantity | 2 pieces (one on each connector end) |
Mountable Body | |
– Quantity | 1 piece (bullet side) |
Mountable Housing | |
– Quantity | 1 piece (bullet side) |
User Manual | |
– Quantity | 1 piece per 100 jumpers |
Accessories (Choose one of the two options)
Accessory Option 1:

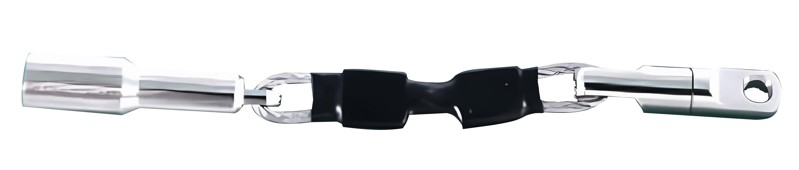

Metal Pulling Cap + Torque Releaser
Tensile Strength:
• 2.0 × 3.0 Flat Drop Cable: ≥70 N
• φ3.0 mm Round Optical Cable (Aramid Reinforced Core): ≥100 N
Accessory Option 2:

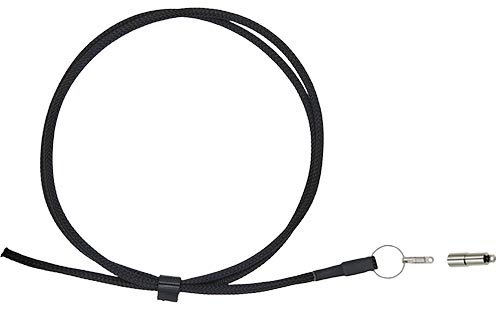

Plastic Pulling Cap + Pulling Mesh Sleeve
Tensile Strength:
• 2.0 × 3.0 Flat Drop Cable: ≥200 N
• φ3.0 mm Round Optical Cable (Aramid Reinforced Core): ≥200 N
■ Optical Fiber Specification
Item | Test Standard | Method | Acceptance Criteria |
Tensile Test | IEC 60794-1-E1 | - Maximum tensile strength- Sample length: 50 meters- Duration: 10 minutes | - Fiber deformation under max load: max. 0.33%- Attenuation increase: ≤ 0.10 dB |
Torsion Test | IEC 60794-1-E7 | - 1 m cable length with 150 N weight- ±180°, 10 cycles | - No cracks or fractures on the outer jacket- Attenuation increase ≤ 0.10 dB after the test |
Repeated Bending Test | IEC 60794-1-E6 | - Bending radius: 25 × outer cable diameter- 1 m cable length with 150 N weight- 25 cycles | - No splits or cracks in the outer jacket- Attenuation increase ≤ 0.10 dB after the test |
Temperature Cycle Test | IEC 60794-1-F1 | - Temperature cycle: +20°C → -40°C → +60°C → -40°C → +60°C → +20°C- Dwell time per cycle: 12 hours- Number of cycles: 2 | - Attenuation variation from reference value (+20 ± 3°C) ≤ 0.10 dB/km |
Bending Test | IEC 60794-1-E11B | - Mandrel diameter: 25 × cable diameter- Number of cycles: 1 cycle | - Attenuation change ≤ 0.1 dB- No fiber breakage or cable damage |
Water Penetration Test | IEC 60794-1-F5 | - Water height: 1 m- Sample length: 3 m- Test duration: 24 hours | - No water leakage at the end of the sample |
Polish | Curvature Radius (mm) | Apex Offset (mm) | Fiber Height (nm) | Angle (°) | ||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
APC | 5 | 12 | 0 | 70 | -100 | 100 | 7.5 | 8.5 |
We can provide FTTH pushable cable projects with OEM branding, customized lengths, and technical support.
Talk to our advisors for us to assist you with the most suitable microduct fiber optic solution for your project.
James is a technical manager and associate at Zion Communication.
Specializes in Optical Fiber communications, FTTH Solutions,
Fiber optic cables, ADSS cable, and ODN networks.
