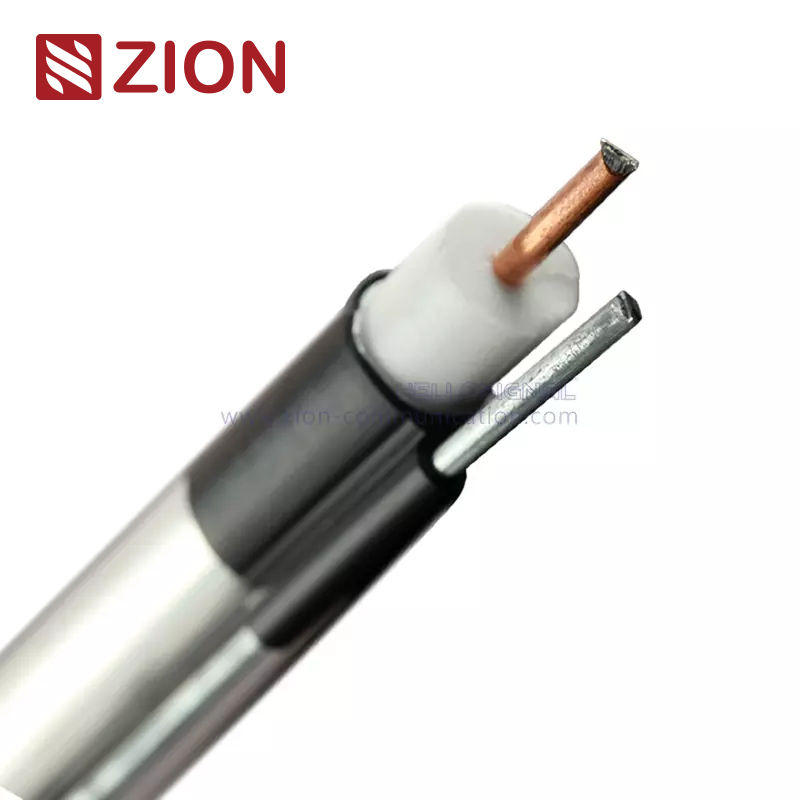

QR-860M Coaxial Cable

■ Construction Parameters:

Inner Conductor: 0.203 Inches / 5.16 mm Copper Clad Aluminum

Dielectric: 0.828 Inches / 21.03 mm Foamed PE

First Shield: 0.860 Inches / 21.84 mm Welding Smooth Aluminum Tube

Shield Thickness: 0.016 Inches / 0.41 mm

Jacket: 0.960 Inches / 24.38 mm PE/Flame Retardant PE

Jacket Thickness: 0.045 Inches / 1.14 mm

Messenger: 0.188 Inches / 4.78 mm Steel

■ Electrical Characteristics:

Capacitance: 50 ± 3 pF/m

Impedance: 75 ± 2 Ω

Velocity of Propagation: 88%

Inner Conductor DC Resistance: 1.33 Ω/km

Outer Conductor DC Resistance: 1.04 Ω/km

Loop DC Resistance: 2.37 Ω/km

■ Mechanical and Environmental Properties:

Min. Bend Radius: 17.8 mm

Max. Pulling Tension: 204 kgf

Max. Breaking Strength of Messenger: 1769 kgf

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL QR-860 XXX M (or per customer's request)

Package: 1000m/Wooden Spool (or per customer's request)

Delivery Time: Normally 15 days after receiving the deposit

Brand: HELLOSIGNAL® OR OEM
