RG 214 Coaxial Cable

  • RG 214

  • hellosignal

  • XT0409

Availability:

Specification

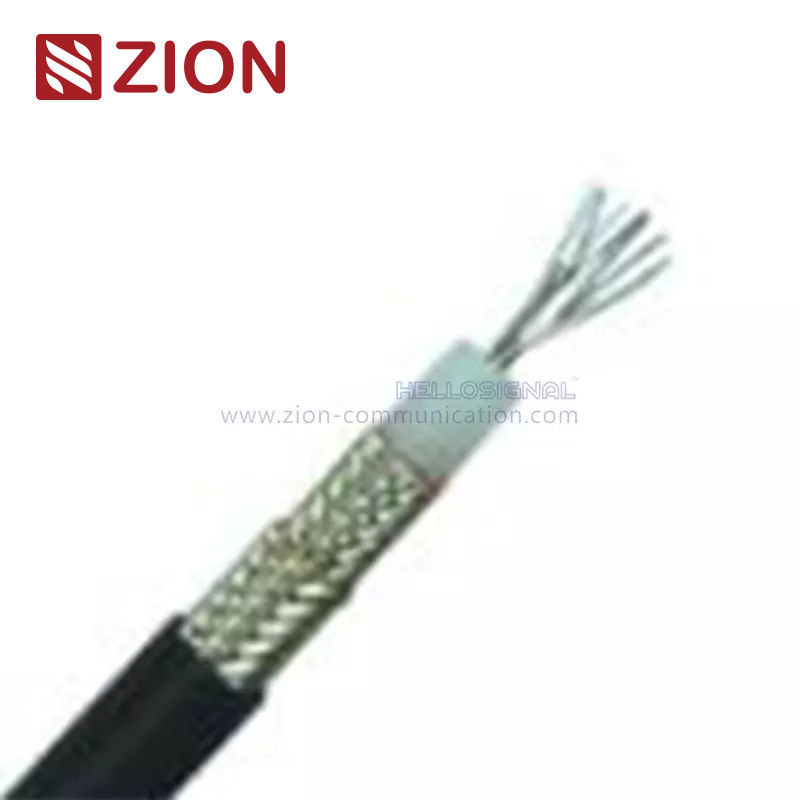

RG 214 Coaxial Cable

Construction Parameters:
  Inner Conductor 7×0.752mm Silver Plated Copper
  Dielectric 7.24mm Solid PE
  Shield Nom. 8.40mm Double Silver Plated Copper
  Jacket 10.80mm PVC (Color by your choise)

Electrical Characteristics:
  Capacitance 101.05 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.66
  Max Operating Voltage(KVMS) 3.7
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  RoHS YES

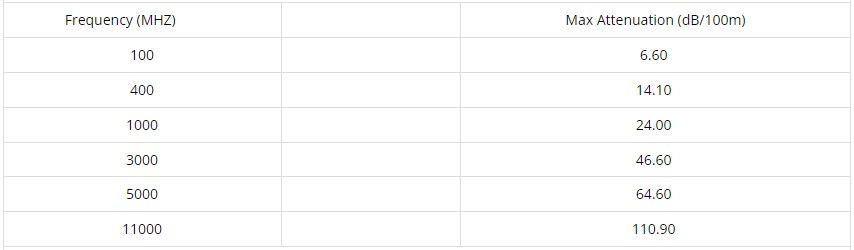

Attenuation(20℃):
Frequency (MHZ)
 Max Attenuation (dB/100m)
100
 6.60
400
 14.10
1000
 24.00
3000
 46.60
5000
 64.60
11000
 110.90

Order Informations:
  Marking HELLOSIGNAL RG 214 COAXIAL CABLE  XXX M  (or Per customer's request)
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNAL® OR OEM


Packing

100m roll plastic spool wooden spool
