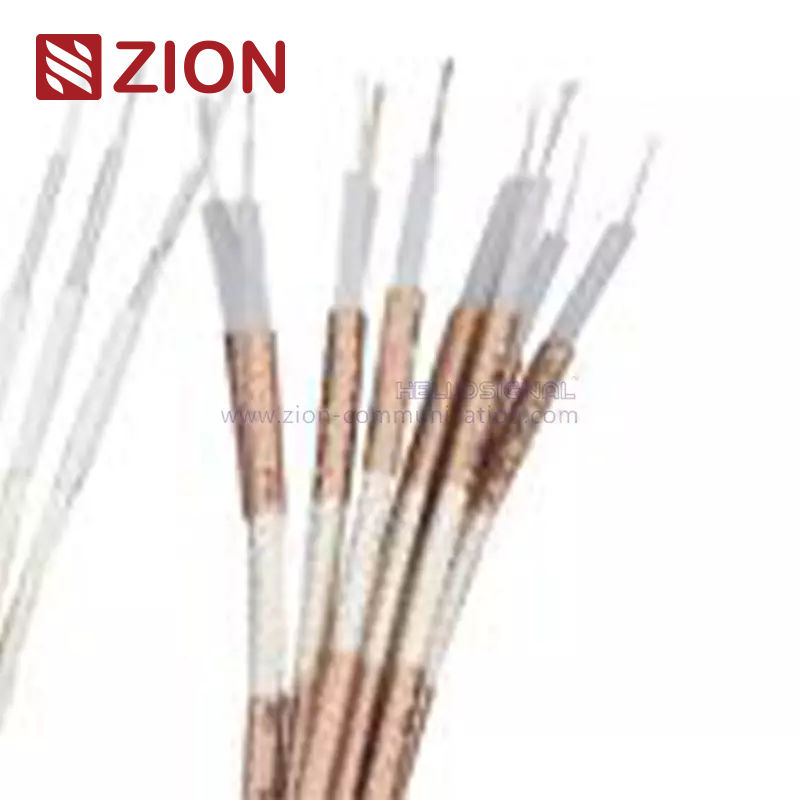

RG 303 Coaxial Cable

  • RG 303

  • hellosignal

  • XT0412

Availability:

Specification

RG 303 Coaxial Cable

Construction Parameters:
  Inner Conductor 0.93mm Silver Plated Copper Clad Steel
  Dielectric 3.00 PTFE
  Shield Nom. 3.50mm Silver Plated Copper
  Jacket 4.32mm FEP (Color by your choise)

Electrical Characteristics:
  Capacitance 96.45 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.7
  Max Operating Voltage(KVMS) 1.4
  Operating Temp Range  (PVC) -55 ℃ to 200℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)
 Max Attenuation (dB/100m)
100
 12.50
400
 25.60
1000
 42.00
3000
 78.10

Order Informations:
  Marking HELLOSIGNAL RG 303 COAXIAL CABLE  XXX M  (or Per customer's request)
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNAL® OR OEM


Packing

100m roll plastic spool wooden spool
