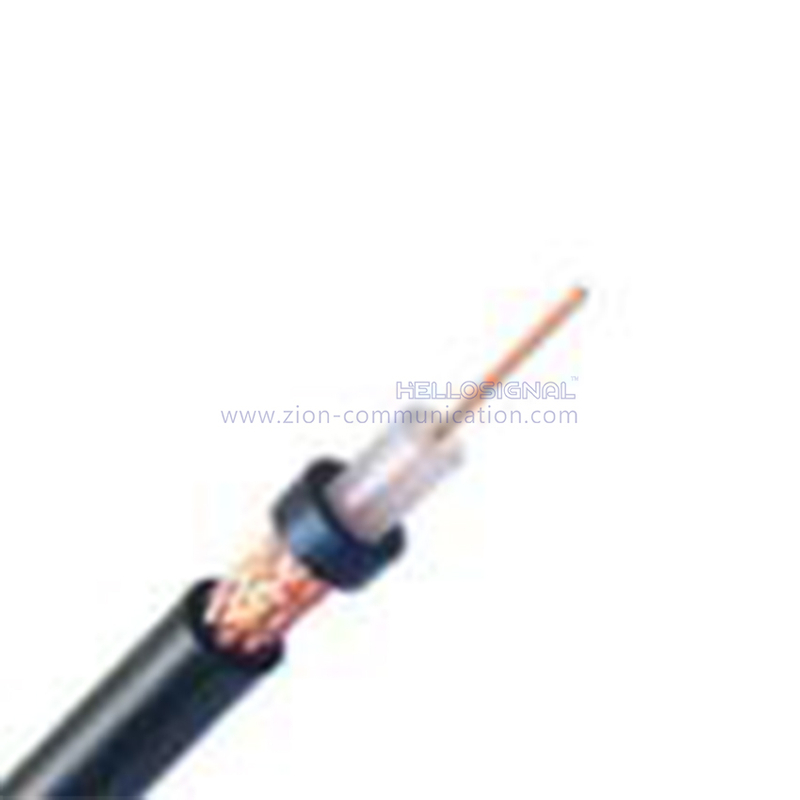

RG 58 Coaxial Cable

  • RG 58

  • hellosignal

  • XT0402

Availability:

Specification

RG 58 Coaxial Cable

Construction Parameters:
  Inner Conductor 19×0.18mm Tinned Copper/Bare Copper
  Dielectric 2.95mm Solid PE
  First Shield Nom. 3.50mm Tinned Copper/Bare Copper
  Jacket 4.95mm PVC (Color by your choise)

Electrical Characteristics:
  Capacitance 101.05 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.66
  Max Operating Voltage(KVMS) 1.4
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)
 Max Attenuation (dB/100m)
100
 15.10
400
 30.80
1000
 50.20

Order Informations:
  Marking HELLOSIGNAL RG 58 COAXIAL CABLE  XXX M  (or Per customer's request)
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNAL® OR OEM


Packing

100m roll plastic spool wooden spool
