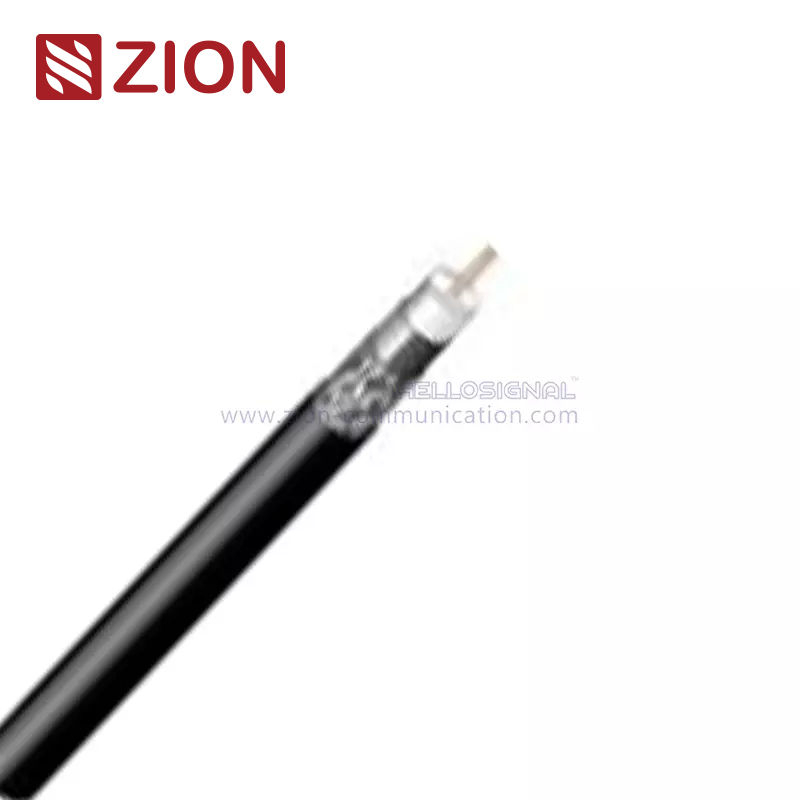

RG 8/X Coaxial Cable

  • RG 8/X

  • hellosignal

  • XT0401

Availability:

Specification

RG 8/X Coaxial Cable

Construction Parameters:
  Inner Conductor 19×0.287mm Stranded Annealed Copper
  Dielectric 3.94mm Foamed PE
  Second Shield 95% Coverage  TC/TCCA
  Jacket 6.15mm PVC (Color by your choise)

Electrical Characteristics:
  Capacitance 81.4 pF/m
  Impedance 50 +/-2 Ω
  Velocity of Propagation  0.82
  Max Operating Voltage(KVMS) 1.1
  Operating Temp Range  (PVC) -40 ℃ to 70℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)
 Max Attenuation (dB/100m)
10
 2.90
100
 10.20
200
 14.80
400
 21.70
500
 26.00
700
 29.90
900
 35.10

Order Informations:
  Marking HELLOSIGNAL RG 8/X COAXIAL CABLE  XXX M  (or Per customer's request)
  Inner Package 305m/Spool (or Per customer's request)
  Outer Package Carton, Pallet (or Per customer's request)
  Delivery time Normally 25 days after received the deposit.
  More informations  please contact with us.
  Brand HELLOSIGNAL® OR OEM

Packing

100m roll plastic spool wooden spool
