Author: Site Editor Publish Time: 09-01-2026 Origin: Site
A practical guide for understanding shielded Ethernet cable grounding, when STP/FTP cable is useful, how grounding mistakes affect EMI protection, and what buyers should confirm before ordering.
Shielded Ethernet cable is useful in high-EMI environments, industrial networks, data rooms and long copper routes near power equipment.
Grounding matters because shielding only works properly when the complete system is designed and installed correctly.
Do not mix shielded cable with unshielded connectors or random grounding practices. The cable, plug, patch panel, cabinet and grounding path should be treated as one system.
Shielded Ethernet cable is designed to reduce electromagnetic interference, but the shielding layer must be part of a proper grounding system. If grounding is missing, inconsistent or poorly designed, the shield may provide limited benefit and may even introduce installation problems.
For most office networks, UTP cable is often sufficient. For industrial automation, data centers, PoE-heavy systems, outdoor equipment, machinery areas or routes near motors and power cables, shielded cable such as F/UTP, U/FTP or S/FTP may be a better choice.
Choose shielded Ethernet cable only when the full system is compatible: shielded cable, shielded connectors, shielded patch panel, grounded cabinet and a planned grounding path.
Shielded Ethernet cable uses foil, braid or both to reduce noise entering or leaving the cable. The shield works best when unwanted electrical noise has a controlled path away from the signal pairs. Grounding provides that path.
Grounded shielding helps reduce interference from motors, power cables, VFDs, lighting systems and industrial equipment.
A properly installed shielded system can improve link stability in noisy environments.
Shielding must be continuous through connectors, patch panels and cabinets to work as intended.
Many buyers use “STP” as a general name for shielded Ethernet cable, but shielded cable structures can be different. The right structure depends on EMI level, cable category, installation environment and budget.
| Cable Type | Shielding Structure | Typical Use | Buyer Reminder |
|---|---|---|---|
| UTP | No overall shield | General office and low-EMI environments | Simpler installation, no shield grounding required. |
| F/UTP | Overall foil shield around all pairs | Commercial buildings, moderate EMI, Cat6A projects | Needs shielded connectors and grounding continuity. |
| U/FTP | Individual foil shield around each pair | High-performance links and crosstalk control | Termination quality is important. |
| S/FTP | Overall braid plus individual pair foil | Industrial, high EMI and demanding installations | Higher protection, but requires careful grounding and handling. |
| STP | General term often used for shielded twisted pair | Broad buyer language for shielded Ethernet cable | Always confirm the exact construction, not only the word “STP”. |
Shielded Ethernet cable should be selected based on actual interference risk, not only because it sounds more professional. In low-noise office environments, UTP may be easier and more cost-effective. In noisy or mission-critical environments, shielding can provide useful protection.
| Application Scenario | Shielded Cable Recommended? | Reason | Check Before Ordering |
|---|---|---|---|
| Standard office desk network | Usually not required | Low EMI and simpler installation. | Confirm building requirements and cable category. |
| Factory automation cabinet | Often recommended | Motors, relays and control equipment can create noise. | Connector type, grounding point and cable jacket. |
| Cable route near power line | Recommended if separation is limited | Higher interference exposure. | Maintain separation and grounding continuity. |
| Data center high-density Cat6A | Depends on design | Shielding can help with alien crosstalk and EMI control. | Patch panel, rack grounding and cable management. |
| Outdoor or security network | Often useful depending on environment | Long runs, lightning exposure and equipment grounding need attention. | Surge protection, jacket type and bonding strategy. |

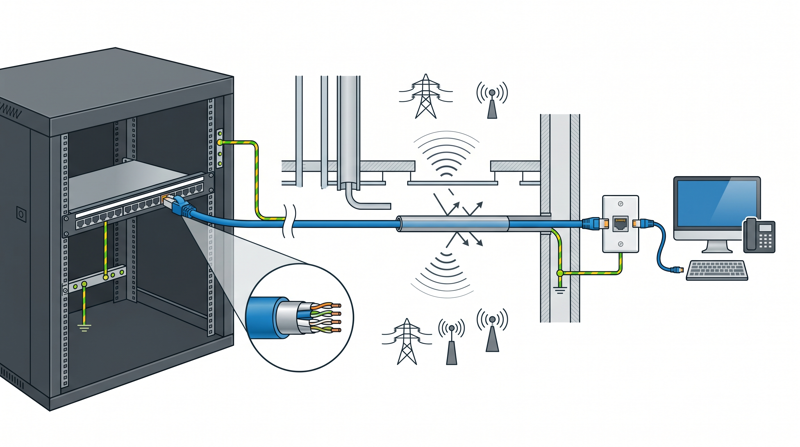

A shielded Ethernet link is not only a cable. It is a system. The cable shield should connect through shielded plugs or jacks, shielded patch panels and grounded racks or cabinets. The goal is to maintain a continuous shield path without damaging data transmission quality.
The foil or braid must be properly prepared during termination and not cut away incorrectly.
RJ45 plugs, keystone jacks and patch panels should support shield contact continuity.
The rack or cabinet should be bonded to the building grounding system according to project rules.
Grounding design should follow local electrical codes, building standards and project engineering requirements. For complex sites, confirm with a qualified electrical or low-voltage engineer.
Many shielded cable problems are not caused by the cable itself. They are caused by mixed components, poor termination or an unclear grounding strategy.
| Mistake | What Happens | Risk | Better Practice |
|---|---|---|---|
| Shielded cable with unshielded connectors | Shield continuity is interrupted. | Reduced EMI protection. | Use compatible shielded plugs, jacks and patch panels. |
| Cabinet not grounded | Shield has no clear reference path. | Unstable protection and possible noise issues. | Bond the rack or cabinet according to project grounding design. |
| Poor shield termination | Foil or drain wire is cut, loose or not contacted correctly. | Inconsistent shielding performance. | Follow connector preparation instructions carefully. |
| Mixed grounding practices | Different sections are bonded inconsistently. | Troubleshooting becomes difficult. | Define grounding responsibility before installation. |
| Choosing shielded cable without EMI need | Higher cost and more installation complexity. | No real benefit if system is not installed correctly. | Use shielded cable where the environment justifies it. |
For B2B buyers, shielded Ethernet cable selection should not stop at cable category. The full link components, installation environment and grounding method should be confirmed together.
| Buyer Checkpoint | What to Confirm | Why It Matters |
|---|---|---|
| Shielding Type | F/UTP, U/FTP, S/FTP or other construction | Different structures provide different EMI and crosstalk protection. |
| Cable Category | Cat6, Cat6A, Cat7 or project-specific requirement | Performance target must match equipment and channel design. |
| Connector Compatibility | Shielded RJ45 plug, keystone jack and patch panel | Unshielded parts break shield continuity. |
| Grounding Plan | Rack bonding, cabinet grounding and building grounding path | Grounding must be designed, not guessed during installation. |
| Installation Environment | Office, factory, data center, outdoor, marine or security system | Environment determines jacket, shield, connector and testing requirements. |
Use the following risk guide to evaluate whether shielded Ethernet cable is being applied correctly.
Shielded cable, shielded connectors, shielded patch panel, grounded cabinet and clear project grounding plan.
Shielded cable is selected, but connector type, cabinet bonding or installer method is not fully confirmed.
Shielded cable is mixed with unshielded hardware, shield is cut away, cabinet is not grounded or no grounding plan exists.
Shielded Ethernet cable should be selected as a complete system solution. If the environment does not require shielding, UTP may be simpler. If the environment does require shielding, grounding and component compatibility are not optional.
| Project Situation | Recommended Choice | Reason | Buyer Checkpoint |
|---|---|---|---|
| Normal office network | UTP Cat6 or Cat6A | Lower EMI and easier installation. | Confirm cable category and fire rating. |
| Factory control cabinet | Shielded industrial Ethernet cable | Higher EMI from machines and control equipment. | Confirm M12/RJ45 connector, jacket and grounding point. |
| Cat6A data center cabling | UTP or shielded depending on design | Both can work if installed correctly. | Confirm patch panel type and rack grounding if shielded. |
| Cable route near power equipment | Shielded cable plus pathway separation | Shielding helps, but physical separation is still important. | Check tray layout, grounding and surge protection if needed. |
| Outdoor security or remote device | Shielded outdoor cable when required | Long runs and outdoor exposure increase risk. | Confirm UV jacket, waterproofing, surge protection and bonding method. |
If you choose shielded Ethernet cable, choose a shielded system. Cable alone is not enough. Connector, patch panel, cabinet, grounding and installation quality must all match.
Yes, shielded Ethernet cable should be part of a properly grounded and bonded system to provide effective EMI protection.
It is not recommended because unshielded plugs can interrupt shield continuity and reduce the value of using shielded cable.
Choose shielded cable for high-EMI areas, industrial cabinets, routes near power equipment, demanding Cat6A systems or project specifications requiring shielding.
No. Shielded cable can provide benefits in noisy environments, but it is more complex to install and may not be necessary for normal office networks.
The shielding may not work as intended, and troubleshooting can become difficult if components and grounding are inconsistent.
Specify cable category, shielding structure, jacket material, connector type, patch panel type, grounding requirement and test standard.
ZION Communication can support Cat6, Cat6A, shielded Ethernet cable, patch cords, patch panels, keystone jacks and customized copper cabling solutions for data centers, industrial networks, security systems and OEM projects.
