Author: Will Publish Time: 19-01-2026 Origin: Site
In 2026, Ethernet links often carry multi-gig data (2.5G/5G/10G+) and PoE++ power (up to 90W) inside dense pathways. That makes shielding and grounding a system decision—also a thermal management decision. This guide standardizes terminology (ISO/IEC), explains DC Resistance Unbalance (DCRU), and provides field-proven rules to reduce EMI risk, temperature rise, and troubleshooting costs.
Cat 6A is the minimum baseline for Wi-Fi 7 backhaul and PoE++ design headroom.
Shielding is also thermal management: braid/foil layers help spread heat and reduce bundle hot-spots under PoE++.
For 10G+ channels, use equipotential bonding at both ends (panel/rack/building grounding system) to make shielding predictable.
In 2026, Ethernet channels are increasingly designed for high-frequency signaling (10G+) and high power (PoE++ up to 90W), often inside dense cable trays, risers, and above-ceiling pathways. That raises three practical engineering risks: (1) EMI instability, (2) heat accumulation in bundles, and (3) inconsistent grounding.
Most “shielded cable failures” are actually system failures: shield continuity breaks at patching, racks are not bonded, or PoE bundles trap heat. Symptoms often appear as intermittent drops, CRC errors, unstable link negotiation, or PoE device resets.
Treat shielding/grounding as a channel architecture decision: cable + connectors + patch panel + rack bonding + equipotential grounding. If any link is missing, shielding becomes unpredictable and troubleshooting costs explode.
To reduce miscommunication in international projects, this guide uses ISO/IEC-style abbreviations. These names describe overall shielding and pair shielding clearly.
| Common Name | ISO/IEC Term | Overall Shield | Pair Shield | Typical 2026 Use |
|---|---|---|---|---|
| UTP | U/UTP | None | None | Clean office, low EMI, moderate density |
| FTP | F/UTP | Foil | None | Wi-Fi 7 APs, PoE++ endpoints, mixed pathways |
| — | U/FTP | None | Foil (each pair) | High density with OD control; installers favor flexibility |
| S/FTP | S/FTP | Braid | Foil (each pair) | Data centers, industrial EMI, maximum stability |
In dense pathways, interference is not only “external noise.” Alien crosstalk and common-mode noise rise as bundles grow. Simultaneously, PoE++ increases bundle temperature, which raises insertion loss and accelerates material aging.
Shielding is a dual-purpose tool in 2026: EMI control + heat spreading. The shield layer (especially S/FTP braid) can act like a distributed heat spreader, lowering hot-spots in the bundle core under sustained PoE++ load.
PoE heat is generated primarily by I²R losses (current squared times DC resistance). In large bundles, center cables see the highest temperature rise. Shield designs often improve geometry consistency and help spread heat—reducing risk where customers care most: the bundle core.
DC Resistance Unbalance (DCRU) means different pairs have different DC resistance. Under PoE, that creates uneven current distribution, localized heating, and reduced efficiency. In 2026 PoE++ deployments, DCRU becomes a practical differentiator—not just a lab metric.
Many “mystery PoE resets” trace back to a combination of bundle heat + resistance imbalance + marginal termination. The link may pass continuity tests but fail under sustained load.
Shielded constructions (F/UTP, U/FTP, S/FTP) often provide tighter pair geometry and better consistency, improving PoE thermal stability—especially in dense installations.

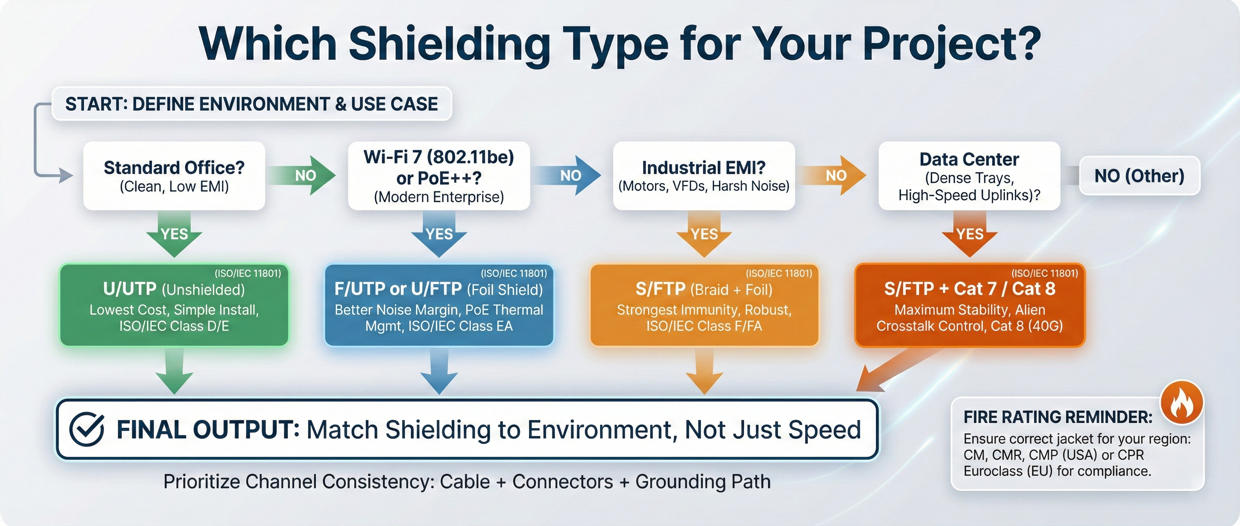

Use these shortcuts to reduce decision time, control risk, and align procurement with 2026 performance expectations. The key is to bind shield type to category and to the site environment.
| Environment / Application | Recommended Type | Recommended Category | Why (2026 Drivers) | Risk If Mis-Selected |
|---|---|---|---|---|
| Standard office (low EMI) | U/UTP | Cat 6 | Low cost, simple installation | Limited upgrade headroom |
| Wi-Fi 7 / backbone uplinks | F/UTP (FTP) | Cat 6A (Minimum) | 10G margin + alien crosstalk control | Heat/EMI instability, earlier replacement |
| High density pathways (OD control) | U/FTP | Cat 6A | Pair shielding with manageable outer diameter | Alien crosstalk + harder troubleshooting |
| Industrial automation / harsh EMI | S/FTP | Cat 7 / Cat 8 | Maximum EMI immunity + channel stability | Intermittent errors near motors/VFDs |
| Data centers (dense trays) | S/FTP | Cat 7 / Cat 8 | Highest margin for dense routing + noise control | Unpredictable performance at scale |
In 2026, Cat 6A is the baseline for Wi-Fi 7. As Cat 6A UTP designs grew in outer diameter, many projects shift toward F/UTP Cat 6A to control size while improving EMI/thermal margin.
For modern high-frequency Ethernet (10G and above), shielding effectiveness depends on a predictable reference. In most professional deployments, the recommended approach is equipotential bonding at both ends—meaning the shield is bonded through the structured cabling hardware into the building’s equipotential grounding system.
“Single-end grounding” is often applied inconsistently on site. What teams call “avoiding ground loops” becomes “floating shields,” leading to unpredictable EMI behavior—especially with dense Wi-Fi 7/PoE++ pathways.
For 10G+ channels, implement shielding with both-end equipotential bonding (bonded racks/panels tied to the same grounding system). Shielding must be continuous end-to-end across cable, connectors, patch panels, and rack bonding hardware.
| Checkpoint | What “Good” Looks Like | Common Failure | Impact |
|---|---|---|---|
| Shield continuity | Shielded cable + shielded keystone + shielded panel | F/UTP cable + UTP patching/keystone | Shield becomes ineffective; troubleshooting complexity |
| Rack bonding | Bonded rack/cabinet to equipotential system | Floating rack; painted rails; missing bonding jumper | Unpredictable EMI behavior, intermittent errors |
| Termination quality | Stable 360° contact where applicable; minimal untwist | Loose drain contact; over-untwist at IDC | Crosstalk rise, link instability at scale |
| Equipotential ends | Both ends bonded via structured cabling architecture | “Grounding improvisation” to random metal points | Noise injection, inconsistent shield performance |
PoE++ increases current and therefore heat. The real-world risk is not one cable—it’s the bundle core. Thermal management is a pathway design problem: spacing, tray choice, bundling method, and cable construction all matter.
| Design Factor | Preferred Practice (2026) | Why It Matters | Procurement Note |
|---|---|---|---|
| Bundle size | Avoid tight bundles beyond 24–48 PoE++ cables without spacing/segmentation | Bundle core sees maximum temperature rise | Plan tray capacity + growth margin |
| Pathway | Prefer open trays over closed conduits for high-power links | Airflow controls hot spots | Verify code + pathway class |
| Ties | Use Velcro; avoid overtight zip ties | Crushing increases loss and heat | Include accessories in BOM |
| Cable construction | F/UTP or S/FTP for dense PoE++ pathways | Shield layers can help spread heat; better geometry consistency | Specify Cat 6A minimum for Wi-Fi 7 |
F/UTP cable + UTP patch cords everywhere: breaks shield continuity and can invalidate the grounding reference path, causing unpredictable EMI behavior.
Shielded cable with unbonded racks: a shield without equipotential bonding becomes electrically undefined.
Excessive untwist at terminations: shielding cannot compensate for poor termination geometry; crosstalk rises and 10G margin collapses.
Overfilled conduits and tight bundles: PoE++ heat accumulates in the bundle core; long-term reliability suffers.
“Minimum spec” category for Wi-Fi 7: design contradiction; plan Cat 6A as minimum baseline to avoid early rework.
At ZION COMMUNICATION, shielding is not a checkbox. It is a risk-reduction strategy that connects EMI stability, PoE++ thermal margin, maintainability, and future-proofing. In 2026 deployments, we generally recommend:
For Wi-Fi 7 and PoE++ projects, treat Cat 6A as the minimum category and choose F/UTP or U/FTP to control EMI and bundle thermal behavior. Move to S/FTP for data centers or harsh EMI zones where maximum margin is required.
Specify the full channel (cable + connectors + patch panels) and require consistent grounding architecture. This reduces “hidden costs” from field rework, intermittent faults, and post-handover downtime.
In 2026, Ethernet performance is defined by channel physics—frequency, EMI environment, PoE heat, and grounding architecture. To reduce risk and lifetime cost, follow three actionable steps: (1) baseline Cat 6A for Wi-Fi 7, (2) select shielding by EMI + bundle density, and (3) implement equipotential bonding at both ends with continuous shielded hardware.
Share your application details (Wi-Fi 7 / PoE++ power level / pathway type / bundle density / fire rating requirements). Our team will recommend the right cable construction (U/UTP, F/UTP, U/FTP, S/FTP) and category (Cat 6 / Cat 6A / Cat 7 / Cat 8) for stable, maintainable 2026 deployments.
