Author: James Publish Time: 23-03-2026 Origin: Site

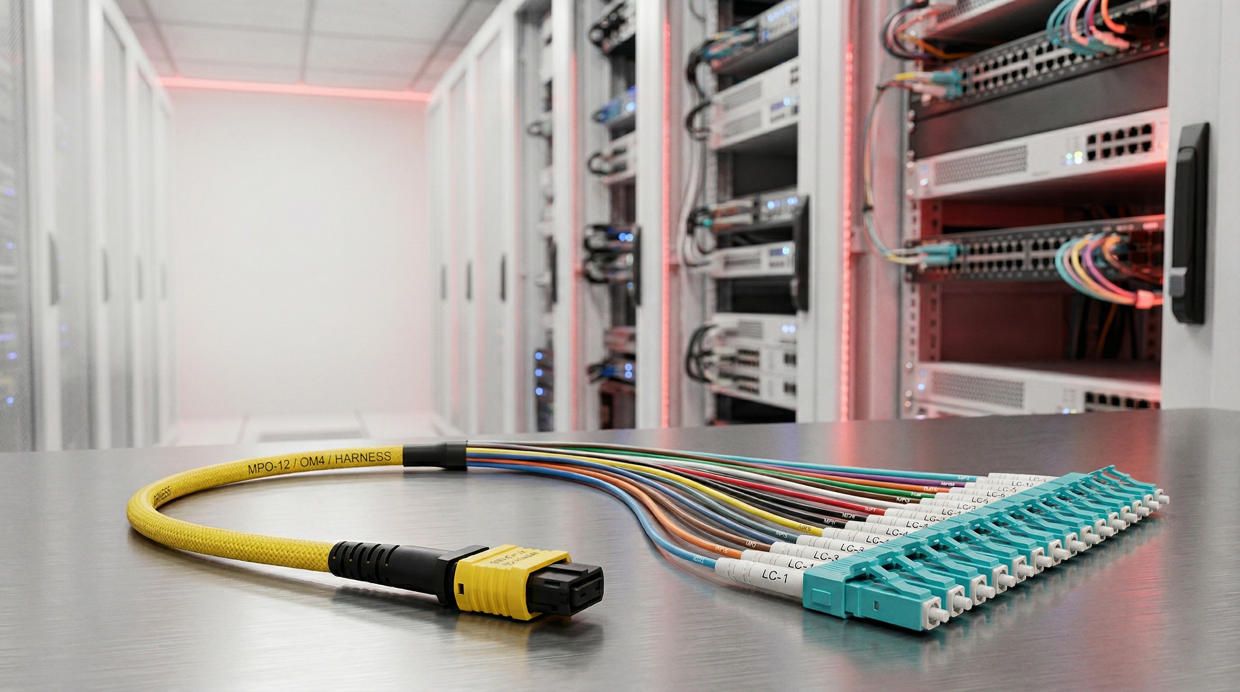

Learn how an MPO harness cable works, how MPO to LC breakout assemblies are mapped, and how engineers can choose the right branch structure for density, compatibility, maintenance, and deployment efficiency.
An MPO harness cable converts one multi-fiber MPO connector into multiple LC connections for practical equipment-side patching.
The right choice depends on fiber count, polarity, connector gender, branch structure, and routing environment.
Most deployment issues come from polarity mismatch, incorrect pin configuration, and branch design that does not match cabinet layout.

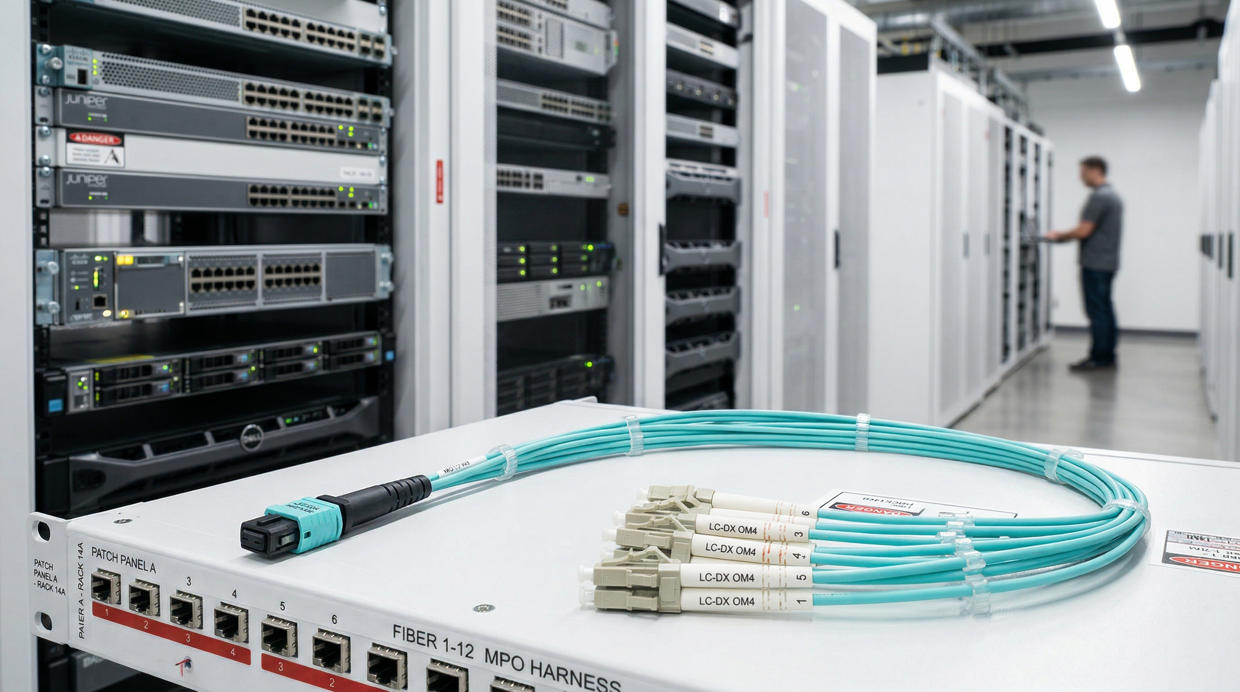

An MPO harness cable, also called an MPO breakout cable or MPO to LC harness, is a pre-terminated fiber assembly with an MPO connector on one side and multiple LC connectors on the other side. Its role is straightforward: it converts a high-density multi-fiber connection into several usable duplex or simplex optical links.
In structured cabling, the harness is often used at the transition point between backbone MPO infrastructure and equipment that still relies on LC interfaces. This makes it a practical deployment tool rather than a simple accessory. It affects density, labeling, maintenance time, and upgrade planning.
| Term | Meaning | Typical Use | Engineering Note |
|---|---|---|---|
| MPO Harness Cable | MPO on one end, multiple LC branches on the other | Backbone-to-equipment transition | Best when an MPO trunk must feed LC ports |
| MPO Breakout Cable | Alternative name for harness cable | Data center / cross-connect | Often used interchangeably with MPO harness |
| MPO Patch Cord | MPO connector on both ends | Direct MPO-to-MPO links | Not suitable when LC fan-out is required |
The most common structure is an MPO to LC breakout. One MPO connector aggregates multiple fibers in a single interface, while the opposite side separates those fibers into multiple LC terminations. Depending on network design, the harness may use LC duplex or LC simplex branches, equal leg lengths or custom staggered legs, and single mode or multimode fiber.
| MPO Fiber Count | Typical Breakout | Connector Style | Typical Environment | Notes |
|---|---|---|---|---|
| 8F | 4 × LC duplex | Duplex LC | 40G/100G breakout paths, compact racks | Common in modern parallel optics planning |
| 12F | 6 × LC duplex | Duplex LC | General structured cabling | Widely used where legacy LC ports remain |
| 24F | 12 × LC duplex | Duplex or simplex LC | High-density cabinets, cross-connect zones | Requires careful branch management and labeling |
The harness works by mapping fibers inside the MPO interface to individual LC terminations. Each LC duplex connector typically uses one transmit fiber and one receive fiber. The MPO end serves as the aggregated side; the LC branches serve as the usable link endpoints.
This sounds simple, but correct mapping depends on four variables: fiber count, polarity method, MPO gender, and connector labeling. If one of these is specified incorrectly, the harness may still look correct physically but fail logically in the channel.
| Variable | Why It Matters | Typical Error | Result in Field |
|---|---|---|---|
| Fiber Count | Determines number of LC links | Wrong expectation of usable duplex ports | Unused fibers or missing ports |
| Polarity | Ensures Tx/Rx alignment | Method mismatch across channel | Link failure despite correct installation |
| MPO Gender | Must match mating interface | Male-to-male or female-to-female conflict | Physical connection blocked |
| Branch Labeling | Supports serviceability and tracing | Unlabeled or inconsistent leg ID | Longer maintenance and higher human error rate |
Most harness-related problems are not caused by optical loss alone. They usually come from planning assumptions that ignore routing, polarity, or maintenance behavior after deployment. This is why harness design should be reviewed at the same stage as rack layout and port allocation.
| Mistake | Immediate Impact | Long-Term Cost | Recommended Control |
|---|---|---|---|
| Ignoring polarity review | Non-working links | Retest, replacement, downtime | Confirm full channel polarity method before PO |
| Selecting wrong branch length | Cabinet congestion | Poor airflow, bent fibers, messy service loops | Map branch exit point to actual port geometry |
| Using excessive density without labeling discipline | Harder tracing | Longer maintenance windows | Require branch IDs, port map, and color logic |
| Treating harness and transceiver compatibility as separate tasks | Connector mismatch or wrong media plan | Redesign during installation | Review optics, patching path, and harness as one decision set |
The fastest way to select an MPO harness cable is to start from the equipment side, not the trunk side. First determine how many LC ports must be served, then verify trunk fiber count, polarity method, and branch routing constraints. This prevents overbuying density that cannot be maintained cleanly.
| Decision Situation | Choose This | Why | Watch Out For |
|---|---|---|---|
| Need a simple MPO-to-LC transition for standard equipment ports | 12F MPO to 6 × LC duplex | Balanced density and manageable routing | Confirm polarity and branch labeling |
| Need compact breakout for fewer high-value links | 8F MPO to 4 × LC duplex | Cleaner routing and lower port complexity | Check if future expansion needs higher count |
| Need maximum cabinet density | 24F MPO to 12 × LC duplex | Reduces trunk count and saves panel space | Requires disciplined labeling and bend management |
| Need easiest maintenance access | Lower fiber count with custom branch lengths | Improves traceability and serviceability | May use more overall rack space |
| Need procurement simplicity across repeated builds | Standardize one approved mapping set | Reduces ordering error and lead-time confusion | Do not standardize without validating real cabinet geometry |
MPO harness assemblies are widely used where a high-density trunk must connect to devices, patch panels, or zones that remain LC-based. The selection criteria vary by environment. In some cases, serviceability matters most. In others, panel density or rollout speed becomes the main driver.
| Application | Why Harness Is Used | Selection Priority | Main Risk |
|---|---|---|---|
| Data center cabinets | Transition from MPO trunks to LC optics | Density and routing control | Branch congestion near active ports |
| Structured cabling backbone | Simplify distribution from backbone to edge patching | Channel compatibility | Polarity mismatch across segments |
| Test lab / cross-connect | Flexible port reassignment | Labeling and quick traceability | Wrong reconnection during frequent changes |
| Telecom / enterprise rooms | Combine efficient trunking with legacy LC access | Maintenance simplicity | Overly dense design without service margin |
Typical internal links for buyers and designers reviewing this topic include MPO Fiber Solutions, MPO to LC Breakout inquiry support, MPO Patch Cord, and Contact.
An MPO harness cable has an MPO connector on one end and multiple LC connectors on the other, while an MPO patch cord typically has MPO connectors on both ends. Use a harness when you need to break out a high-density MPO link into LC equipment-side connections.
Start with the number of LC links required, then review cabinet routing space, polarity method, and maintenance expectations. Higher fiber counts improve density, but they also demand stronger labeling discipline and better bend-radius control.
Compatibility depends on more than connector type. You must confirm fiber type, polarity method, MPO gender, endface condition, and how the harness fits the full channel. Physical fit alone does not guarantee a working optical link.
The largest hidden costs usually come from incorrect polarity, wrong branch length, poor labeling, and redesign during installation. The product cost itself is only one part of the decision. Labor and rework exposure often matter more.
Yes. Many projects require custom branch lengths, branch identification, fiber type selection, and specific MPO gender or polarity configuration. Customization should be based on actual cabinet geometry and channel logic, not only on nominal connector count.
Yes. Factory testing for continuity, insertion loss, polarity, and connector quality is strongly recommended. For larger projects, match test documentation to the exact configuration being ordered so procurement and engineering teams can verify consistency.
An MPO harness cable is a practical transition assembly that connects high-density MPO infrastructure to usable LC-based equipment interfaces. For engineering teams, the correct choice is rarely about connector conversion alone. It is about matching density, polarity, routing, serviceability, and future upgrade logic.
The most effective purchasing approach is to specify the harness from the equipment side backward: required LC ports, fiber type, polarity method, MPO gender, branch lengths, and labeling rules. This reduces rework risk and makes the cable easier to deploy and maintain in real cabinets.
Send your required fiber count, connector type, polarity method, branch quantity, branch length, and application environment. A properly defined harness saves installation time and avoids channel-level compatibility errors later.
