Today, we have a rapid expansion of fiber optic communication network infrastructure in which the fiber cable management and safeguarding is of utmost importance. The latter guarantees reliable performance and future connection availability. The Optical Distribution Frame (ODF) is an important device that the fiber management relies upon most often.
Whether you are building a data center, deploying FTTx networks, or managing the telecom systems, the selection of suitable ODF is very important since the fiber connections are optimized and the network functions are streamlined.

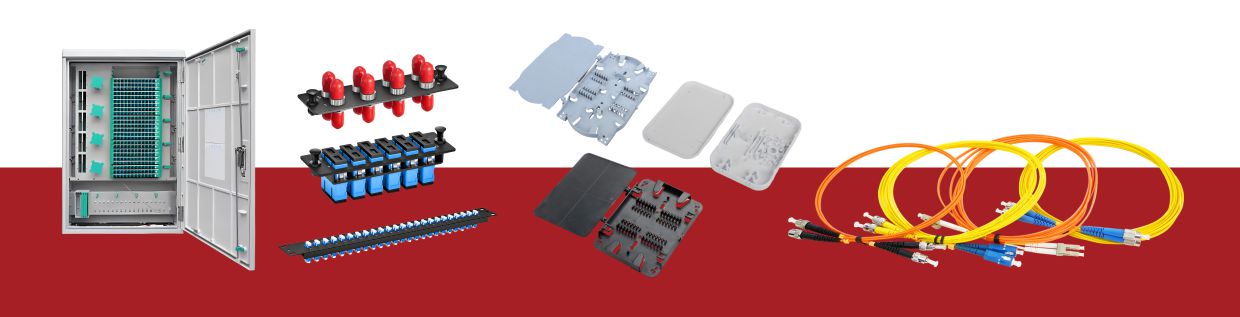

An ODF, or Optical Distribution Frame, which is also known as a fiber optic patch panel, is a kind of structure that comprises components for fiber splicing, termination, interconnection, and cabling management-merged in one unit. It serves as the center of consolidation for the optical fibers, which are organized, secured, routed, and plugged in the optical distribution frame.
Typical ODF Applications Include:
Central Offices and Telecom Exchanges
Data Centers and Colocation Facilities
FTTH (Fiber To The Home) and FTTB (Fiber To The Building) Access Nodes
Mobile Switching Centers
Industrial Automation and Security Systems

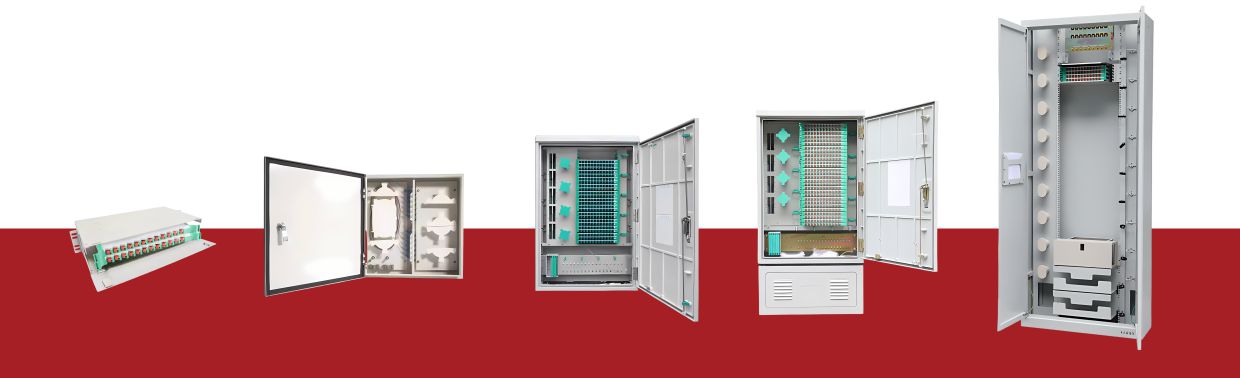

■ Types of ODF Optical Distribution Frame
Criteria | Wall-Mount ODF | Floor-Mount ODF | Rack-Mount ODF |
Best Use Case | Small-scale setups (e.g., offices, small telecom rooms) | Medium to large installations with fixed capacity | High-density data centers, |
Fiber Count | Low (12–24 ports) | Medium (24–96 ports) | High (24–144+ ports, customizable) |
Scalability | Limited | Moderate | High (modular design) |
Installation | Wall-mounted, compact, weather-resistant options | Floor-standing, closed structure | 19" rack, 1U–4U, modular or pre-assembled |
Manageability | Basic cable management | Moderate, with fixed routing | Advanced, with clear routing and access |
Protection Features | Dust-proof, small footprint | Lockable, robust structure | Lockable doors, dust/stress protection |
Recommended Accessories | - Splice trays (12-core) | - Splice trays (24-core) | - High-density splice trays (24–48 core) |
Example Applications | Small office networks, FTTH | Enterprise networks, | Data centers, |

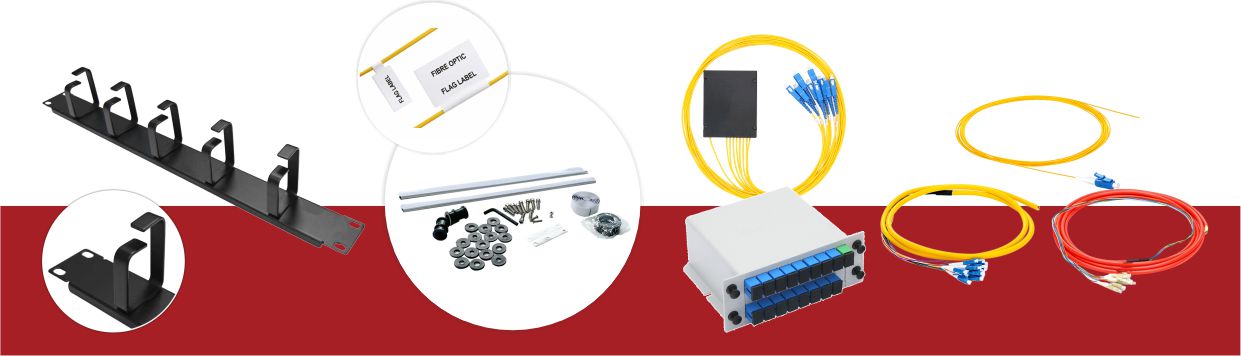

Accessory | Purpose |
Various connector types (SC, LC, ST, FC, MTP/MPO), chosen based on network needs | |
Pre-terminated fiber strands used for splicing with bare fiber and connecting to adapters | |
Cable Management Rings/Organizers | Maintain neat and secure routing of fiber patch cords inside/outside the ODF |
Labels/Markers | Clear identification for fiber ports and cables, aiding management and troubleshooting |
Dust Caps | Protect unused adapter ports from dust and contaminants |
Fiber Splice Trays (optional) | Additional or specialized trays to expand splice capacity or for specific installation needs |
Patch Cords / Jumpers | External fiber cords connecting ODF to active network devices |
Fasteners & Mounting Kits | Ensure stable and secure physical installation of the ODF |
Grounding Wires | Provide electrical safety grounding for the ODF enclosure |
Enable signal splitting and multiplexing functions inside the ODF |
The size of your network, the fiber types you are using, the conditions where the network is being installed, and the possible growth of the network in the future, are parameters influencing the selection of the proper ODF.
Find out how many cores to be dealt with? The ODFs can have various sizes; for example, the small has 12 fibers while the medium 48 or the very high density with more than 144 fibers. Modular designs facilitate easy expansion.
Make sure the ODF supports your connectors:
Standard interfaces: SC/UPC, SC/APC, LC/UPC, LC/APC, FC, ST, MT-RJ
Adapter colors:
Color | Connector Type | Polish Type |
Blue | SC, LC | UPC |
Green | SC, LC | APC |
Beige | ST, FC | Multimode |
Separate access to the back and front ports.
Capacity of routing cable (cable bend radius respected) through the built-in guide paths.
Portsare sequentially numbered and tagged for quick identification.
Confirm whether the ODF has to be:
Rack-mounted ETSIL. mounting standard of 19"
Wall mounted (where else will it go?).
Floor-standing (where else can we put it on it?).
Flexibility is added in features like a removable side panel, an adjustable overlay, and rear cable entry.
In case of a dusty environmental or in semi-industrial environments, don't forget to provide sealed enclosures or locks as extra protection.
■ Recommended: Zion Communication Optical Distribution Frames
Zion Communication's range of the best ODFs available is as follows:

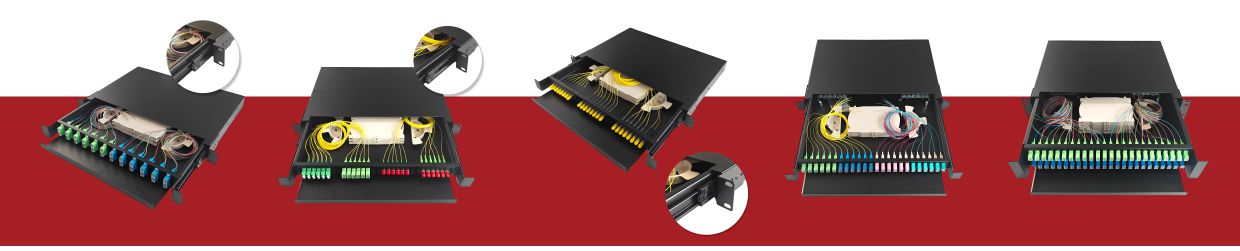

1U, 2U, 4U Rack Mount ODFs (fully loaded or empty), Wallmouint fiber boxes ideal for FTTH deployments, Configuration customized with SC, LC, FC, or MT-RJ.
Accessories are splice trays, pigtails, and patch cords.
With Zion Communication's ODF solutions, their installation, system integration, and distribution experience success thanks to durable design, efficient use of cable management, and OEM support, suitable for all network demand.
