G.657.A2 is usually the best-balanced fiber choice when micro cable diameter, small ducts, compact splice pits, and tight cable routing create real bend-risk during installation and maintenance. It gives more bend margin than G.652.D while staying aligned with broad access-network compatibility expectations, making it a practical engineering choice for dense FTTx, microduct, and compact closure designs.
Choose G.657.A2 when microduct space, closure size, or routing geometry is tighter than normal.
G.652.D is still acceptable where ducts and splice storage space are generous.
G.657.B3 is for more extreme bend cases, not the default answer for every micro cable project.
| Project Condition | Recommended Fiber Choice | Engineering Logic |
|---|---|---|
| Standard duct, normal closure size, gentle routing | G.652.D or G.657.A1 | Bend stress is moderate; A2 may not create enough extra value to justify the upgrade. |
| Microduct or reduced-diameter micro cable design | G.657.A2 | Better bend margin helps compact cable design and improves routing tolerance in smaller pathways. |
| Small splice pit with limited slack storage | G.657.A2 | Tighter loops and closure exits increase bend-loss risk; A2 provides more field margin. |
| Very tight indoor or near-end route with extreme bends | Evaluate G.657.B3 | B3 is for more extreme bend scenarios, but it is not the default answer for general OSP access design. |
| Broad mixed-network compatibility is the priority | G.657.A2 | A2 is usually the balanced choice when you want better bend performance without leaving the mainstream deployment logic. |
Small cables are not just normal cables made thinner. They are usually deployed in a different engineering context: narrower ducts, denser pathways, smaller access points, tighter closures, and less room for slack management. In these projects, attenuation risk often comes less from long transmission distance and more from physical geometry during installation, storage, and restoration.
That is why G.657.A2 matters. It is valuable when the route is physically constrained and when cable handling is more sensitive to bend loss. For compact access builds, the design question is not only “Will the link transmit?” but also “Can the cable be installed, stored, reopened, and expanded without creating avoidable loss or maintenance problems?”

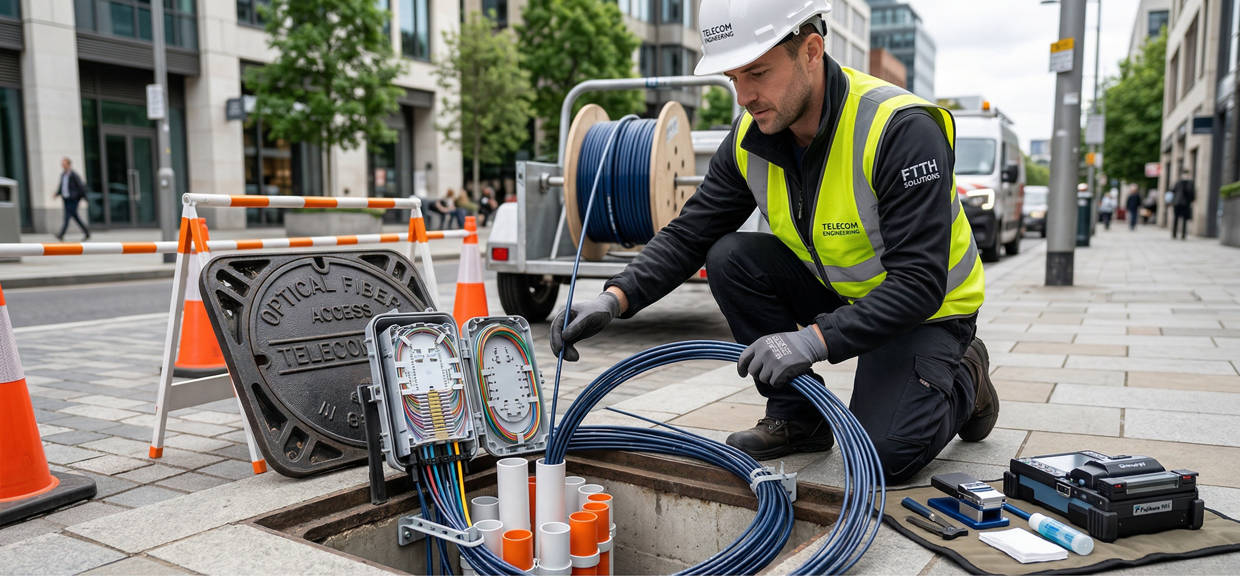

Small splice pits and microduct systems change the decision logic. Even if the route is short, the project can still become bend-sensitive because the cable must enter, turn, store slack, exit, and remain serviceable inside a much smaller physical envelope.
Limited slack storage space inside pits and closures
Tighter entry and exit angles at splice hardware
Higher cable packing density in microduct pathways
More difficult restoration work after re-entry
Greater risk of confusing fiber bend class with finished cable bend limits
| Challenge | What It Causes | Why A2 Helps |
|---|---|---|
| Compact slack loops | Higher localized bend-loss risk | More tolerance when storage geometry is tighter than planned |
| Small closure exits | Sharp cable routing at entry/exit points | Better fit for compact closure and tray routing |
| Dense microduct occupancy | Reduced design tolerance during install and upgrades | Supports compact cable structures more safely |
| Frequent restoration or re-entry | Repeated handling increases bend risk | Gives more maintenance margin over time |
| Misreading datasheets | Over-bending the finished cable | A2 helps, but still requires strict cable-level bend-radius control |
G.657.A2 supports compact cable design because it gives manufacturers and project engineers more usable bend margin inside a small cable architecture. That margin helps when the design target includes reduced cable diameter, tighter tray routing, smaller splice closures, and more efficient microduct occupancy.
In practice, A2 is often a better match for micro cable product development because compact designs create more physical stress concentration than conventional outside-plant builds. The fiber class does not remove cable design limits, but it allows the overall cable system to be less sensitive to real-world routing constraints.
G.652.D remains the baseline reference for many outdoor single-mode networks, and it is still the correct choice in many straightforward routes. But when the physical layout is more demanding than the transmission plan, G.657.A2 usually performs better as a deployment choice because it is more forgiving in tight bends, compact storage, and dense access hardware.
| Scenario | G.652.D | G.657.A2 | Better Engineering Choice |
|---|---|---|---|
| Normal duct route with comfortable closure space | Usually sufficient | Optional upgrade | G.652.D or A1 is often enough |
| Microduct with space pressure | Less forgiving | Better fit | G.657.A2 |
| Small pit with compact slack loops | Higher bend-loss risk | Safer margin | G.657.A2 |
| Dense access cable design | Harder to miniaturize | Better support for compact design | G.657.A2 |
| Maintenance-heavy or re-entry environment | More handling-sensitive | More forgiving | G.657.A2 |
G.657.B3 should be treated as a more specialized solution, not as the automatic upgrade path from A2. It is more suitable when bend conditions are exceptionally tight and unavoidable, especially in short-reach end sections, highly confined spaces, or route sections where compact geometry is more extreme than normal microduct or closure design.
For most compact OSP access projects, A2 remains the better default because it improves bend performance without pushing the design into a narrower use case. B3 becomes more reasonable when ultra-tight bends are the dominant design problem rather than just one of several constraints.
| Decision Question | If YES | If NO | Recommended Direction |
|---|---|---|---|
| Is cable diameter reduction a core design target? | Compact design matters | Standard OD is acceptable | Move toward G.657.A2 |
| Will the cable be installed in microducts or congested ducts? | Pathway space is constrained | Duct space is comfortable | Prefer A2 if constrained |
| Is closure or pit space tight enough to challenge loop storage? | Slack routing is compact | Storage geometry is generous | Prefer A2 when compact |
| Do you need broad deployment consistency? | Compatibility is important | More specialized spec is acceptable | A2 usually beats B3 |
| Are ultra-tight bends the dominant and unavoidable constraint? | Extreme geometry controls the design | Bends are tight but manageable | Evaluate B3 only in the extreme case |
Micro cable or reduced-diameter cable projects
Small ducts and microduct occupancy optimization
Compact splice pits and small closures
Access builds with dense cable routing
Projects expecting future re-entry or restoration work
When teams assume A2 removes all bend-radius concerns
When cable datasheets omit installed bend-radius values
When procurement only says “G.657” without subtype
When mixed indoor/outdoor use requires one simplified rule
Standard duct routes with comfortable closure space
Projects with generous bend control and low density
Designs without cable miniaturization goals
Simple routes where cost is tighter than geometry risk
A correct A2 decision should never be made from the fiber code alone. The finished cable structure determines what the field team can actually install and maintain. That is why engineers and buyers should read fiber standard, coating diameter, cable outer diameter, bend radius, duct fit, and closure compatibility as one connected design package.
| Datasheet Item | Why It Matters | What to Prefer for Compact Projects |
|---|---|---|
| Fiber standard | Defines bend-performance class and deployment position | Use G.657.A2 when route geometry is a real risk |
| Coating diameter | Affects compact cable architecture | Prefer smaller coating options when design miniaturization matters |
| Cable outer diameter | Controls duct fit and closure occupancy | Match OD to the real microduct and pit conditions |
| Installed bend radius | Governs real field handling after installation | Always check cable values, not only fiber classification |
| Installation bend radius | Affects blowing, pulling, and setup | Confirm the site team can actually meet the requirement |
| Closure and tray footprint | Determines maintenance usability | Review cable and closure as one system |
Read the fiber line and the cable line separately.
Do not assume “G.657.A2” means the finished cable can be bent to the same level as the bare fiber classification.
Check coating diameter, cable OD, installed bend radius, and installation bend radius together.
Verify duct fit, tray capacity, and closure routing before finalizing procurement.
| Common Mistake | Why It Is Risky | Better Decision |
|---|---|---|
| Assuming every micro cable should use B3 | Over-specializes the design and can complicate spec logic | Start with A2 for most compact access projects |
| Treating A2 as a substitute for cable bend control | Can still create hidden loss or mechanical stress | Enforce finished-cable bend-radius rules |
| Specifying only “bend-insensitive fiber” in procurement | Creates supplier ambiguity | Specify A2 or B3 clearly, plus cable constraints |
| Ignoring closure size during fiber selection | Creates restoration and re-entry problems | Review pit, tray, slack path, and cable together |
| Choosing only by distance | Misses the real risk in compact builds | Choose by geometry, density, and maintenance conditions |
For most micro cable, small duct, and compact splice-pit projects, G.657.A2 is the balanced engineering choice. It provides meaningful bend-loss protection where real field risk comes from limited space, tight routing, and long-term maintenance handling rather than from transmission distance alone.
Choose G.652.D when the route is physically forgiving and compact cable design is not a priority. Choose G.657.B3 only when ultra-tight bends are the dominant and unavoidable constraint. In most access and microduct projects, A2 is the practical default because it improves deployment tolerance without turning the design into a niche specification.
