Why FC Connectors Are Ideal for UAV Optical Links

■ Introduction: Precision Connections in Motion

A UAV underpinned optical communication system should have all components functioning perfectly in high dynamic vibration conditions. Whether it is for transmitting HD FPV video, collaborative control commands, or telemetry, the fiber link reliability becomes a key pillar for the entire system.

Among all the standard connector types used in UAV optical communication links, FC (Ferrule Connector) is superior in stability and precision. Provided with a threaded metal lock and rigid structure, the FC connectors ensure secure coupling in the event of high-speed flight or when sudden maneuvers happen.

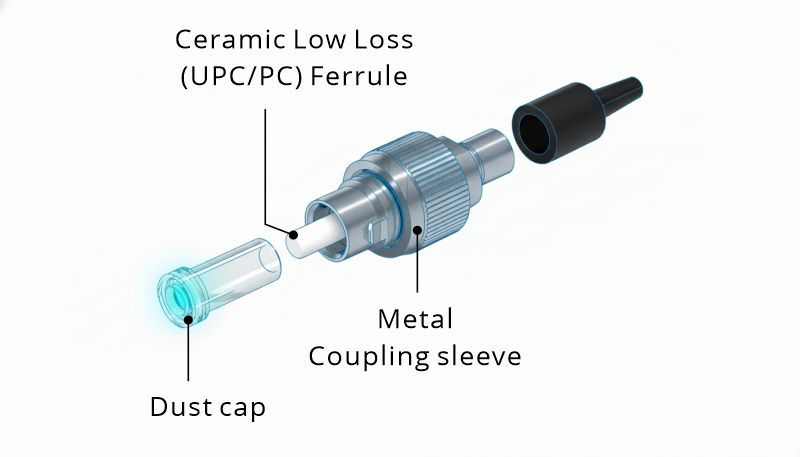

■ Structural Design: Built for Precision and Stability

The FC connector is one of the first optical connectors optimized for single-mode, high-accuracy communication. Its threaded coupling ferrules guarantee an accurate and stable alignment of the two connecting fibers that reduces the rate of connection loss and the slack between the two ferrules.

Key structural design elements include:

• Threaded Locking Mechanism:
  FC connectors have a variation in their locking mechanism; these adapters are held fast to the plug via a screw-type thread instead of the push-pull coupling used in SC/LC connectors. This ensures that the plug remains connected irrespective of vibration or movement.

• Housing of Metal Ferrule:
  The body is generally of steel or brass with nickel plating as the connectors are manufactured to provide mechanical strength of high standard, temperature stability, and resistance to wear.

• High-Precision Ceramic Ferrule (Ø2.5 mm):
  The ceramic ferrule is extremely precise for fiber alignment in the ferrule with < 0.3 dB insertion loss and < 50 dB back reflection.

The rigid construction ensures that this structure is capable of working under the conditions characterized by turbulent airflows (such as descending) or rapid acceleration.

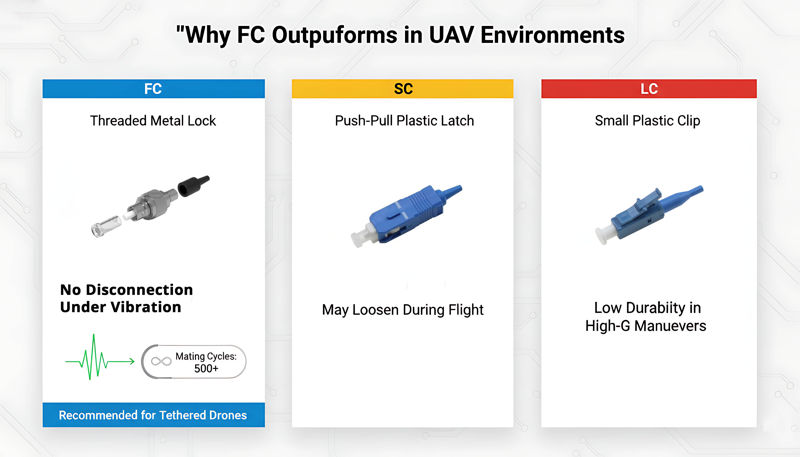

■ Why FC Outperforms SC and LC in UAV Environments

Although SC and LC connectors are ideally suited for telecom racks or fiber networks indoors, they may become loose in response to strong vibration or repeated movement.

FC connectors, however, are always internally locked and the optical path is still perfectly maintained. This fact makes them superior for high vibration applications such as drones, airborne sensors, and field-deployed fiber systems.

■ Reliability Under Flight Vibration and Motion

UAV fiber link systems, as ZION’s FPV Optical Fiber Kits, are subject to:

• Vibration from the drone motors

• Rapid altitude and course as they change quickly

• Thermal cycling and mechanical pressure.

The threaded, friction-lock nature of FC connectors absorbs vibration forces without causing micro-movement between the ferrules, keeping insertion and return loss stable even after hundreds of connection cycles.

Optical data transmission under these mechanical circumstances stays uninterrupted, with a high-speed rate that proves crucial in real-time FPV or surveillance missions.

■ Performance Optimization of FC Connectors in UAVs

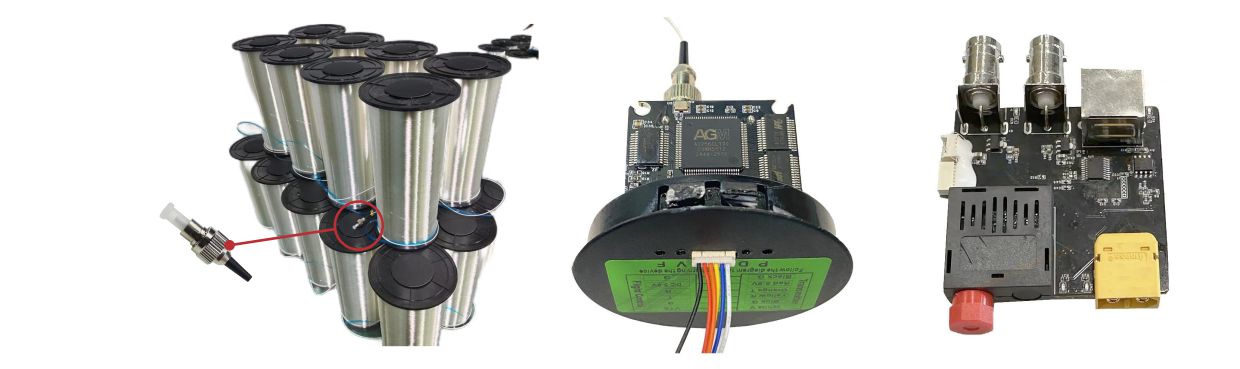

■ Integration in ZION FPV Optical Fiber Systems

FC connectors are utilized in ZION Communication FPV optical fiber release kits and UAV fiber assemblies in order to obtain the maximum reliability and precision.

Every connector is:

• Provided with factory-termination services and fully tested for insertion loss and reflection

• Polished with APC (8° angle) to minimize back reflections

• Placed in cases made of corrosion-resistant metal for use in outdoor and airborne applications.

ZION ensures the UAV operators employ zero-latency secure optical communication with FC-terminated ends and G.657A2 bend-insensitive fiber additions. This is true even in cases of tethered flight with prolonged distances.

■ Application Scenarios

• Tethered FPV Drones: Embed surveillance data and power line with 100% transmission rate and zero signal loss

• Aerial Surveillance and Law Enforcement: Achieve consistent operating time spell with no time loss on quests

• Industrial Inspection Drones: Carry out smooth and lasting connection in the event of vibration or dust exposure

• Scientific Observation Systems: Carry precision data transfer through extreme conditions.

The FC connector stands out as an ideal choice for not only motion but also precision environments of aircraft optical communication systems by exhibiting the strong character of stability, durability, and signal carrying capacity.

■ Conclusion: The Mechanical Edge of FC Connectors

For drone optical communication, the efficiency and reliability of a connector might be one of the most essential indicators for mission effectiveness. Connecting threaded locks and metal housing to high-precision ferrule alignment, FC connectors’ use give evidence of an atmosphere where stability is an unconditional requirement.

FC connections in ZION’s UAV Optical Fiber kits epitomize an engineering mission of uncompromising high-standard transmission and dependable connectivity, meaning that even at 120 km/h height in the air, all data sent using ZION are still available correctly at any point of movement.
