Cat6A vs Fiber: Where Copper Ends and Optical Begins

■1) Executive Summary

Cat6A and fiber are not “either-or.” Cat6A remains the most practical choice for 1G–10G powered access networks, while fiber becomes unavoidable once requirements exceed distance, bandwidth, EMI immunity, power efficiency, or scalability thresholds.    This guide clarifies exactly where copper ends and optical begins—using real engineering constraints including PoE and the true CAPEX cost structure of optics.

■2) Why “Cat6A vs Fiber” Is the Wrong First Question

Many projects start with “Should we use Cat6A or fiber?” The better question is:    What does this link need in speed, distance, power delivery, energy efficiency, and lifecycle scalability?    Copper and fiber serve different layers; problems happen when copper is pushed beyond its domain—or fiber is forced into roles where PoE and simple termination are the priority.

■3) What Cat6A Does Exceptionally Well

Cat6A is the peak of standardized twisted-pair copper for structured cabling. It supports 10GBASE-T up to 100 m and uses a mature RJ45 ecosystem (patch panels, keystones, field tools).    For access networks, it is fast, familiar, and cost-effective—especially where powered endpoints matter.

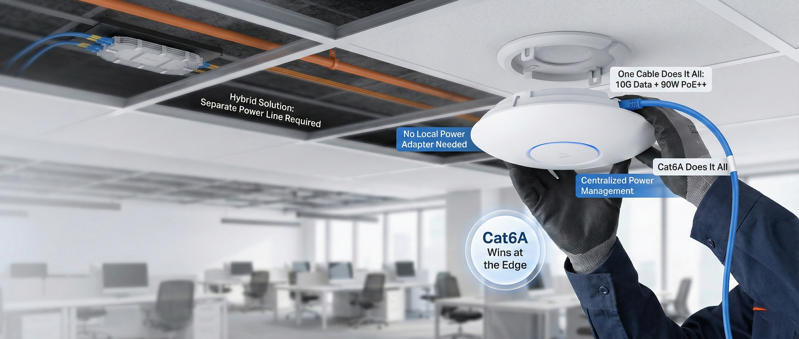

■4) PoE: Cat6A’s “Data + Power” Advantage

Bandwidth and distance are not the only requirements. In many real projects, power delivery is the deciding factor.    Cat6A supports mainstream PoE standards (PoE / PoE+ / PoE++), enabling a single run to deliver data + electrical power over RJ45.

■5) The Physical Limits of Cat6A

Cat6A’s limits are defined by physics. Beyond 10G, attenuation and crosstalk become increasingly hard to manage, and copper PHYs require heavier DSP and generate more heat.    This is why Cat6A is a structured cabling standard for 10G—not a path to 25G/40G/100G.

■6) Why “Just Use Better Copper” Doesn’t Work

Cat8 exists, but it is a niche tool: it supports 25G/40G only at short distances (commonly ≤30 m) and is designed for rack-level data center links—not building structured cabling.    Cat8 does not “extend” Cat6A; it targets a different layer and use case.

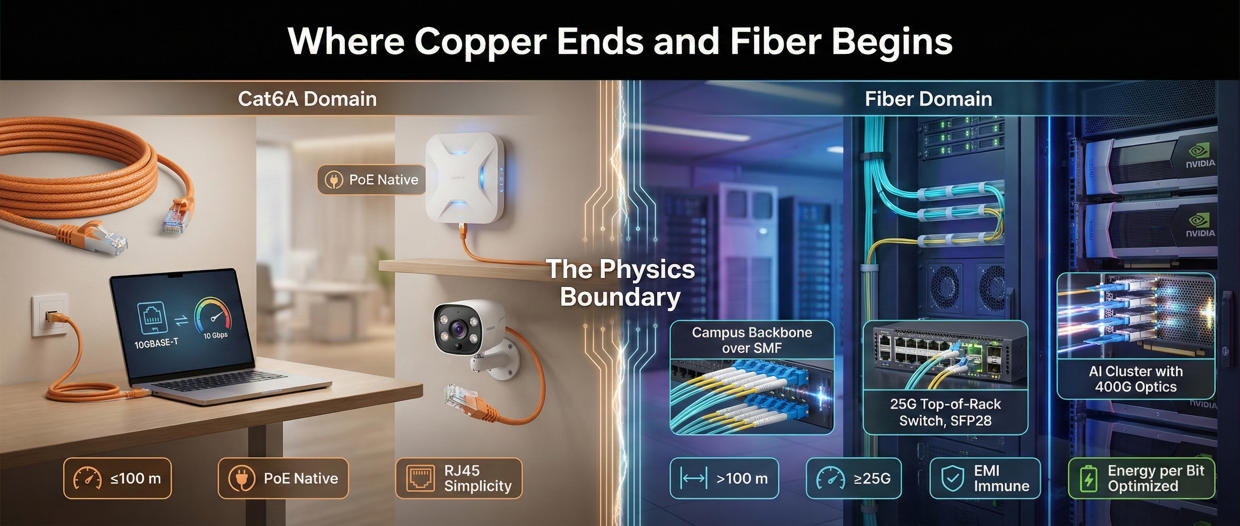

■7) Where Fiber Naturally Begins

Fiber becomes the correct choice when any threshold is crossed: distance >100 m, speed ≥25G, harsh EMI environments, or projects that prioritize long-term scalability and energy efficiency.

■8) Fiber Advantages That Matter in Real Projects

■9) Cost Reality: CAPEX Is Not What It Seems

“Fiber is more expensive” is an oversimplification. In many projects, fiber cable can be cheaper per meter than Cat6A.    The major cost driver is often the optical transceivers (modules required at both ends of a link).

■10) Energy per Bit: The Hidden ESG Driver

Under ESG and carbon-neutrality pressure, many IT teams evaluate networks by Energy per Bit (W/Gbps).    At 10G and above, high-speed copper PHYs can be DSP-heavy, and heat density becomes a real operational constraint. Optical links often scale more favorably in watts-per-Gbps as bandwidth increases.

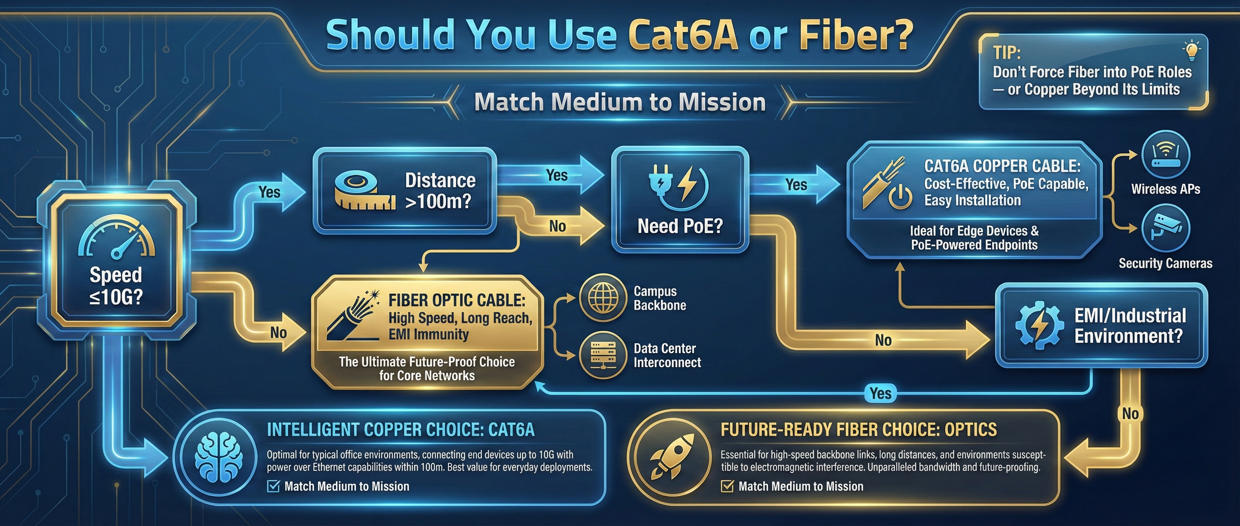

■11) Practical Decision Rules (Engineer’s Shortcut)

■12) ZION COMMUNICATION Perspective

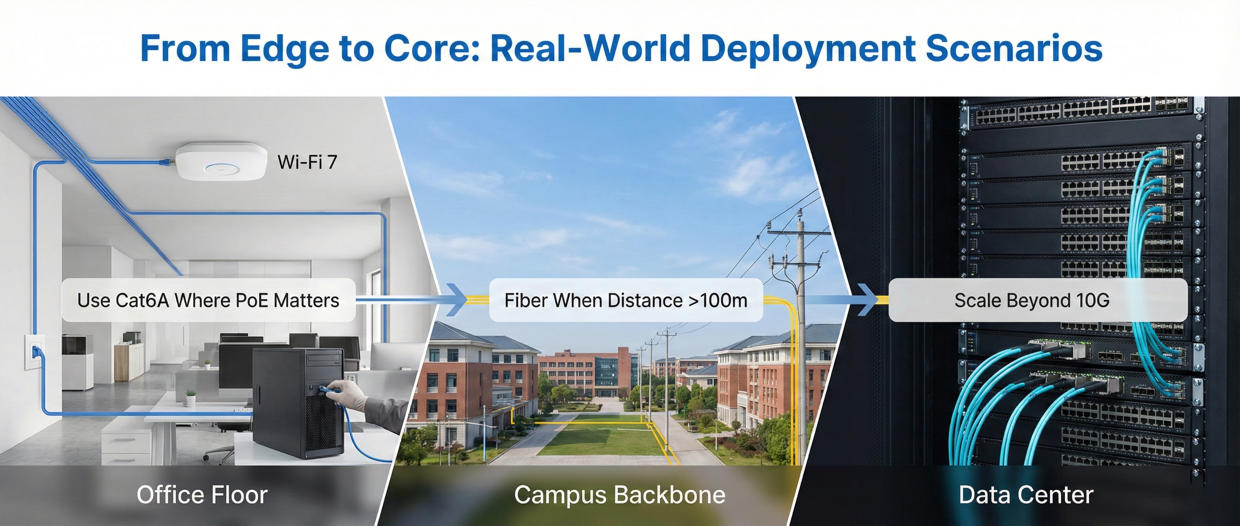

ZION COMMUNICATION positions Cat6A and fiber as complementary layers, not replacements:    Cat6/Cat6A for efficient, powered access networks, and single-mode / multimode fiber for scalable backbone and data center architectures.    This layered approach aligns with standards, physics, and long-term operational efficiency.

■13) Conclusion

Cat6A is not obsolete—and fiber is not optional. The correct engineering decision is knowing where copper ends and optical begins.    Use Cat6A for powered 10G edge links (especially Wi-Fi 7 and PoE endpoints), and use fiber for distance, higher speeds, EMI immunity, and future-ready scaling.
