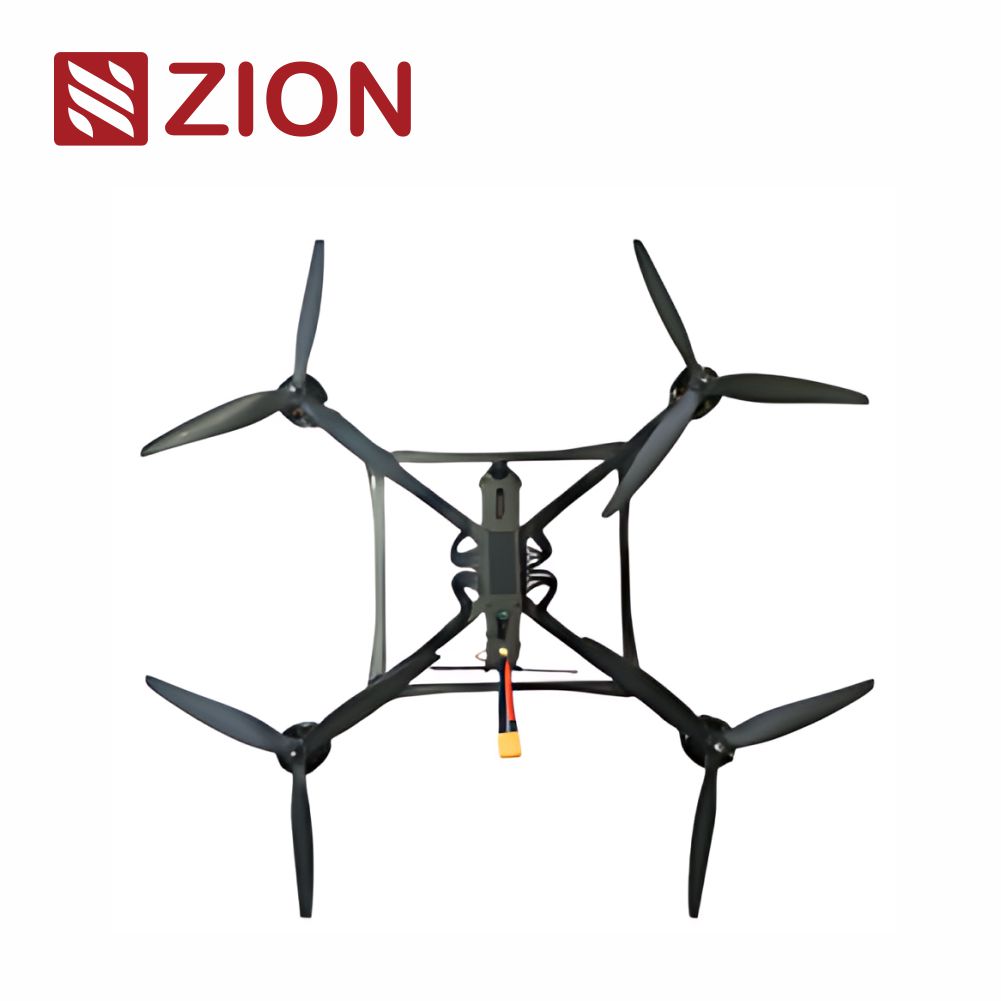

The 13-Inch FPV Drone (Mark4) is an ultra-heavy-lift, long-range UAV platform engineered for industrial inspection, mapping missions, R&D payload testing, and fiber-optic tethered drone systems.
Built with 4214 380KV motors, 13-inch tri-blade propellers, and a reinforced X-type Mark4 frame, this aircraft delivers exceptional thrust, stability, and efficiency under demanding load conditions.
With a rated payload capacity of 6 kg and maximum payload of 7 kg, this platform is ideal for professional UAV programs requiring stable flight performance with large sensors, communication payloads, or custom R&D modules.
• Ultra heavy-lift system: 6 kg rated / 7 kg maximum load
• Industrial-grade 4214 380KV motors for high torque and stability
• 13-inch tri-blade propellers for efficient long-range performance
• 80A 4-in-1 ESC (8S) for reliable high-current operation
• Optional 1500TVL FPV camera & 3W 5.8G VTX
• Compatible with ELRS915 long-range control
• Up to 10 minutes endurance with 8S 16000mAh battery
• Ideal for optical fiber tethered UAV systems and large-payload missions
Flight System | |
Item | Specification |
Frame | 13-inch Frame Mark4 |
Frame Type | X-Type |
Flight Controller | F405 |
ESC | 80A 4-in-1 ESC (8S) |
Receiver | ELRS915 |
Video System | |
Item | Specification |
VTX (Optional) | 5.8G, 3W |
Antenna | 5.8G, 150 mm, 3.5 dBi |
Camera (Optional) | 1500 TVL |
Propulsion | |
Item | Specification |
Motors | 4214 380KV |
Propellers | 1310 脳 3 |
Performance | |
Item | Specification |
Max Flight Speed | 130 km/h |
Rated Payload | 6.0 kg |
Maximum Payload | 7.0 kg |
Maximum Takeoff Weight | 11.3 kg |
Drone Weight | 1980 g |
Battery & Endurance | |
Item | Specification |
Recommended Battery | 8S 16000mAh (XT90 plug) |
Flight Time | ~10 minutes at rated load |
• Ultra-heavy payload UAV projects
• Long-range inspection & industrial missions
• R&D sensor and equipment testing
• Fiber-optic tethered drone systems
• Aerial mapping, surveying & security monitoring
• High-stability missions requiring large propulsion platforms
