FPV Drone
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI

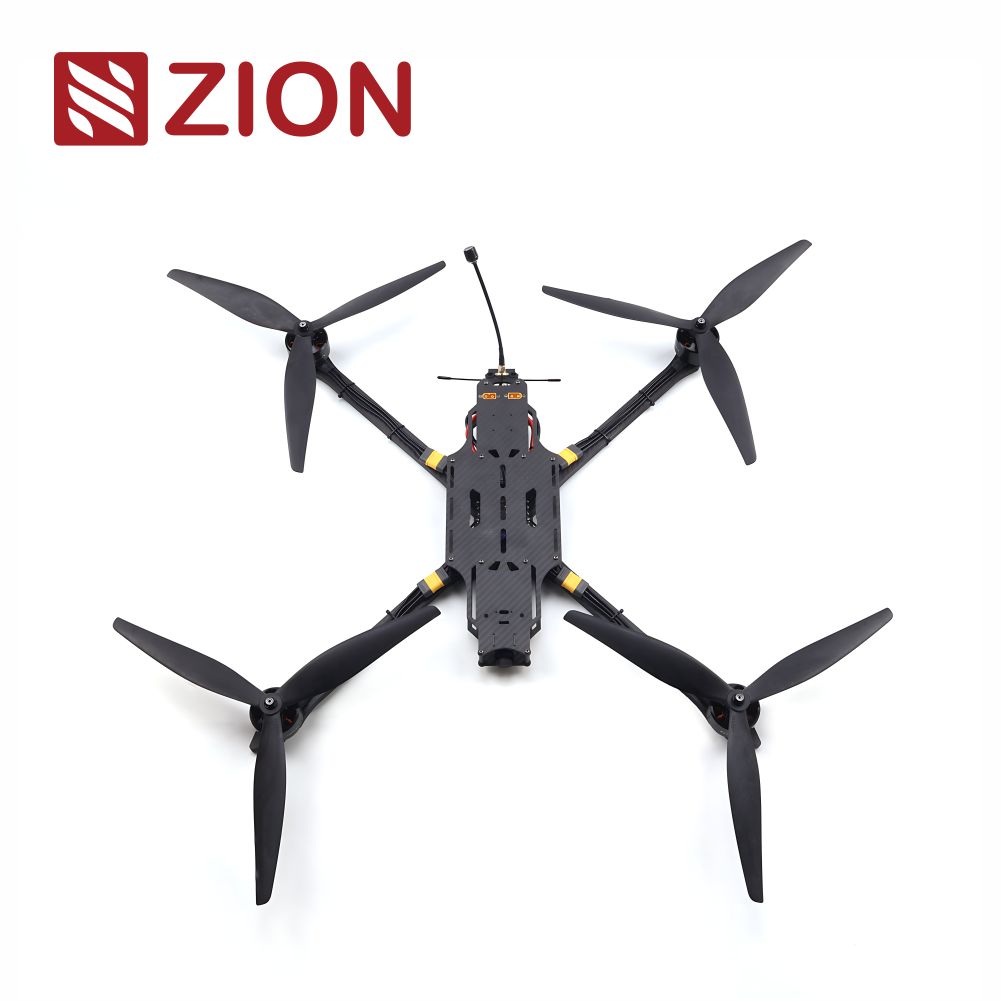

The 15-Inch FPV Drone (Mark4) is an ultra heavy-lift, long-range UAV platform designed for industrial applications such as inspection, mapping, environmental monitoring, R&D payload testing, and fiber-optic tethered drone systems.
Powered by 4720 440KV high-torque motors, 15-inch tri-blade propellers, and a reinforced Mark4 X-Type frame, this aircraft delivers outstanding lifting capacity and operational stability.
With a rated payload of 7 kg and maximum payload of 8 kg, this platform is ideal for missions requiring professional-grade sensors, communication units, or advanced R&D equipment.
• Ultra heavy-lift capability: 7 kg rated / 8 kg maximum payload
• Industrial-class F722 V3 FC + 80A 4-in-1 ESC (8S)
• High-torque 4720 440KV motors with 15×10 tri-blade propellers
• Optional 3W 5.8G VTX & 1500TVL FPV camera
• ELRS915 compatible for long-range stable control
• Strong X-Type Mark4 frame for heavy-load operations
• Endurance up to 12 minutes using 8S 16000mAh battery
Flight System | |
Item | Specification |
Frame | 15-inch Frame Mark4 |
Frame Type | X-Type |
Flight Controller | F722 V3 |
ESC | 80A 4-in-1 ESC (8S) |
Receiver | ELRS915 |
Video System | |
Item | Specification |
VTX (Optional) | 5.8G, 3W |
Antenna | 5.8G, 150 mm, 3.5 dBi |
Camera (Optional) | 1500 TVL |
Propulsion | |
Item | Specification |
Motors | 4720 440KV |
Propellers | 1510 x 3 |
Performance | |
Item | Specification |
Max Flight Speed | 130 km/h |
Rated Payload | 7.0 kg |
Maximum Payload | 8.0 kg |
Maximum Takeoff Weight | 13.0 kg |
Drone Weight | 2080 g |
Battery & Endurance | |
Item | Specification |
Recommended Battery | 8S 16000mAh (XT90 plug) |
Flight Time | ~12 minutes at rated load |
• Industrial inspection & infrastructure monitoring
• Mapping, surveying & environmental research
• Heavy-load UAV R&D and equipment testing
• Fiber-optic tethered UAV operations
• Long-range surveillance & security
• Professional payload missions requiring high stability & thrust
