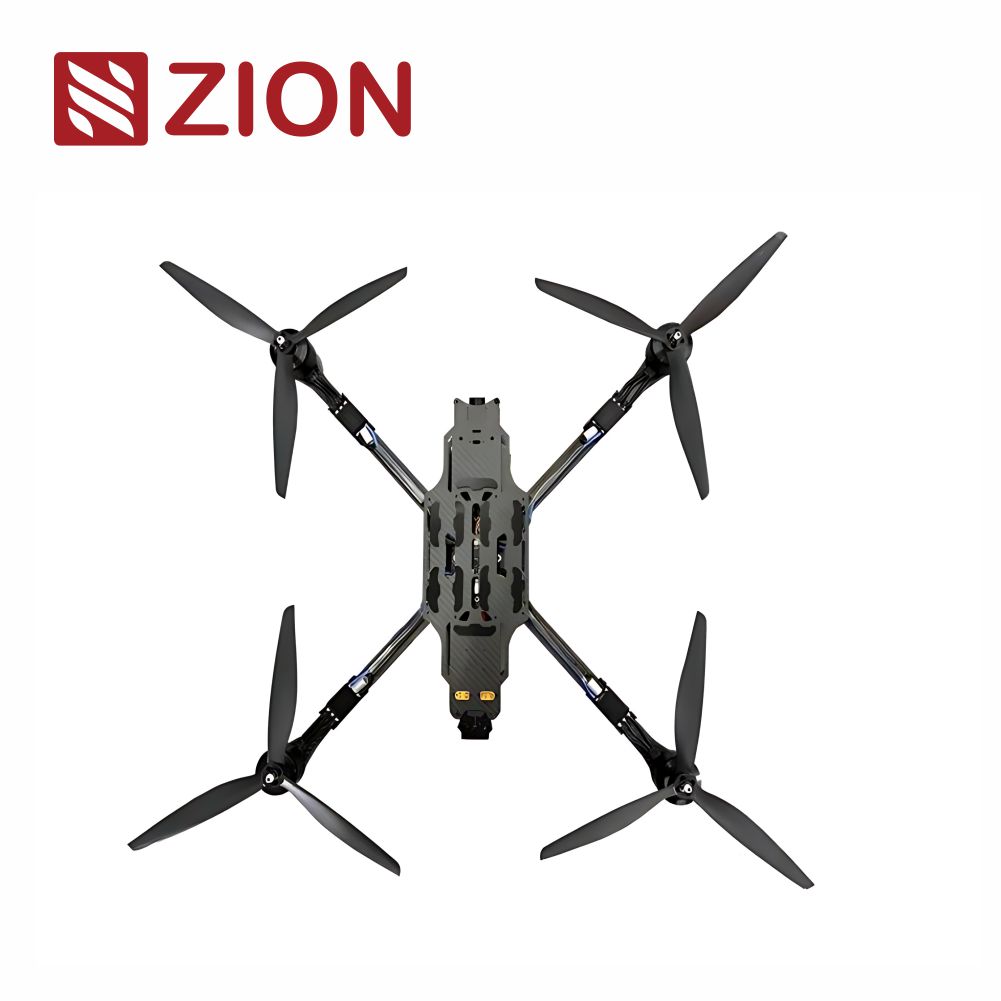

The 13-Inch FPV Drone is a high-thrust, heavy-lift, long-range UAV platform engineered for industrial inspection, mapping, security operations, R&D payload testing, and fiber-optic tethered drone systems.
Equipped with 4214 380KV motors, 13-inch tri-blade propellers, and a robust X-type Mark4 frame, it provides exceptional stability and lifting performance under demanding payload conditions.
With a rated payload of 6 kg and a maximum load of 7 kg, this drone is ideal for missions requiring large sensors, communication modules, or industrial-grade equipment.
• Heavy-lift propulsion system: 6 kg rated / 7 kg maximum load
• High-torque 4214 380KV motors with 13×10 tri-blade propellers
• Industrial-class 80A 4-in-1 ESC (8S)
• Optional 1500TVL FPV camera + 5.8G 3W VTX
• ELRS915 long-range receiver compatibility
• Stable 130 km/h max flight speed
• Up to 11 minutes endurance using 8S 16000mAh battery
Flight System | |
Item | Specification |
Frame | 13-inch Frame |
Frame Type | X-Type |
Flight Controller | F405 |
ESC | 80A 4-in-1 ESC (8S) |
Receiver | ELRS915 |
Video System | |
Item | Specification |
VTX (Optional) | 5.8G, 3W |
Antenna | 5.8G, 150 mm |
Camera (Optional) | 1500 TVL |
Propulsion | |
Item | Specification |
Motors | 4214 380KV |
Propellers | 1310 x 3 |
Performance | |
Item | Specification |
Max Flight Speed | 130 km/h |
Rated Payload | 6.0 kg |
Maximum Payload | 7.0 kg |
Maximum Takeoff Weight | 11.3 kg |
Drone Weight | 1980 g |
Battery & Endurance | |
Item | Specification |
Recommended Battery | 8S 16000mAh (XT90 plug) |
Flight Time | ~11 minutes at rated load |
• Industrial inspection & maintenance
• Long-range surveillance & security monitoring
• R&D sensor and payload testing
• Fiber-optic tethered UAV systems
• Aerial mapping & surveying
• Heavy-load professional FPV missions
