FPV Drone
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI

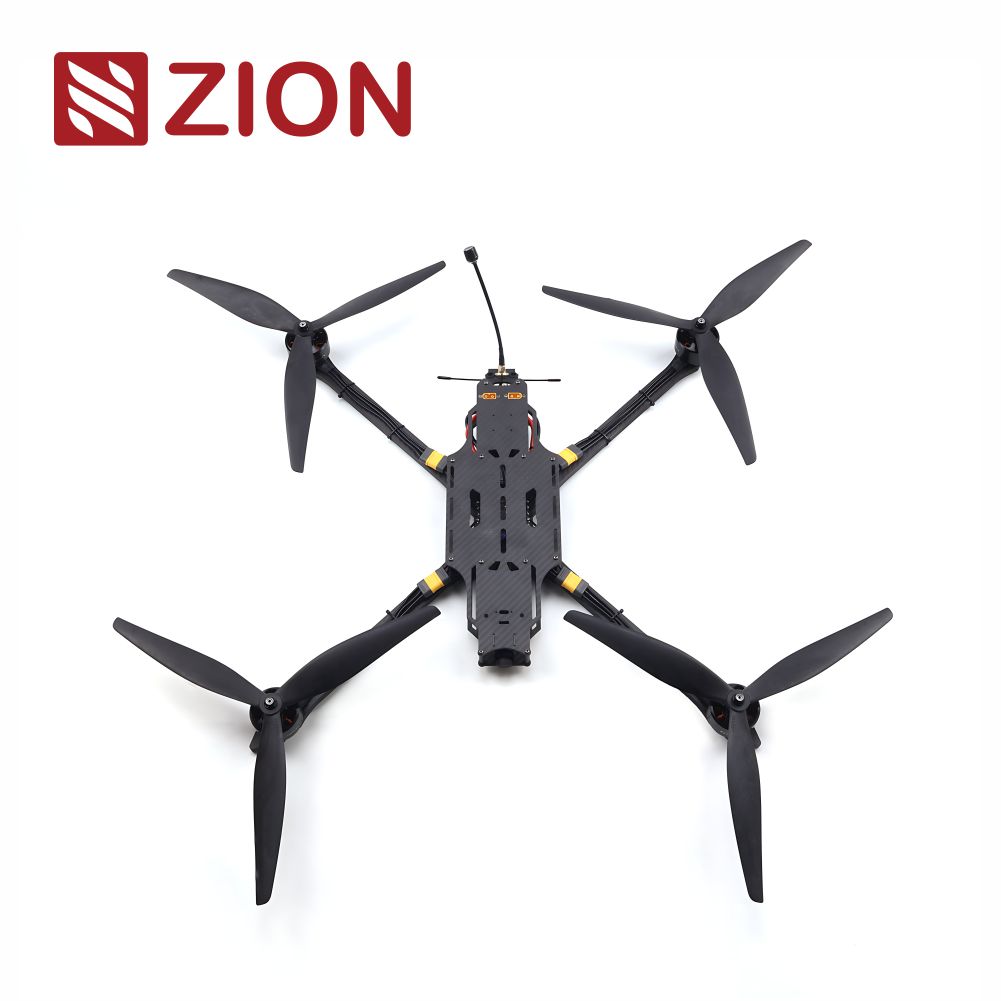

The 18-Inch FPV Drone (Mark4) is a large-format, ultra-heavy-lift UAV platform engineered for industrial missions requiring extreme payload capacity, long-range endurance, and strong flight stability.
Equipped with 54A 2536W high-power motors, an advanced 120A 12S ESC, and a reinforced 18-inch Mark4 X-frame, this aircraft delivers unprecedented thrust for demanding applications.
With a rated payload of 8 kg and maximum load of 10 kg, it supports advanced UAV operations such as LIDAR mapping, optical-fiber tethered flight, environmental monitoring, R&D equipment testing, and high-level technical reconnaissance.
• Ultra heavy-lift capability: 8 kg rated / 10 kg maximum payload
• 18-inch tri-blade propulsion system for extreme thrust
• Industrial-grade F722 FC + 120A 4-in-1 ESC (12S)
• High-power 54A / 2536W motors
• Optional 5.8G 10W VTX for long-distance video transmission
• Compatible with ELRS915 long-range control
• Excellent stability for fiber-tethered UAV systems
• Up to 30 minutes endurance @ 12S 22000mAh rated load
Flight System | |
Item | Specification |
Frame | 18-inch Frame Mark4 |
Frame Type | X-Type |
Flight Controller | F722 |
ESC | 120A 4-in-1 ESC (12S) |
Receiver | ELRS915 |
Video System | |
Item | Specification |
VTX (Optional) | 5.8G, 10W |
Antenna | 5.8G, 150 mm |
Camera (Optional) | 1500 TVL |
Propulsion | |
Item | Specification |
Motors | 54A, 2536W |
Propellers | 1810 x 3 |
Performance | |
Item | Specification |
Max Flight Speed | 170 km/h |
Rated Payload | 8.0 kg |
Maximum Payload | 10.0 kg |
Maximum Takeoff Weight | 15.0 kg |
Drone Weight | (To be confirmed) |
Battery & Endurance | |
Item | Specification |
Recommended Battery | 12S 22000mAh (XT90 plug) |
Flight Time | ~30 minutes at rated load |
• Ultra heavy-duty industrial UAV missions
• LIDAR mapping & photogrammetry
• Environmental monitoring & research
• High-capacity optical-fiber tethered drone systems
• R&D sensor & payload testing
• Military-style reconnaissance (non-sensitive commercial framing)
• Long-range surveillance & technical inspection
