FPV Drone
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI

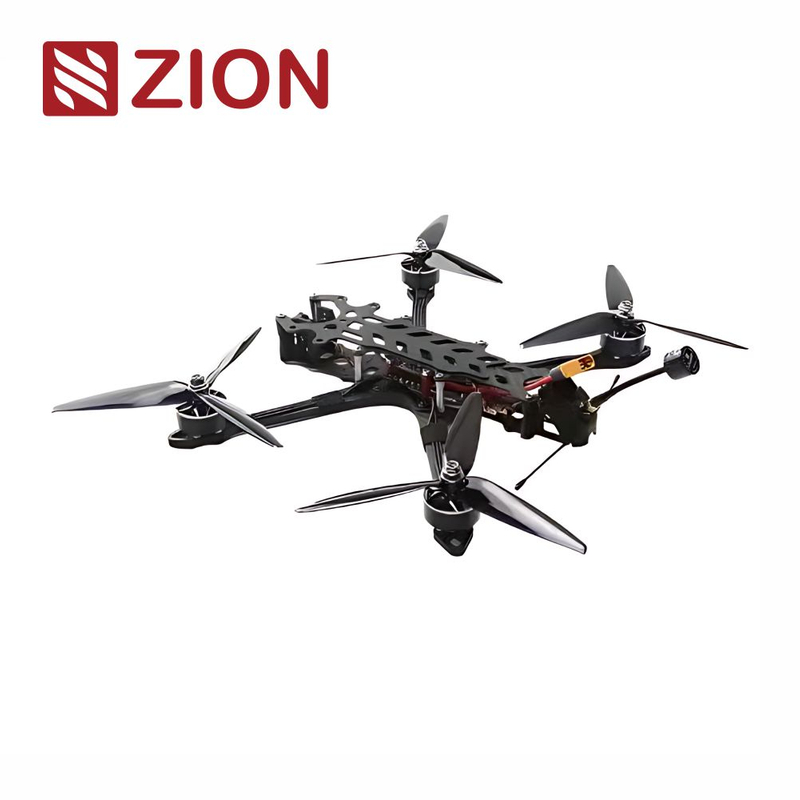

The 7-Inch FPV Drone (Mark4) is a powerful long-range platform designed for high-speed flights and payload missions. With a robust propulsion system, stable F405 flight controller, and optional high-power VTX, it offers reliable performance for inspection, mapping, testing, and professional FPV applications.
High-efficiency 2812 900KV motors with 7050×3 propellers
Stable F405 flight controller + 55A 4-in-1 ESC
Optional 5.8G 3W VTX for long-range video transmission
Rated payload 1.5 kg; max payload 2.0 kg
Maximum flight speed: 160 km/h
~10 min endurance with 6S 6000mAh battery
Item | Specification |
Frame | 7-inch Mark4 |
Frame Type | X-Type |
Flight Controller | F405 |
ESC | 55A 4-in-1 ESC (2–6S) |
Receiver | ELRS915 |
Video System
Item | Specification |
VTX (Optional) | 5.8G, 3W |
Antenna | 5.8G, 150 mm |
Camera (Optional) | 1500 TVL |
Propulsion
Item | Specification |
Motors | 2812 900KV |
Propellers | 7050×3 |
Performance
Item | Specification |
Max Flight Speed | 160 km/h |
Rated Payload | 1.5 kg |
Max Payload | 2.0 kg |
Max Takeoff Weight | 3.5 kg |
Drone Weight | (To be confirmed) |
Battery & Endurance
Item | Specification |
Recommended Battery | 6S 6000mAh (XT60) |
Flight Time | ~10 minutes @ rated load |
■ Applications
Long-range FPV
Inspection & scouting
Payload testing
Industrial FPV training
R&D drone platforms

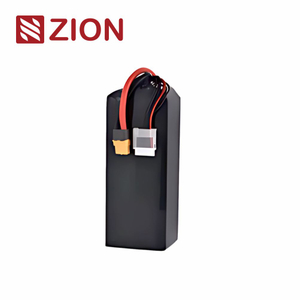

Model | Specifications |
6S 6000mAh | - LiPo Battery 6000mAh, 65C, 6S 22.2V |
6S 8500mAh | - LiPo Battery 8500mAh, 6S 22.2V |
6S 10000mAh | - LiPo Battery 10000mAh, 6S 22.2V |
8S 12600mAh | - LiPo Battery 12600mAh, 8S 29.6V |
8S 16000mAh | - LiPo Battery 16000mAh, 8S 29.6V |
8S 20000mAh | - LiPo Battery 20000mAh, 25C, 8S 29.6V |
8S 22000mAh | - LiPo Battery 22000mAh, 8S 29.6V |
■ FPV Ground Station Accessories
RadioMaster TX14 ELRS Mark II
Item | Specification |
Size | 170 × 159 × 108 mm |
Weight | 363 g |
Transmission Frequency | 2.400–2.480 GHz |
Transmitter Module | Single-Chip Multi-Protocol HF Module (CC2500) / Built-in ExpressLRS Module (ELRS) |
Supported Protocols | Corona, Hitec, Futaba S-FHSS, FrSky D16/D8, RadioLink, Graupner HoTT, etc. (Multi-protocol version) |
ELRS Support | ExpressLRS (ELRS version) |
Working Voltage | 6.6–8.4V DC |
Firmware | EdgeTX (Transmitter) / DIY Multi-Protocol TX Module (HF Module) / ELRS |
Channels | Up to 16 channels (depending on receiver) |
Display | 128 × 64 monochrome LCD |
Gimbals | Hall sensor gimbals |
External Module Slot | JR / FrSky-compatible |
Upgrade Options | USB online upgrade / SD card offline upgrade |

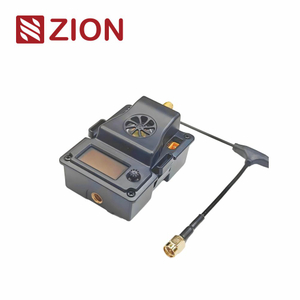

High-Frequency Head (for Remote Control)
Item | Specification |
High-Frequency Head | - Frequency: ELRS 915 MHz |

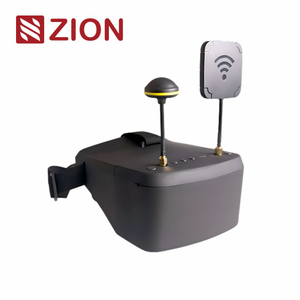

5.8G 800D FPV Goggles
Item | Specification |
Model | 800D |
Screen Size | 5-inch display |
Resolution | 800 × 480 |
Receiving Frequency | 5645–5945 MHz |
Power | 3.25W (Optional 40-channel) |
Input Voltage | 5V |
DVR Function | Yes (supports DVR recording) |
Built-in Battery | 3.7V / 2000mAh |
Maximum Memory | 32GB |
Product Weight | 393 g |
Product Size | 180 × 140 × 84 mm |
Packing Weight | 700 g |
Package Size | 200 × 180 × 100 mm |

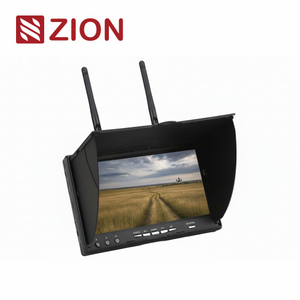

7" Handheld Screen (Optical Fiber Ground-End Monitor)
Item | Specification |
Model | 5802S (7-inch handheld monitor) |
Resolution | 800 × 480 |
Receiving Frequency | 5645–5945 MHz |
Power | 3.25W (Optional 40-channel) |
Built-in Battery | 7.4V / 2000mAh |
DVR Function | No DVR recording |
Product Weight | 469 g |
Product Size | 175 × 117 × 28 mm |
Packing Weight | 850 g |
Package Size | 300 × 140 × 50 mm |
