A project approval package should do more than describe a cable. It should prove that the approved item, the ordered item, and the delivered item are the same product, suitable for the application, supported by the right technical and compliance documents, and easy to verify during inspection and installation.
Approval delays usually come from missing, inconsistent, or project-mismatched documents rather than from cable alone.
The most important check is consistency across datasheet, drawing, quotation, test evidence, marking, and compliance files.
A controlled approval package reduces rejection risk, site disputes, and hidden substitution problems.
A cable documentation checklist is not just a file list. It is a control tool used to confirm that the specified cable, the approved cable, the purchased cable, and the delivered cable are the same product. In project-driven supply, that matters because many delays come from document gaps rather than from manufacturing defects.
A good approval package should answer five questions clearly: what the cable is, whether it fits the application, which standards or compliance requirements it meets, how the delivered product will be identified, and whether all documents tell the same story. If one of those questions remains unclear, approval risk increases quickly.
Approval delays usually happen when the technical, commercial, and compliance sides of the package are not aligned. A quotation may describe one jacket, a datasheet may describe a wider product family, and the site requirement may call for a specific fire or environmental rating. Reviewers then have to stop and ask which version is correct.
The practical risk is not only slower approval. It also creates a higher chance of ordering the wrong item, receiving a product that cannot be accepted on site, or facing claims later because the documentation trail was weak from the beginning.
| Typical Gap | Why Reviewers Stop | Resulting Risk |
|---|---|---|
| Generic datasheet for a project-specific cable | The exact build cannot be confirmed | Approval pause or consultant comments |
| Compliance claim without supporting file | The statement cannot be verified | Rejection, delay, or re-submission |
| Drawing and quotation do not match | The approved product identity becomes unclear | Wrong procurement release |
| No print marking or label confirmation | Site identification method is missing | Receiving disputes and traceability problems |
Not every project needs the same file depth, but most approval packages should include enough information for technical review, procurement verification, and later inspection. The table below shows the practical baseline.
| Document | What It Should Confirm | Why It Matters | Risk If Missing |
|---|---|---|---|
| Technical datasheet | Construction, materials, rating, dimensions, standards | Defines the technical identity of the cable | Suitability cannot be confirmed |
| Quotation / offer | Ordered item, model, quantity, commercial scope | Links approval to procurement release | Commercial mismatch |
| Construction drawing | Layer structure, core/pair count, shield or armor details | Supports engineering review and site planning | Build ambiguity |
| Test report | Electrical, optical, flame, or environmental performance | Provides evidence beyond brochure claims | Unsupported performance claim |
| Compliance declaration | RoHS, REACH, CPR/DoP, or project-required declarations | Supports market and project compliance fit | Import or site acceptance risk |
| Print marking confirmation | Legend, meter marking, color, branding, approval wording | Improves site identification and traceability | Receiving disputes |
| Packing / label format | Reel length, label data, batch or traceability logic | Supports warehouse and site control | Weak traceability |
| Sample or approval record | Custom color, marking, finish, or OEM details | Useful for customized or consultant-reviewed supply | Production mismatch |
A datasheet should be detailed enough that a reviewer can compare it with the project requirement and later compare the delivered cable with the approved version. For project approval, generic family-level datasheets are often not enough.
Model code and product name
Conductor or fiber type
Core, pair, or fiber count
Conductor size / AWG / mm²
Shield, armor, or messenger structure
Insulation and jacket material
Temperature range and bend limits
Voltage or optical performance values
Indoor / outdoor / harsh-environment suitability
Fire or reaction-to-fire class where relevant
Applicable standards
Outer diameter and weight if needed
Color code and identification method
Print marking details
Packaging length or tolerance if project-relevant
| Cable Category | Approval-Critical Parameters | Typical Mistake |
|---|---|---|
| Ethernet / Data Cable | Category, conductor material, shielding structure, jacket grade, flame rating | Category is shown but actual conductor or shield build is unclear |
| Fiber Optic Cable | Fiber type, core count, cable construction, tensile/crush limits, jacket type | Fiber count or route condition is not matched correctly |
| Fire / Security / Alarm Cable | Fire performance, shielding, conductor size, standard reference | Fire claim wording is vague or unsupported |
| Industrial / Control Cable | Pair count, shield design, conductor class, voltage rating, jacket resistance | Drawing and datasheet describe different shield structures |
The right checklist is not always the longest checklist. It should match project risk, consultant involvement, customization level, and regulatory exposure. A standard repeat order may need a lean package. A consultant-approved or export-driven project often needs a more formal submission set.
| Approval Scenario | Minimum Package | Recommended Additions | Main Reason |
|---|---|---|---|
| Standard distributor order | Datasheet, quotation | Marking and packing details | Reduce wrong-item disputes |
| OEM / custom order | Datasheet, drawing, quotation, sample sign-off | Print artwork, label format, packaging confirmation | Avoid production mismatch |
| Building / consultant approval | Datasheet, drawing, test evidence, declarations | Installation notes, marking confirmation | Improve technical traceability |
| Export project | Datasheet, compliance files, certificate support | Country-specific approval files if required | Lower customs and acceptance risk |
| Tender / infrastructure project | Full technical file with controlled versions | Approval matrix and deviation list | Speed up formal review and clarify exceptions |
Use this quick screen before submission. It will not replace a full review, but it helps identify the most common blockers early.
| Situation | Likely Ready? | What To Confirm Before Submission | Decision Impact |
|---|---|---|---|
| Datasheet, drawing, and quotation match exactly | Usually yes | Check latest version and project code | Low approval friction |
| Compliance statement exists but no supporting file is attached | No | Add declaration, report, or document reference | High rejection risk |
| Custom cable has no approved sample or marking record | No | Freeze print, label, color, and packaging details | Production mismatch risk |
| Standard repeat item for a familiar project | Often yes | Confirm there is no project-specific requirement change | Moderate risk if assumptions are wrong |
| Fire, safety, or harsh-environment cable under consultant review | Not yet | Attach exact standard reference and evidence matching the project scope | High review scrutiny |
For project-oriented supply, documentation support is part of product value. A supplier should be able to help prepare project-matched datasheets, construction details, marking confirmation, declaration support, and the certificate or resource files needed for review, depending on cable type and destination requirement.

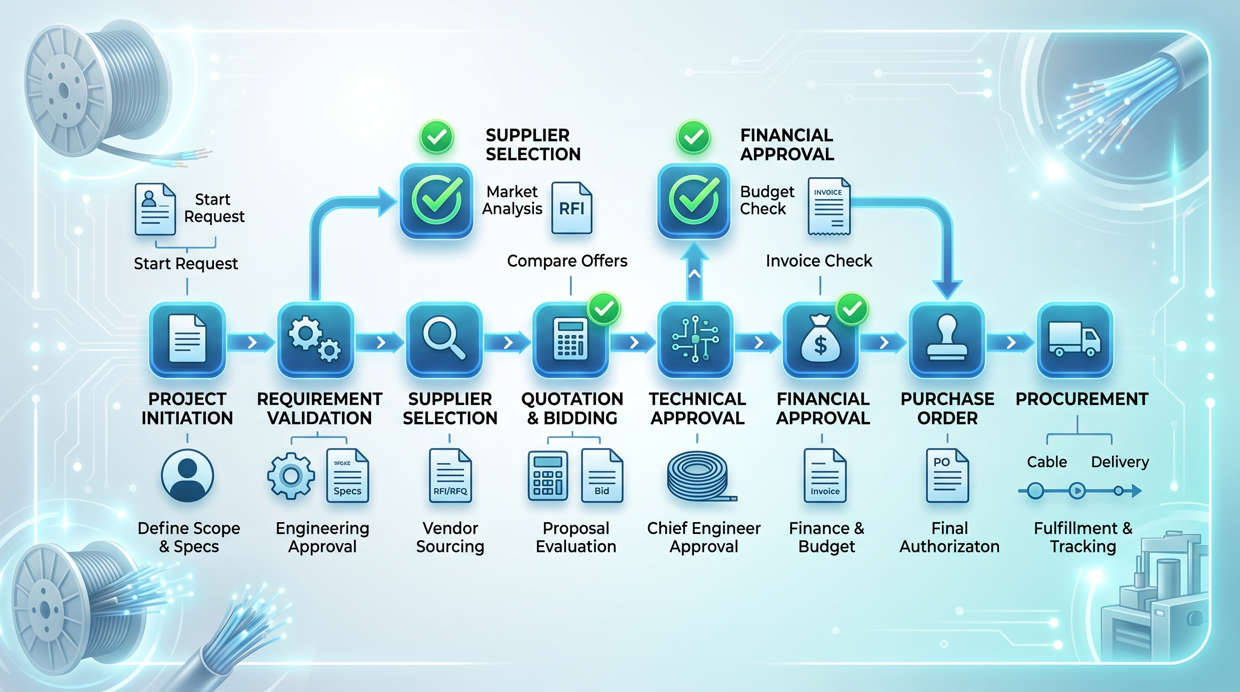

For ZION COMMUNICATION, the strongest positioning is not only manufacturing capability across multiple cable categories, but also the ability to support a more structured approval workflow. That is especially useful when buyers want one documentation logic across Ethernet, fiber optic, security, control, and related cable families instead of rebuilding the process from zero for each project.
A cable documentation checklist is really a risk-control tool. It helps engineers, buyers, and project teams verify that the approved cable is the same cable that will be manufactured, shipped, received, installed, and maintained. For engineers, it reduces ambiguity. For procurement, it improves comparability and traceability. For project managers, it shortens approval cycles and reduces avoidable rework.
For ZION COMMUNICATION, the more valuable message is not simply “we supply cables,” but “we help support approval-ready cable documentation.” In formal projects, that difference often matters as much as price.
