Author: Will Publish Time: 19-01-2026 Origin: Site
In 2026, Ethernet installation must support Wi-Fi 7, 10G links, and PoE++ (90W). This guide explains the correct workflow—from routing and termination to testing and documentation—so your network works as designed, not just “as connected”.
Plan the route first (EMI separation, access, future expansion).
Terminate consistently with T568A or T568B (same both ends).
Prefer jacks + patch panels for offices; minimize field RJ45 plugs.
Test every run and document labeling + maps before handover.
2026 networks carry more than data. They often deliver power (PoE++), support high-density Wi-Fi 7 access points, and operate in tighter cable pathways. That raises the bar for routing discipline, termination consistency, heat/EMI risk control, and documentation.
Wire cutters and quality cable stripper
RJ45 crimping tool (if using plugs) + punch-down tool (for keystones/patch panels)
Fish tape / cable rods for walls and ceilings
Drill + appropriate bits, stud finder
Labels, Velcro ties, cable supports
Ethernet tester (continuity/pinout) or certification tester for critical links

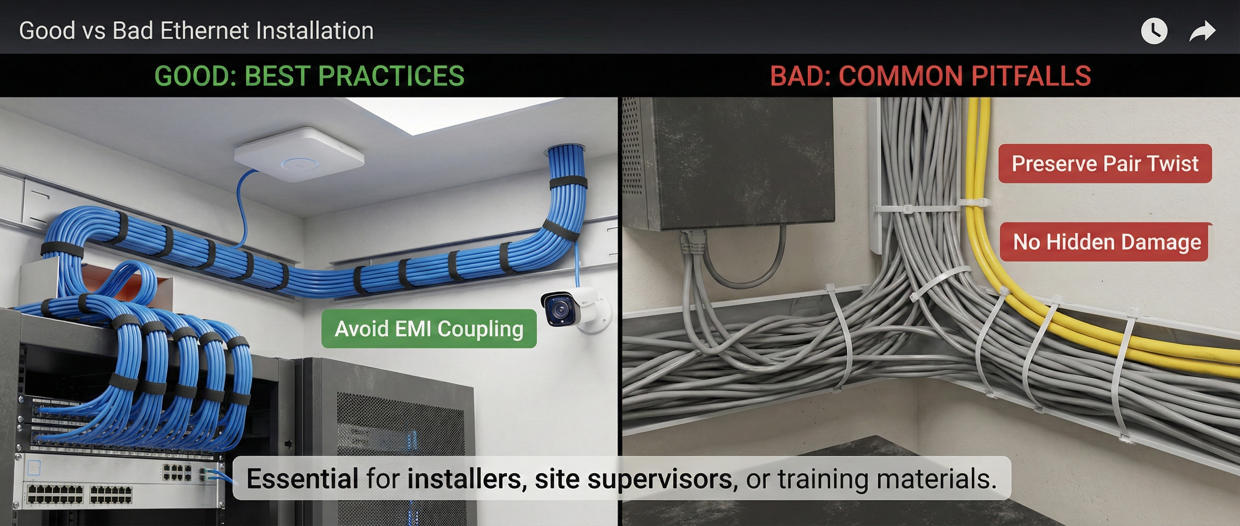

A clean route is the cheapest “performance upgrade”. Map the path from network closet to endpoints, then validate access points, penetrations, and service loops.
Keep distance from mains power lines when possible
Avoid tight corners and pinch points
Use accessible pathways for future adds
Conduit in high-traffic or exposed areas
Plan for more Wi-Fi APs and PoE endpoints
Leave pull strings or spare conduit where possible
Design labeling + patch panel map from day one
Measure along the real pathway (walls/ceilings/cable trays). Add 10–15% extra length for obstacles and service loops. It’s better to trim later than to splice.
Use a stud finder before drilling. Drill smooth holes slightly larger than the cable OD and protect sharp edges with bushings. Maintain consistent hole placement for easier management and troubleshooting.

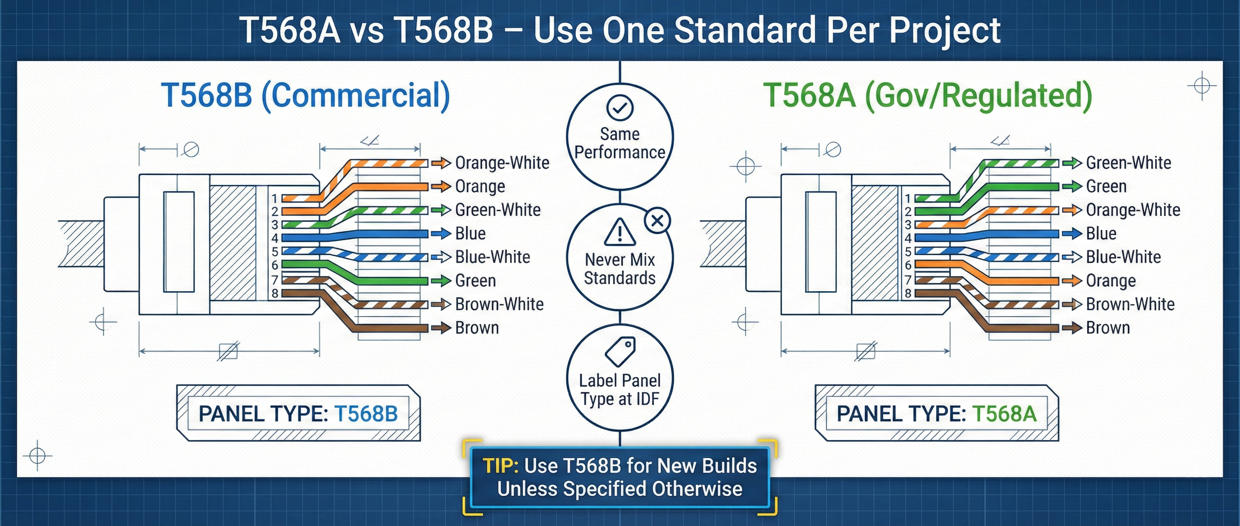

T568A and T568B deliver identical performance when used correctly. The real problem is inconsistency. Always terminate the same standard on both ends to avoid unintended crossover behavior.
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
White/Green
Green
White/Orange
Blue
White/Blue
Orange
White/Brown
Brown
For professional offices, terminate horizontal cabling to keystone jacks and patch panels. This improves serviceability and reduces field failures. RJ45 plugs can be used where appropriate, but keep pair twists as close to termination as possible and ensure the jacket is captured for strain relief.
Every run should be tested before go-live. At minimum: pinout/continuity. For critical 10G links: certification testing.
Correct wiring (no split pairs)
Continuity and shorts/opens
Stable link under load (especially PoE++ endpoints)
Target speed verification (1G/2.5G/10G where applicable)
Documentation is part of installation quality. Label both ends, map patch panel ports, store test results, and record cable routes. This cuts troubleshooting time and protects uptime.
DIY works for small single-room projects. Professional installation is strongly recommended for multi-floor offices, Wi-Fi 7 deployments, PoE++ devices, and compliance-driven buildings.
ZION COMMUNICATION focuses on building Ethernet infrastructure that remains stable for years: correct routing, consistent termination, predictable performance, and clean handover documentation. We recommend designing the installation workflow alongside the cable selection plan—because modern networks carry both high-speed data and high power.
Is Ethernet faster than Wi-Fi?
Ethernet provides more stable throughput and latency. In 2026, it is still the most reliable foundation for Wi-Fi 7 backhaul and PoE++ endpoints.
Do I need to run Ethernet inside walls?
For professional spaces, in-wall or above-ceiling routing improves aesthetics, protects cables, and enables proper cable management.
Do I need permits?
It depends on local codes and building type—especially when routing through fire-rated assemblies or air-handling spaces.
Choosing the correct cable matters as much as installation. Read the companion guide: How to Choose the Right Ethernet Cable in 2026 (Selection Guide).
