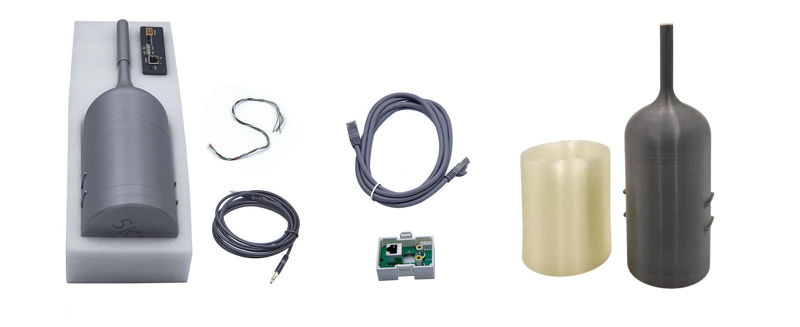

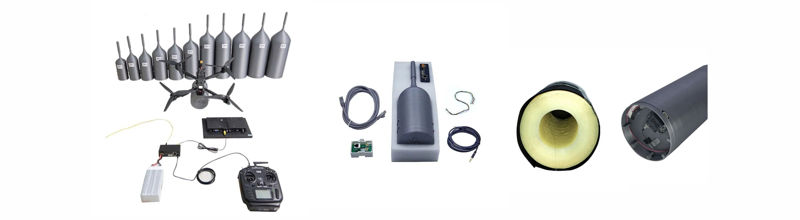

FPV Drone Optical Fiber Kit
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI
Item | ZC-FPV-IN/1–60KM |
Available Fiber Lengths | 1 km / 2 km / 3 km / 5 km / 10 km / 15 km / 20 km / 25 km / 30 km / 40 km / 50 km / 60 km |
Product Name | Inner Winding FPV Drone Optical Fiber Kit |
Fiber Type | Singlemode, bend-insensitive (ITU-T G.657), 1 core, 0.23 mm |
Connector Type | FC (fixed type) |
Jacket Material | PC or PU, abrasion-resistant, outdoor ready |
Optical Performance | Supports multi-Gbps FPV video/data transmission with standard optics |
Operating Temperature | –20 °C ~ +60 °C |
Mounting | Quick-release UAV bracket or customized interface |
Compliance & Tests | Insertion loss, tensile strength, reel winding reliability, full link testing |
Parameter | 1310 nm | 1550 nm | Unit |
Attenuation (Insertion Loss) | ≤ 0.35 | ≤ 0.25 | dB/km |
Typical Attenuation (WT) | 0.329 | 0.185 | dB/km |
Product Model | Fiber Length | Fiber Diameter | Weight (kg) | Dimension (OD × H) |
ZC-FPV-OFC-001 | 1 km | 0.23 mm | 0.21 | ∅77 × 240 mm |
ZC-FPV-OFC-002 | 2 km | 0.23 mm | 0.32 | ∅85 × 300 mm |
ZC-FPV-OFC-003 | 3 km | 0.23 mm | 0.39 | ∅85 × 300 mm |
ZC-FPV-OFC-005 | 5 km | 0.23 mm | 0.58 | ∅99 × 310 mm |
ZC-FPV-OFC-010 | 10 km | 0.23 mm | 0.99 | ∅110 × 330 mm |
ZC-FPV-OFC-015 | 15 km | 0.23 mm | 1.38 | ∅120 × 350 mm |
ZC-FPV-OFC-020 | 20 km | 0.23 mm | 1.78 | ∅120 × 380 mm |
ZC-FPV-OFC-025 | 25 km | 0.23 mm | 2.18 | ∅120 × 440 mm |
ZC-FPV-OFC-030 | 30 km | 0.23 mm | 2.56 | ∅136 × 455 mm |
ZC-FPV-OFC-040 | 40 km | 0.23 mm | 3.02 | ∅146 × 455 mm |
ZC-FPV-OFC-050 | 50 km | 0.23 mm | 4.18 | ∅151 × 455 mm |
ZC-FPV-OFC-060 | 60 km | 0.23 mm | 4.86 | ∅161 × 455 mm |
FPV-Optimized Optical Transmission: Delivers real-time HD/4K video with zero RF interference.

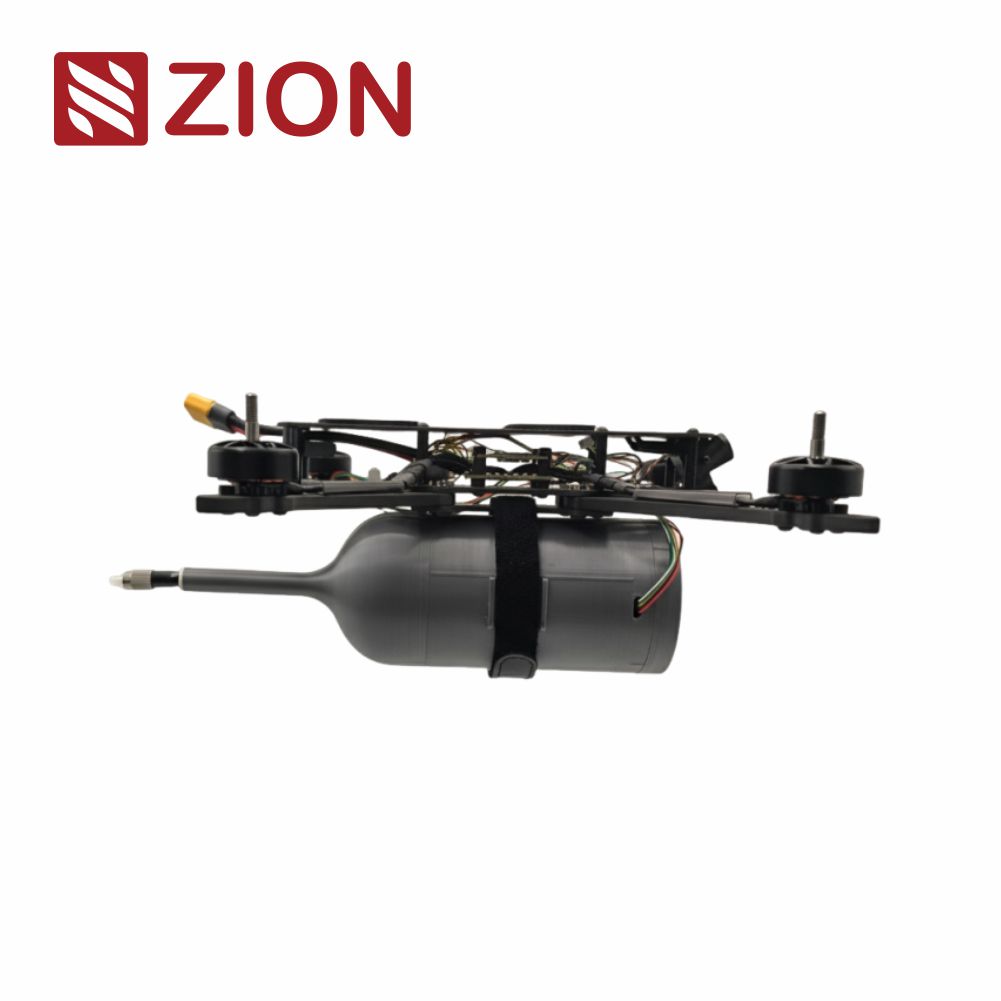

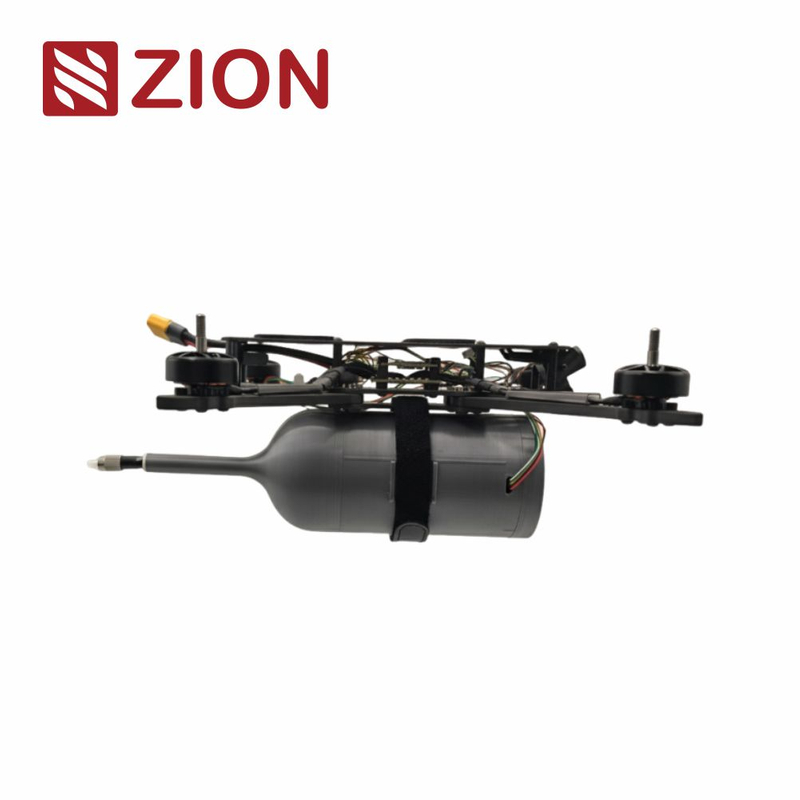

Inner Winding Capsule Design: Ensures smooth fiber payout and retrieval, preventing tangling or twisting.
Ultra-Light Microfiber: 0.23 mm single-core fiber minimizes UAV payload, extending flight endurance.

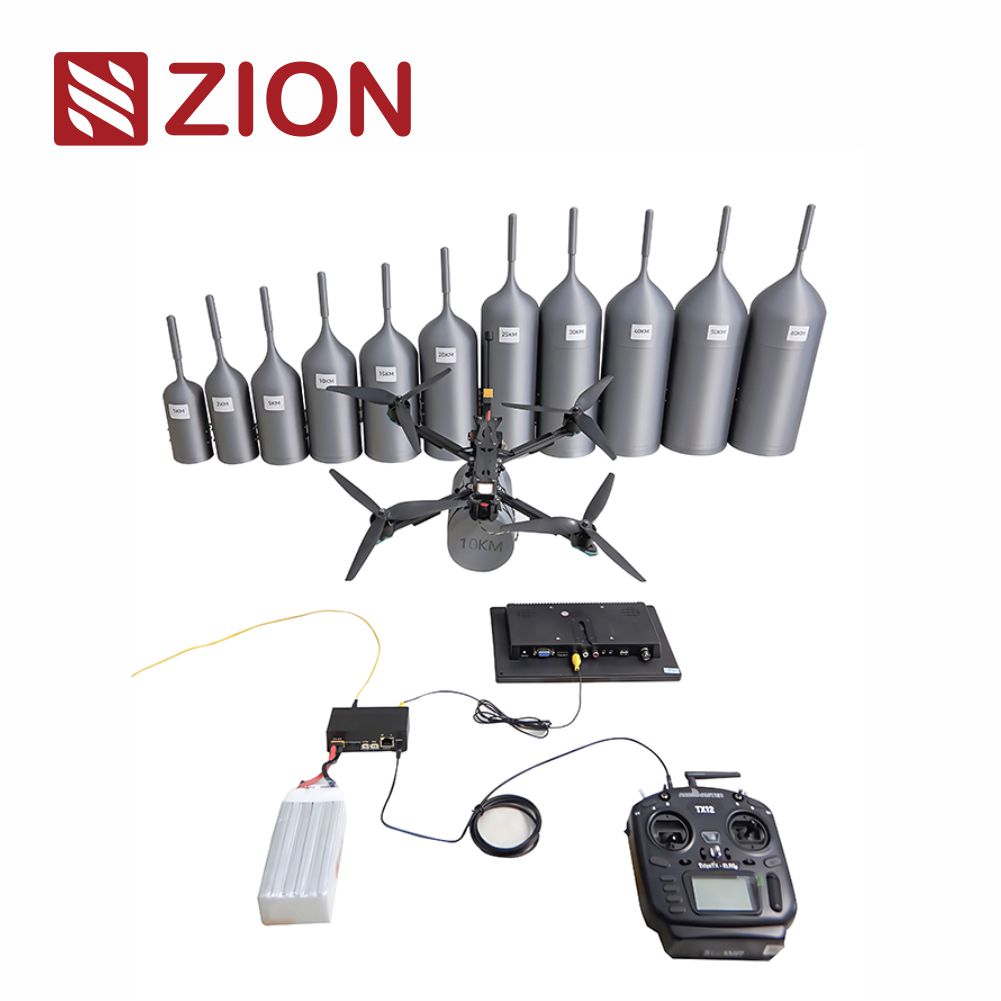

Scalable Range Options: Available in 1–60 km configurations for tactical, industrial, and defense applications.
Rugged Construction: PC/PU housing provides superior resistance to abrasion, impact, and environmental stress.
Precise FC Connectors: Fixed-type FC termination ensures accurate alignment and stable optical locking.
Customizable Builds: Optional materials, interfaces, or accessories available for mission-specific UAV systems.
Real-time HD/4K FPV video transmission with no interference
Smooth inner winding design for stable and tangle-free release
Lightweight and durable construction for long-range UAV missions
Reliable operation under –20 °C to +60 °C field conditions
Designed for professional FPV, inspection, defense, and research drones
Short-Range FPV (1–5 km): Event monitoring, municipal inspections, tactical UAV missions
Medium-Range FPV (10–20 km): Oil & gas facility inspections, tunnel and mining operations
Long-Range FPV (25–30 km): Telecom, mapping, and scientific UAV surveys
Extreme FPV (40–60 km): Defense reconnaissance, border and coastal surveillance
Research & Environment: Atmospheric, GIS, and environmental data collection
What is this product used for?
It provides a zero-interference optical tether for UAVs, enabling real-time HD/4K video and data transmission up to 60 km.
Why fiber instead of wireless?
Optical links offer stable, high-bandwidth transmission even in congested or RF-restricted environments.
What connector type is used?
Equipped with fixed FC connectors for precise alignment and secure locking.
What fiber is inside?
Bend-insensitive singlemode (ITU-T G.657) 0.23 mm micro-fiber for lightweight design and extended range.
What length options are available?
Standard lengths from 1 km to 60 km; custom versions available on request.
What environments can it operate in?
Designed for field deployment from –20 °C to +60 °C, with PC/PU abrasion-resistant housing.
Can it be customized?
Yes, customized cases, interfaces, or fiber materials can be produced per mission requirements.
Who uses this product?
Public safety, oil & gas, defense, scientific research, tunnel inspection, and UAV data mapping sectors.
