FPV Drone Optical Fiber Kit
hellosignal
Optical Fiber cable
1 km, 2 km, 3 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI

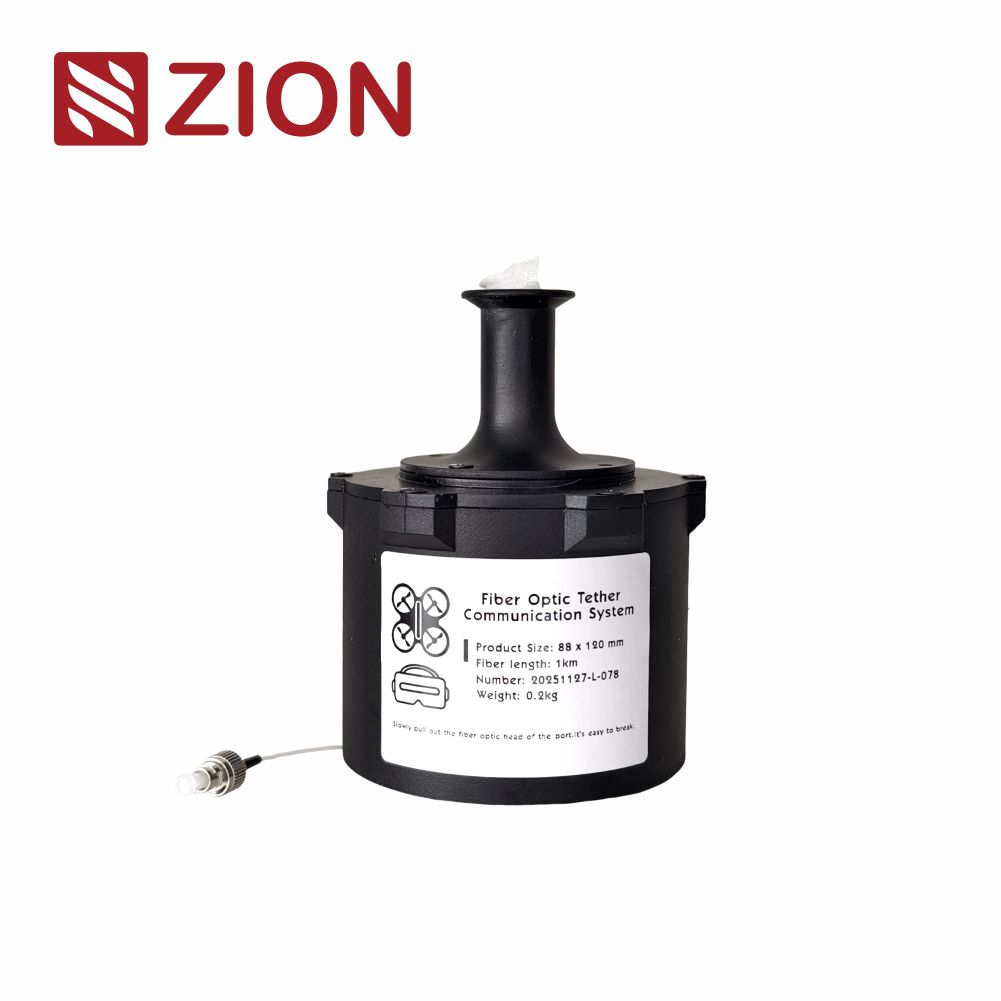

Ultra-micro 0.28 mm G657A2 fiber optic spool designed for UAV, FPV, robotics, and industrial inspection applications. Lightweight, transparent epoxy-resin coated, and supplied in rugged ABS disposable cartridges.
ZION’s FPV Disposable Fiber-Optic Spool is built for long-distance HD data transmission in environments where stability and anti-interference performance are critical.
Using a 0.28 mm G657A2 bend-insensitive fiber, it offers ultra-low attenuation, a lightweight structure (80 g/km), and a precise FC optical interface for quick deployment.

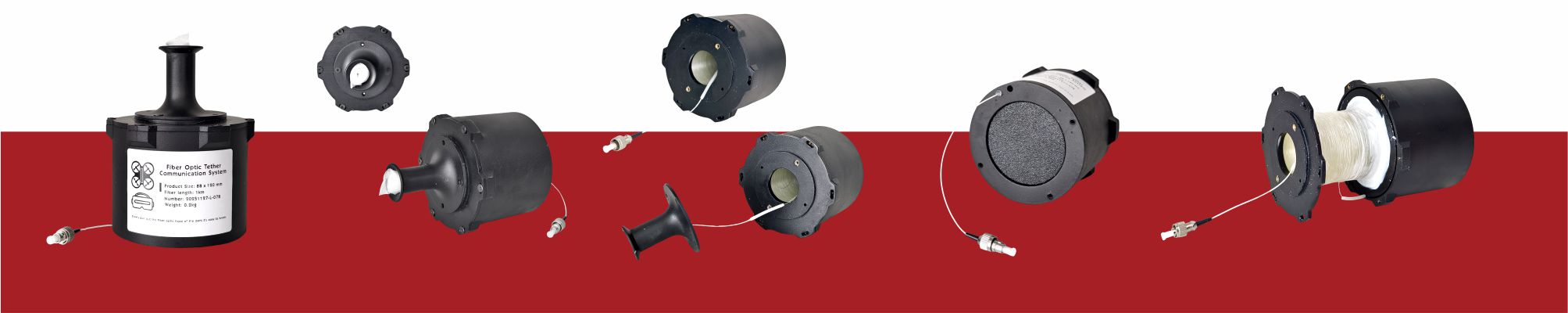

Available in 1 km, 2 km, and 3 km disposable spools with ABS housing.
Category | Specification (Common for | 1 km | 2 km | 3 km |
Model | — | FC-0.28-1 | FC-0.28-2 | FC-0.28-3 |
Fiber Length | — | 1 km | 2 km | 3 km |
Fiber Type | G657A2 | ✓ | ✓ | ✓ |
Outer Material | Epoxy Resin | ✓ | ✓ | ✓ |
Fiber Weight | 80 g/km | ✓ | ✓ | ✓ |
Total Outer Diameter | 0.28 mm ± 0.1 mm | ✓ | ✓ | ✓ |
Operating Temperature | –40°C ~ +85°C | ✓ | ✓ | ✓ |
Exterior Color | Transparent | ✓ | ✓ | ✓ |
Optic Interface | FC | ✓ | ✓ | ✓ |
1310 nm Attenuation (Std.) | ≤0.35 dB/km | ✓ | ✓ | ✓ |
1550 nm Attenuation (Std.) | ≤0.25 dB/km | ✓ | ✓ | ✓ |
1310 nm Measured | 0.329 dB/km | ✓ | ✓ | ✓ |
1550 nm Measured | 0.185 dB/km | ✓ | ✓ | ✓ |
Box Material | ABS (Black) | ✓ | ✓ | ✓ |
Box Size | — | 88 × 121 mm | 88 × 121 mm | 121 × 246 mm |
Fiber + Box Weight | — | 260 g | 330 g | 600 g |
Single Slotted Carton Size (L×W×H) | 425 × 185 × 155 mm | ✓ | ✓ | ✓ |
Single Carton Weight (No Module) | 0.3 kg | ✓ | ✓ | ✓ |
9-Slot Carton Size (L×W×H) | 540 × 449 × 445 mm | ✓ | ✓ | ✓ |
9-Slot Carton Weight | 1.15 kg | ✓ | ✓ | ✓ |

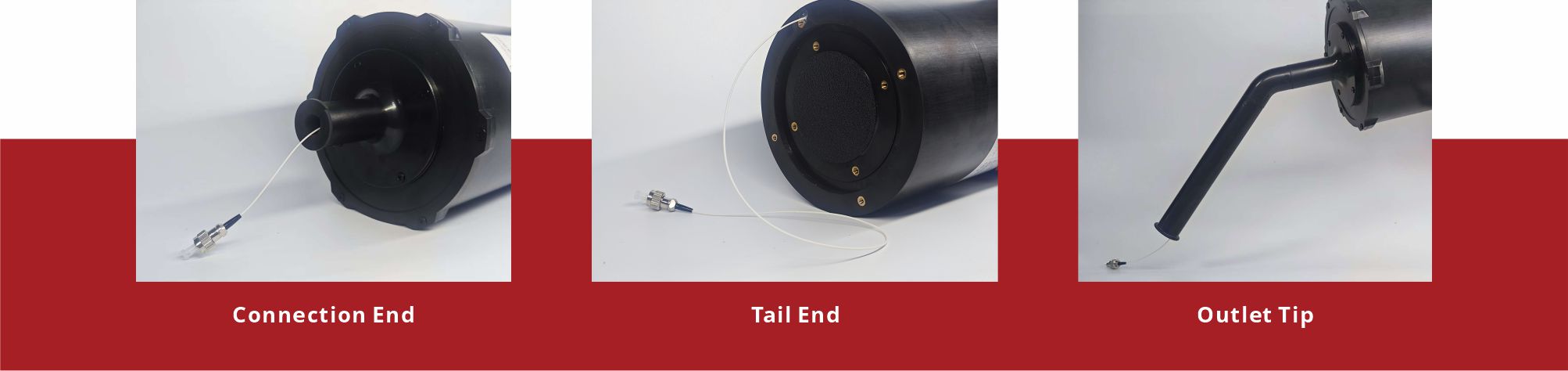

Threaded Locking Mechanism:
FC connectors have a variation in their locking mechanism; these adapters are held fast to the plug via a screw-type thread instead of the push-pull coupling used in SC/LC connectors. This ensures that the plug remains connected irrespective of vibration or movement.
Housing of Metal Ferrule:
The body is generally of steel or brass with nickel plating as the connectors are manufactured to provide mechanical strength of high standard, temperature stability, and resistance to wear.
High-Precision Ceramic Ferrule (Ø2.5 mm):
The ceramic ferrule is extremely precise for fiber alignment in the ferrule with < 0.3 dB insertion loss and < 50 dB back reflection.
• Ultra-light 0.28 mm micro-diameter fiber
• G657A2 bend-insensitive, low-loss optical transmission
• Disposable ABS spool design for fast field replacement
• Professional FC optical interface
• Transparent epoxy resin coating — flexible & durable
• Suitable for FPV drones, UAV tethering, ROV/AUV guidance, inspection robots
• FPV long-range transmission
• UAV optical tether systems
• Pipeline / tunnel robots
• ROV/AUV disposable tether reels
• High-EMI / anti-jamming environments
• Industrial inspection communication
James is a technical manager and associate at Zion Communication.
Specializes in Optical Fiber communications, FTTH Solutions,
Fiber optic cables, ADSS cable, and ODN networks.
james@zion-communication.com
+86 13777460328
