Standard Drum Drone Optical Fiber Kit | Long-Range Anti-Interference UAV Tether System

■ Product Summary

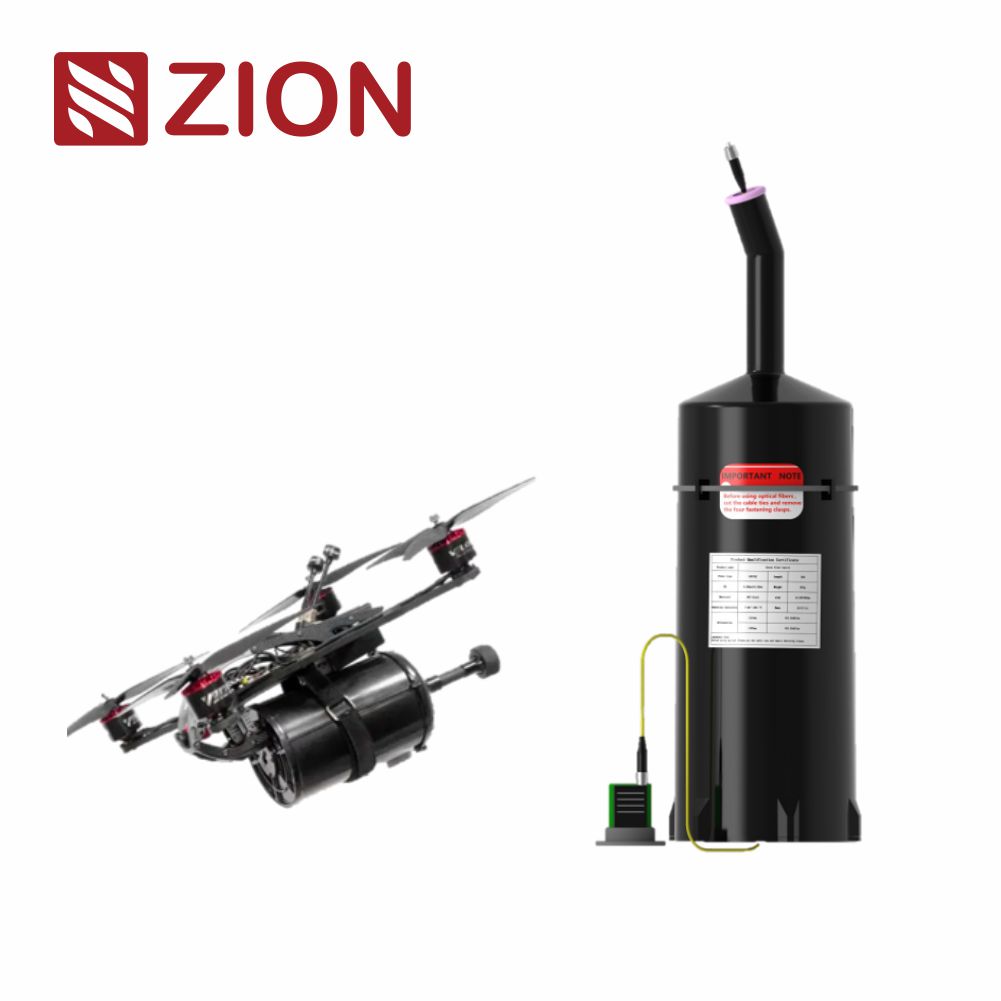

Standard Drum Drone Optical Fiber Kit is a non-EMI long-distance optical tether for professional UAV missions.

The G.657A2 bend-sensitive fiber and a precision drum controller provide the anti-jamming low-latency communication solution in the harsh electromagnetic environment.

Compared to other communication links, the tethered fiber provides:

The most common applications are emergency networking, reconnaissance, industrial inspection, surveying, plant protection, and more.

■ Key Features

• High Anti-Interference Capability
  Resistant to EM noise, GPS jamming, RF pollution, enemy activities

• HD High Distance Telemetry
  Standard 5–40 km (custom optional to 100 km)
  ≥10Gbps bandwidth for 4K/HD video, telemetry, control channels

• Lightweight G.657A2 Optical Fiber
  ≥0.27 mm ± 0.1 mm thickness, <70 g/km weight

• Robust Drum Structure
  Industrial grade ABS canister

• Multi-drone Interface Supported
  Supports multiple platform types:
  – FPV multi-rotor and fixed-wings
  – RC ground vehicle / robots
  – Custom interface (SC/LC/FC/ST) supported

• Rugged-In-Environment Support
  Environment temperature: –40°C to +85°C
  Rain + sand resistant (IP53)
  Wind resistance: Level 6
  Can be used in: city, forest, desert, tunnel

• Fiber Technical Parameters


  Item	Specification
  Fiber Type	G.657A2 bend-insensitive
  Fiber Diameter	0.27 mm ± 0.1 mm
  Color	Natural transparent
  Weight	80 g/km
  Connector Options	SC / LC / FC / ST
  Transmission Rate	≥10Gbps
  1310 nm Loss	≤0.35 dB/km
  1550 nm Loss	≤0.25 dB/km
  Operating Temp	–40°C ~ +85°C

• Drum Canister Parameters

  | Length Options | 5 km / 10 km / 15 km / 20 km / 25 km / 30 km / 40 km |
  | Outside Diameter | 13 cm (≤25 km) / 19 cm (≥30 km) |
  | Height | 36 cm (≤25 km) / 43 cm (≥30 km) |
  | Material | ABS industrial-grade housing |
  | Empty Weight | 161 g / 293 g (depending on model) |

• Environmental & Mechanical Performance

  Parameter	Value
  Weather Protection	IP53
  Wind Resistance	Level 6
  Terrain Adaptability	All-terrain (forest, urban, mountain, desert, tunnel)
  Drone Load Impact	<70 g/km fiber weight, suitable for most UAVs
  Durability	Designed for long-term outdoor deployment

• Anti-Jammed Fiber Link

  Best solution for strong EMI districts, military vicinity, substations, mines, urban conflicts

• Real-time Low Latency
  Perfect for high-risk missions with live video and command feedback

• Flight Stability
  Controlled fiber spool delivery, resistant to twisting and wrapping
  Can be used with multiple platforms

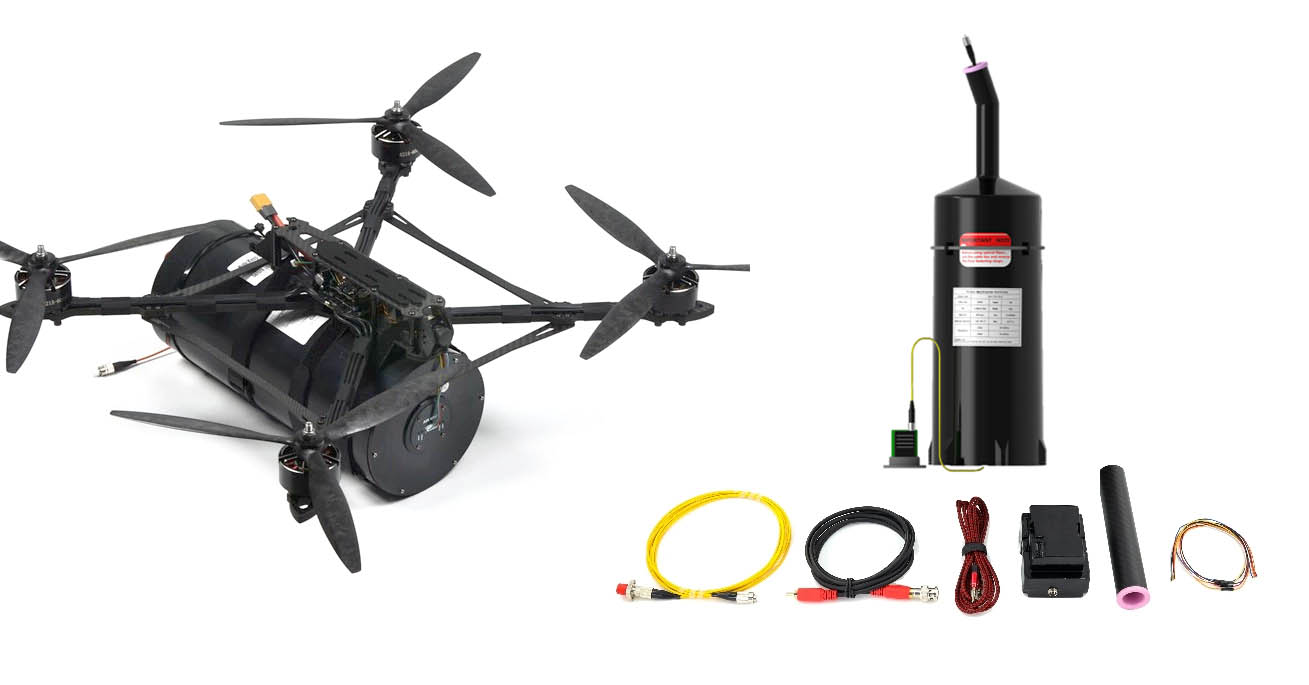

• Plug-n-play Fiber Kit
  Compatible with standard HD video/Ethernet converters and OEM optical modules

■ FPV Drone Fiber-Optic Tether 30 Min Flight Test

■ Application Scenarios

Emergency & Public Safety

• Search & rescue missions

• Communication in disaster zones

• Communication schemes in the field

Reconnaissance & Intelligence

• Strategic surveillance

• Intelligence penetration

• Border patrolling

Industrial & Utility Inspection

• Powerline inspection operations

• Oil & gas pipeline surveillance

• Railroad/tunnel inspection missions

Agriculture & Forestry

• Plateau tree monitoring

• Spraying inspection telemetry

• Plantation surveys

Scientific & Environmental Reconnaissance

• Island & mountain research

• Mountain terrain collection

• Underground/cave surveys
