FPV Drone Optical Fiber Kit
hellosignal
Optical Fiber cable
5 km / 10 km / 15 km / 20 km / 30 km
roll, carton, pallet
Normally 15 working days
NINGBO, SHANGHAI
Item | ZC-27/5/10/15/20/30KM |

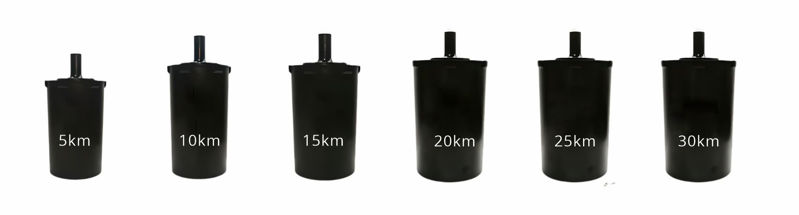

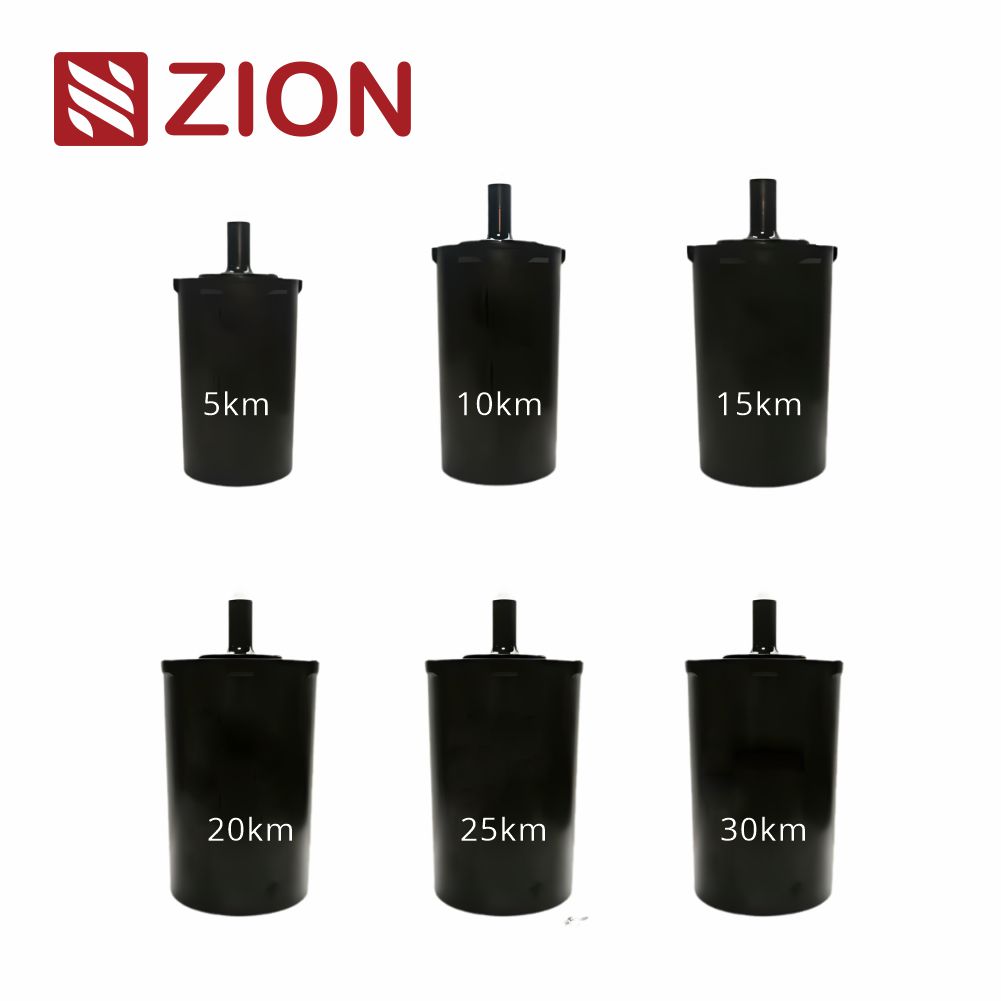

Available Fiber Lengths | 5 km / 10 km / 15 km / 20 km / 30 km |

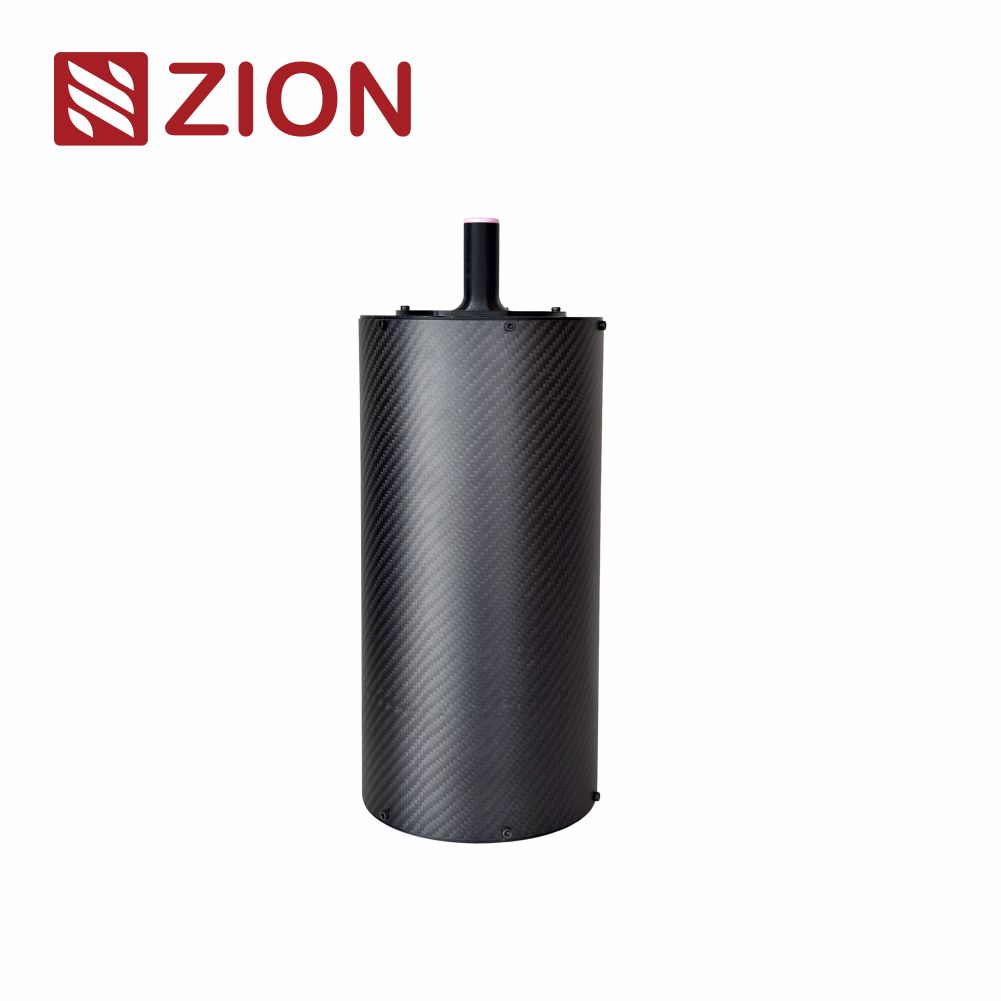

Product Name | FPV Drone Optical Fiber Release Kit |
Fiber Type | G.657A2 |
Jacket Material | — |
Fiber Outer Diameter (OD) | 0.27 mm ± 0.1 mm |
Operating Temperature | −40 °C ~ +85 °C |
Fiber Color | Natural (transparent) |
Connector Type | Optional – SC / LC / FC / ST |
Cable Weight | 80 g / km |
Parameter | 1310 nm | 1550 nm | Unit |
Attenuation (Insertion Loss) | ≤ 0.35 | ≤ 0.25 | dB/km |
Typical Attenuation (WT) | 0.329 | 0.185 | dB/km |
Material | Dimension (cm) | Empty Weight (g) |
ABS | 10 × 24 cm | 110 g |
ABS | 12 × 32 cm | 160 g |
ABS | 14 × 36 cm | 200 g |

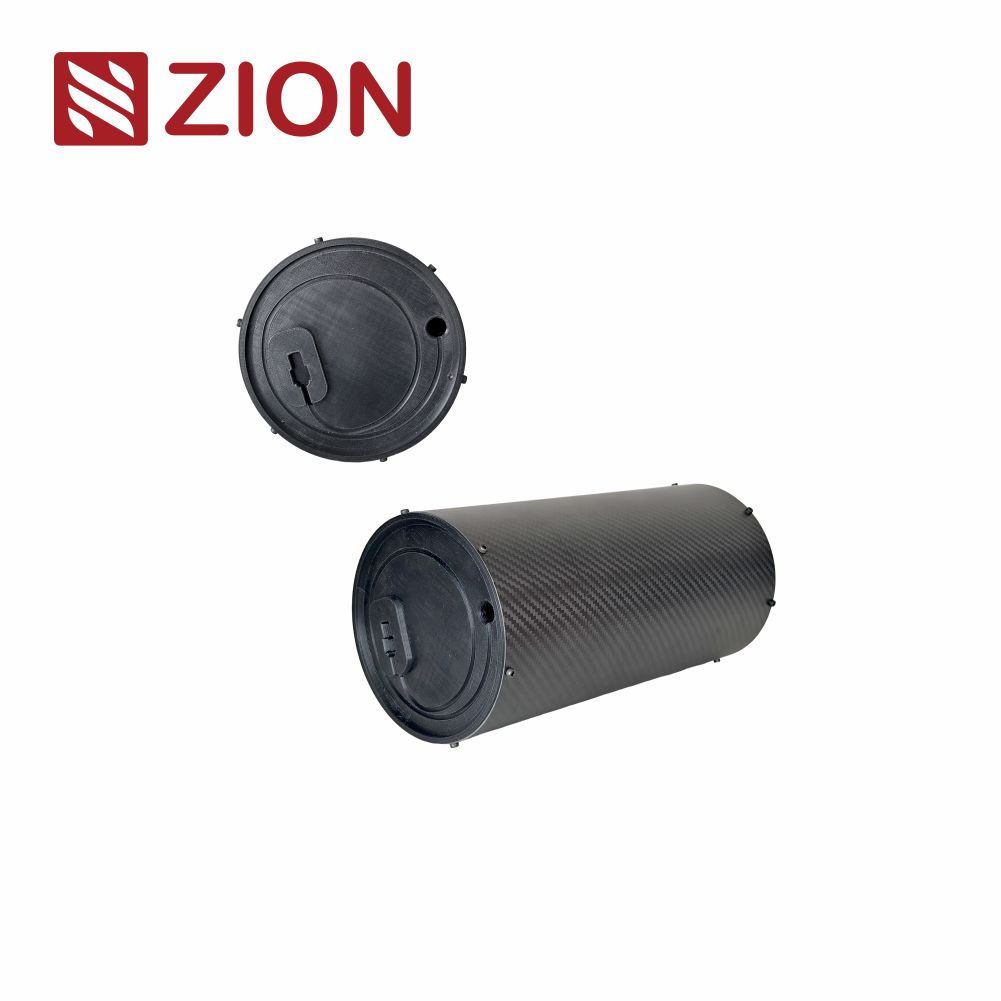

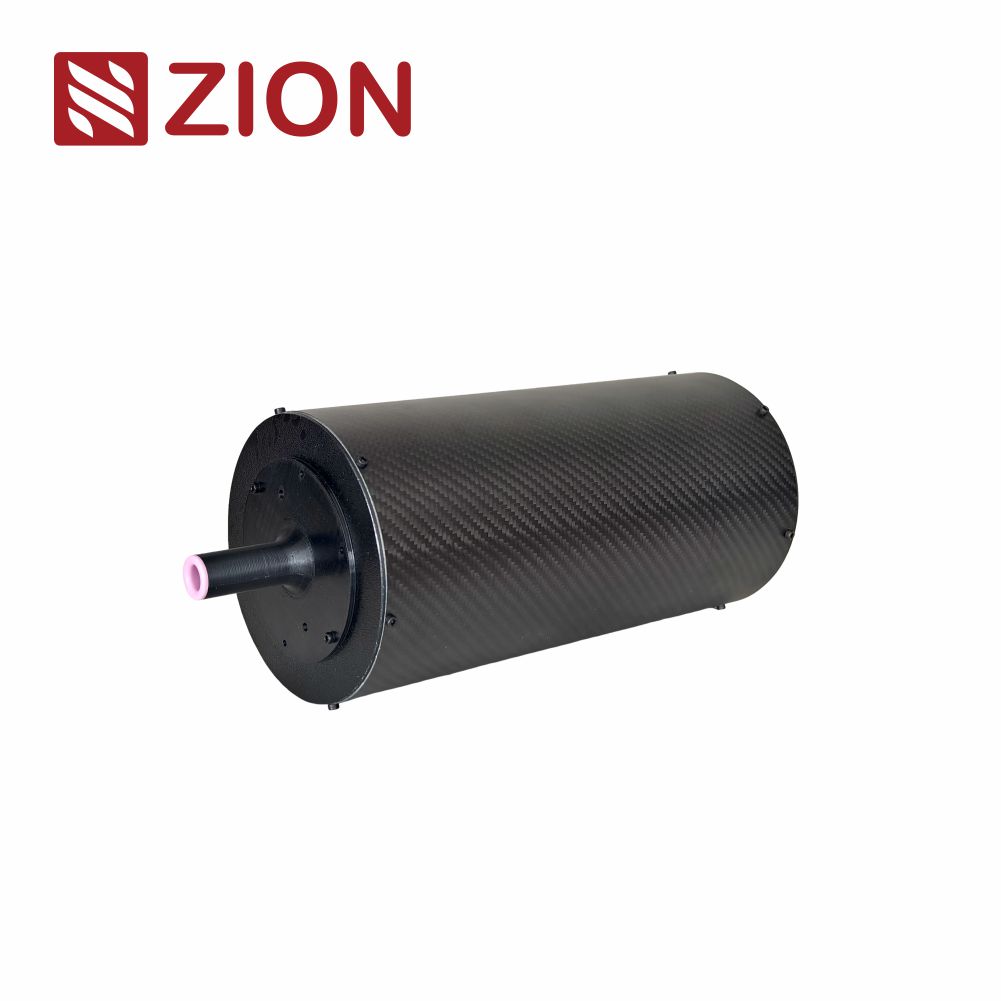

Compact and lightweight canister for UAV drone deployment
Low-loss G.657A2 bend-insensitive optical fiber
Wide temperature range suitable for field operation
Multiple connector options for flexible integration
