NO.7100410 Trunk Cable QR 565

Trunk Cable QR565
75 Ohm CATV Coaxial Cable
NO.7100410

Construction Parameters:

Inner Conductor

8AWG 3.28mm CCA

Dielectric

13.20mm Foamed PE

Outer Conductor

14.35mm Welding Aluminum Tube

Jacket

15.86mm PE Black

Jacket Thickness

0.89mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 3.15 Ω/km

Capacitance

50 ± 3 pF/m

Impedance

75 ± 2 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

87%

Sparker Test (VAC)

4

Mechanical and Environmental Properties:

Cable Bend Radius

10 times the cable diameter

Operating Temperature Range

-40 ℃ to +85℃

Cable Diamensions

15.86mm PE Black

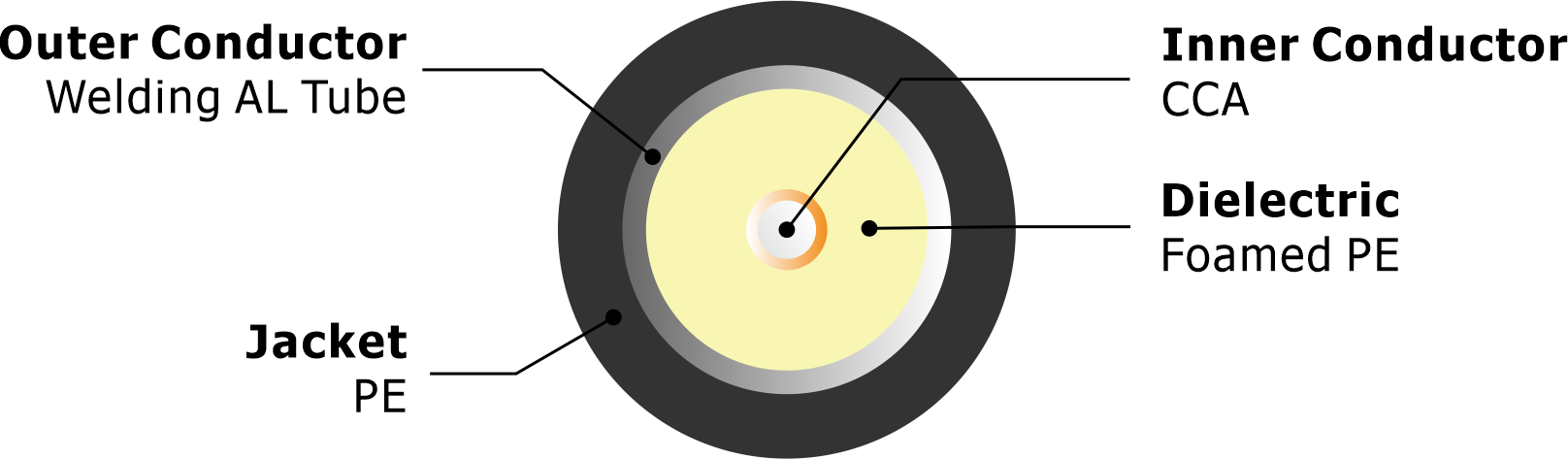

Cross Section:

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

5

0.46

55

1.54

211

3.11

250

3.38

300

3.71

350

4.04

400

4.33

450

4.59

500

4.89

550

5.12

600

5.38

750

6.07

865

6.56

1000

7.12

Order Informations:

Marking

HELLOSIGNAL Trunk Cable QR565 ×××M

Package

Inquired Length on Wooden Drum, Pallet …

Delivery Time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
