RG
hellosignal
7101201
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

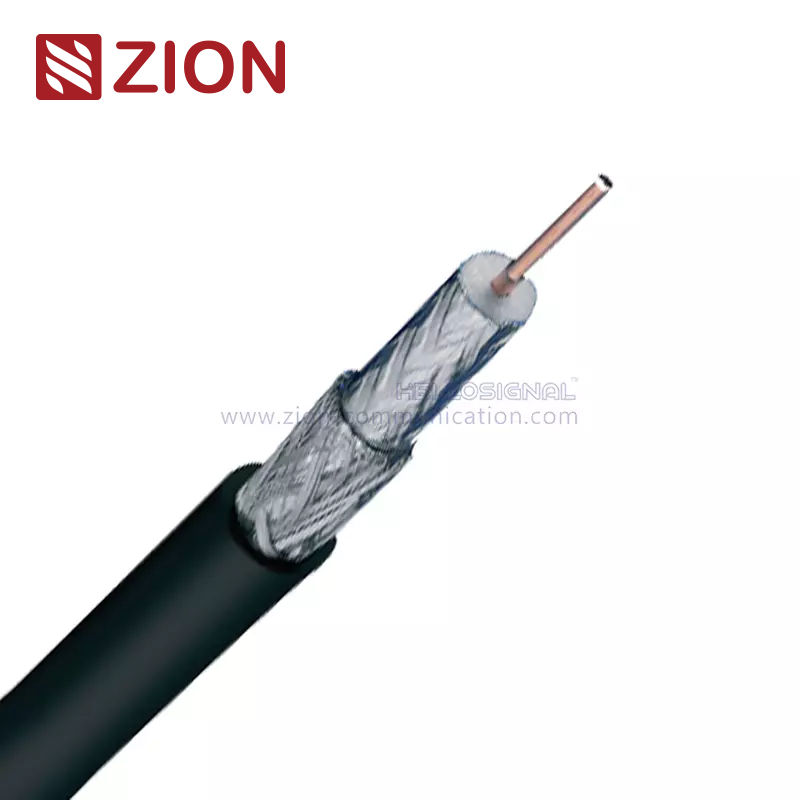

RG8
50 Ohm coaxial Cable
NO.7101201

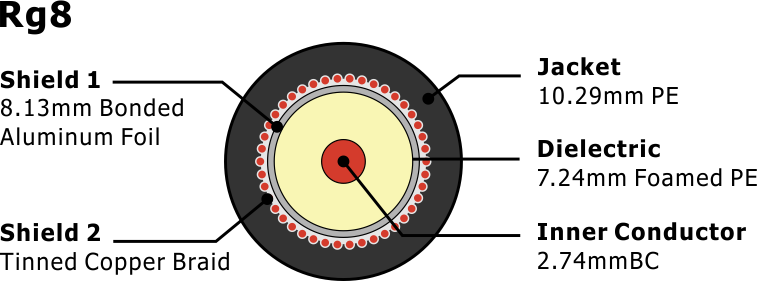

Inner Conductor: 2.74mm Copper
Dielectric: 7.24mm Foamed PE (Polyethylene)
Shield 1: 8.13mm Bonded Aluminum Foil
Shield 2: Tinned Copper Braid
Jacket: 10.29mm PE (Polyethylene)
Capacitance: 78.4 pF/m
Impedance: 50 Ω
Velocity of Propagation: 0.85
Max Operating Voltage: 4000 VMS
Shielding Effectiveness (dB): >90
Cable Bend Radius: Not specified
Operating Temperature Range: -40℃ to 80℃
Cable Dimensions: 10.29mm (Diameter)
Marking: HELLOSIGNAL RG8 50 Ohm COAXIAL CABLE 7101201 ×××M/FT
Package Options: Inquired length on reel, pull box, plastic spool, wooden spool, pallet, etc.
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL® or OEM
RG8
50 Ohm coaxial Cable
NO.7101201
Inner Conductor: 2.74mm Copper
Dielectric: 7.24mm Foamed PE (Polyethylene)
Shield 1: 8.13mm Bonded Aluminum Foil
Shield 2: Tinned Copper Braid
Jacket: 10.29mm PE (Polyethylene)
Capacitance: 78.4 pF/m
Impedance: 50 Ω
Velocity of Propagation: 0.85
Max Operating Voltage: 4000 VMS
Shielding Effectiveness (dB): >90
Cable Bend Radius: Not specified
Operating Temperature Range: -40℃ to 80℃
Cable Dimensions: 10.29mm (Diameter)
Marking: HELLOSIGNAL RG8 50 Ohm COAXIAL CABLE 7101201 ×××M/FT
Package Options: Inquired length on reel, pull box, plastic spool, wooden spool, pallet, etc.
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL® or OEM
