Cable & Wire | High quality and excellent service at reasonable prices.
info@zion-communication.com
 |
RG
hellosignal
7101205
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
50OhmcoaxialCable NO.7101205 | ||||
Construction Parameters: | ||||
Inner Conductor | 19×0.18mm Tinned Copper | |||
Dielectric | 2.95mm Solid PE | |||
Shield | Nom. 3.50mm Copper | |||
Jacket | 4.95mm PVC | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 101.05 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.66 | |||
Max Operating Voltage | 1900 VMS | |||
Shielding Effectiveness(>dB) | 70 | |||
RoHS | YES | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius | ||||
Operating Temp Range | -20 ℃ to 80℃ | |||
Cable diamensions | 4.95mm | |||

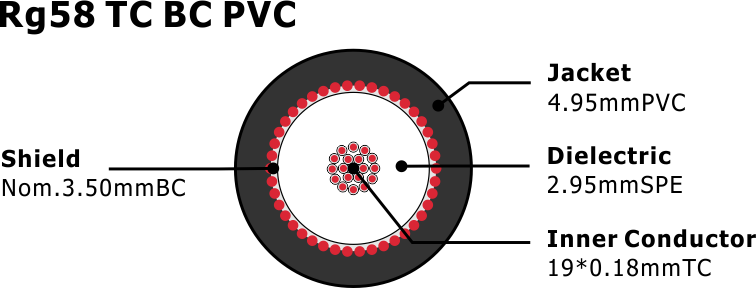

Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
100 | 15.10 | |||
400 | 30.80 | |||
1000 | 50.20 | |||
Order Informations: | ||||
Marking | HELLOSIGNAL RG58 TC BC PVC | |||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
50OhmcoaxialCable NO.7101205 | ||||
Construction Parameters: | ||||
Inner Conductor | 19×0.18mm Tinned Copper | |||
Dielectric | 2.95mm Solid PE | |||
Shield | Nom. 3.50mm Copper | |||
Jacket | 4.95mm PVC | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 101.05 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.66 | |||
Max Operating Voltage | 1900 VMS | |||
Shielding Effectiveness(>dB) | 70 | |||
RoHS | YES | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius | ||||
Operating Temp Range | -20 ℃ to 80℃ | |||
Cable diamensions | 4.95mm | |||
Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
100 | 15.10 | |||
400 | 30.80 | |||
1000 | 50.20 | |||
Order Informations: | ||||
Marking | HELLOSIGNAL RG58 TC BC PVC | |||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||

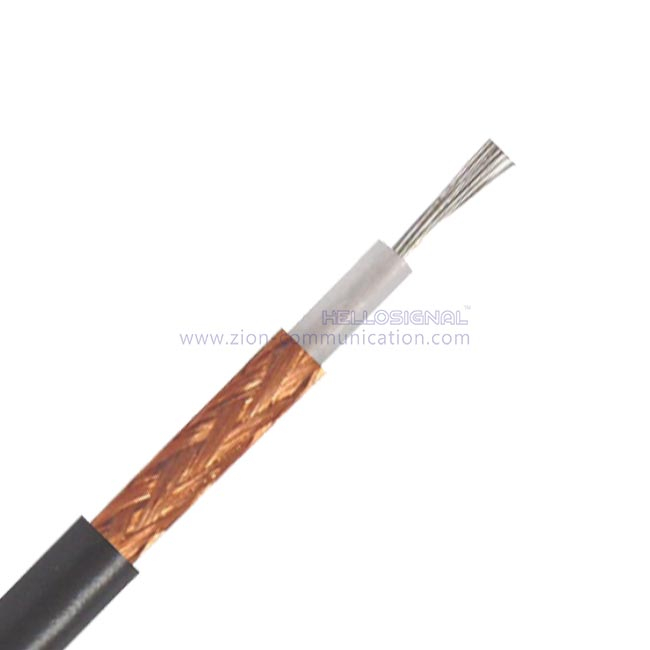

RG58 TC BC PVC
