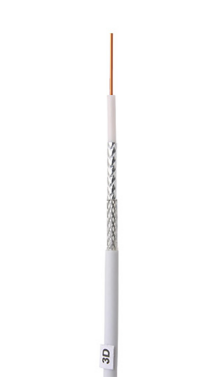

NO.7101401 3D-FB BC TC PE

3D-FB BC TC PE
NO.7101401

Construction Parameters:

Inner Conductor

1.07mm Bare Copper

Dielectric

3.00mm Foamed PE

Shield

Bonded AL-Foil

Outer Conductor

Nom. 3.55mm Tinned Copper Braid

Jacket

5.40mm PE Black

Jacket Thickness

Application

Electrical Characteristics:

Capacitance

82 pF/m

Impedance

50 Ω

Velocity of Propagation

81%

Inner Conductor DCR

19.2 Ω/km

Outer Conductor DCR

16.3 Ω/km

Shielding Effectiveness

≥ 80 dB

Return Loss

≥ 20 dB

RoHS

Yes

Mechanical and Environmental Properties:

Cable Bend Radius

27mm

Operating Temp Range

-40 ℃ to +85℃

Cable Diamensions

5.40mm

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

150

13.00

280

17.50

350

19.50

400

21.00

800

30.00

900

31.60

1200

37.00

1500

41.50

1900

45.60

2000

48.20

2500

54.10

Order Informations:

Marking

HELLOSIGNAL 3D-FB 50 Ohm COAXIAL CABLE×××M

Package

Inquired Length on Roll, Wooden Spool, Pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
