NO.7101401 3D-FB BC TC PE

3D-FB BC TC PE

NO.7101401

■ Construction Parameters:

Inner Conductor: 1.07 mm Bare Copper

Dielectric: 3.00 mm Foamed PE

Shield: Bonded AL-Foil

Outer Conductor: Nom. 3.55 mm Tinned Copper Braid

Jacket: 5.40 mm PE Black

Jacket Thickness: Not specified

Application: Not specified in the provided information

■ Electrical Characteristics:

Capacitance: 82 pF/m

Impedance: 50 Ω

Velocity of Propagation: 81%

Inner Conductor DCR: 19.2 Ω/km

Outer Conductor DCR: 16.3 Ω/km

Shielding Effectiveness: ≥ 80 dB

Return Loss: ≥ 20 dB

RoHS Compliance: Yes

■ Mechanical and Environmental Properties:

Cable Bend Radius: 27 mm

Operating Temperature Range: -40 ℃ to +85 ℃

Cable Dimensions: 5.40 mm

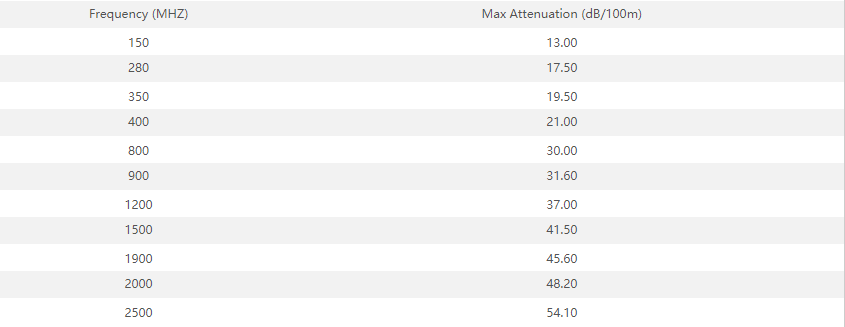

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL 3D-FB 50 Ohm COAXIAL CABLE ×××M (or per customer's request)

Package: Inquired Length on Roll, Wooden Spool, Pallet (or per customer's request)

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® or OEM
