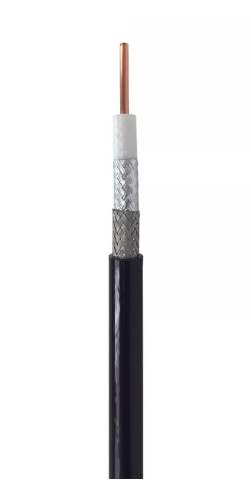

NO.7101408e 8D-FB CCA TC PE

Construction Parameters:

Inner Conductor

2.80±0.03mm Copper Clad Aluminum

Dielectric

7.80±0.15mm Foamed PE

Shield

Bonded AL/PET/AL Foil

Outer Conductor

Nom. 8.60mm Tinned Copper  Braid 86% Coverage

Jacket

11.1±0.2mm PE Black

Electrical Characteristics:

Capacitance

84 pF/m

Impedance

50±2 Ω

Velocity of Propagation

83%

Dc Test Voltage

2500V

Jacket spark

4000 V.RMS

Shielding Effectiveness

≥ 80 dB

Return Loss

≥ 20.8 dB

RoHS

Yes

Mechanical and Environmental Properties:

Min. Cable Bend Radius

 60 mm

Operating Temp. Range

-40 ℃ to +80℃

Installation Temp. Range

-30 ℃ to +60℃

Max.Tensile Strength

73 kg

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

150

5.00

280

7.10

350

8.20

400

8.40

800

12.10

900

12.80

1200

16.30

1500

18.40

1900

21.40

2000

22.30

2400

24.60

3000

28.20

Order Informations:

Marking

HELLOSIGNAL SKU.7101408e  8D-FB 50 Ohm COAXIAL CABLE ×××M

Package

500M/Wooden Drum, 1000M/Wooden Drum

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
