JIS C 50
hellosignal
7101408
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

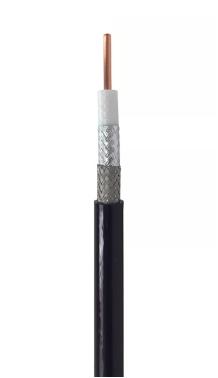

8D-FB BC TC PE 50 ohm coaxial cable | ||||||||
Construction Parameters: | ||||||||
Inner Conductor | 2.80±0.03mm Bare Copper | |||||||
Dielectric | 7.80±0.15mm Foamed PE | |||||||
Shield | Bonded AL-Foil | |||||||
Outer Conductor | Nom. 8.60mm Tinned Copper Braid 86% Coverage | |||||||
Jacket | 11.1±0.2mm PE Black | |||||||
Electrical Characteristics: | ||||||||
Capacitance | 84 pF/m |
| ||||||
Impedance | 50±2 Ω | |||||||
Velocity of Propagation | 83% | |||||||
Dc Test Voltage | 2500V | |||||||
Jacket spark | 4000 V.RMS | |||||||
Shielding Effectiveness | ≥ 80 dB | |||||||
Return Loss | ≥ 20.8 dB | |||||||
RoHS | Yes | |||||||
Mechanical and Environmental Properties: | ||||||||
Min. Cable Bend Radius | 60 mm | |||||||
Operating Temp. Range | -40 ℃ to +80℃ | |||||||
Installation Temp. Range | -30 ℃ to +60℃ | |||||||
Tensile Strength | 73 kg | |||||||
Attenuation(20℃): | ||||||||
Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
150 | 5.00 | |||||||
280 | 7.10 | |||||||
350 | 8.20 | |||||||
400 | 8.40 | |||||||
800 | 12.10 | |||||||
900 | 12.80 | |||||||
1200 | 16.30 | |||||||
1500 | 18.40 | |||||||
1900 | 21.40 | |||||||
2000 | 22.30 | |||||||
2400 | 24.60 | |||||||
3000 | 28.20 | |||||||
Order Informations: | ||||||||
Marking | HELLOSIGNAL 8D-FB 50 Ohm COAXIAL CABLE ×××M | |||||||
Package | Inquired Length on Roll, Wooden Spool, Pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
Online Service: | ||||||||
Skype | 0086 15088607575 | |||||||
0086 15088607575 | ||||||||
