JIS C 50
hellosignal
7101411
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

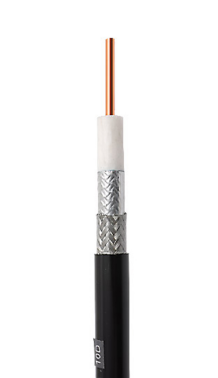

10D-FB BC TC PE | ||||||||
Construction Parameters: | ||||||||
Inner Conductor | 3.50mm Bare Copper | |||||||
Dielectric | 10.00mm Foamed PE | |||||||
Shield | Bonded AL-Foil | |||||||
Outer Conductor | Nom. 10.80mm Tinned Copper Braid | |||||||
Jacket | 13.00mm PE Black | |||||||
Jacket Thickness | ||||||||
Application | ||||||||
Electrical Characteristics: | ||||||||
Capacitance | 82 pF/m | | ||||||
Impedance | 50 Ω | |||||||
Velocity of Propagation | 83% | |||||||
Inner Conductor DCR | 1.8 Ω/km | |||||||
Outer Conductor DCR | 6.4 Ω/km | |||||||
Shielding Effectiveness | ≥ 80 dB | |||||||
Return Loss | ≥ 20 dB | |||||||
RoHS | Yes | |||||||
Mechanical and Environmental Properties: | ||||||||
Cable Bend Radius | 65mm | |||||||
Operating Temp Range | -40 ℃ to +85℃ | |||||||
Cable Diamensions | 13.00mm | |||||||
Attenuation(20℃): | ||||||||
Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
150 | 4.10 | |||||||
280 | 5.70 | |||||||
350 | 6.40 | |||||||
400 | 6.90 | |||||||
800 | 10.30 | |||||||
900 | 11.00 | |||||||
1200 | 13.10 | |||||||
1500 | 15.00 | |||||||
1900 | 17.40 | |||||||
2000 | 18.00 | |||||||
2500 | 20.50 | |||||||
Order Informations: | ||||||||
Marking | HELLOSIGNAL 10D-FB 50 Ohm COAXIAL CABLE ×××M | |||||||
Package | Inquired Length on Roll, Wooden Spool, Pallet … | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
