NO.7101410 8D-FB CCA TCCA PE

  • JIS C 50

  • hellosignal

  • 7101410

  • Coaxial Cable

  • 50 ohm

  • UL, ETL, CE,CPR, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 10KM

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

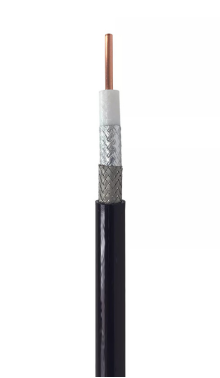

8D-FB CCA TCCA PE
NO.7101410


Construction Parameters:

Inner Conductor

2.80mm Copper Clad Aluminum

Dielectric

7.80mm Foamed PE

Shield

Bonded AL-Foil

Outer Conductor

Nom. 8.60mm Tinned Copper Clad Aluminum Braid

Jacket

10.30mm PE Black

Jacket Thickness


Application











Electrical Characteristics:

Capacitance

82 pF/m


Impedance

50 Ω

Velocity of Propagation

83%

Inner Conductor DCR

4.4 Ω/km

Outer Conductor DCR

9.4 Ω/km

Shielding Effectiveness

≥ 80 dB

Return Loss

≥ 20 dB

RoHS

Yes











Mechanical and Envrionmental Properties:

Cable Bend Radius

 52mm


Operating Temp Range

-40 ℃ to +85℃


Cable Diamensions

10.30mm




Attenuation(20℃):

Frequency (MHZ)


Max Attenuation (dB/100m)

150


5.20

280


7.30

350


8.20

400


8.60

800


12.30

900


13.00

1200


16.50

1500


18.70

1900


21.70

2000


22.50

2500


25.50










Order Informations:

Marking

HELLOSIGNAL 8D-FB 50 Ohm COAXIAL CABLE ×××M

Package

Inquired Length on Roll, Wooden Spool, Pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
