Specification
RG 213 Coaxial Cable
Construction Parameters: | ||
Inner Conductor | 7×0.752mm Bare Copper | |
Dielectric | 7.24mm Solid PE | |
Shield | Nom. 7.85mm Bare Copper | |
Jacket | 10.30mm PVC (Color by your choise) | |
Electrical Characteristics: | ||
Capacitance | 101.05 pF/m | |
Impedance | 50 Ω | |
Velocity of Propagation | 0.66 | |
Max Operating Voltage(KVMS) | 3.7 | |
Operating Temp Range (PVC) | -25 ℃ to 70℃ | |
RoHS | YES | |

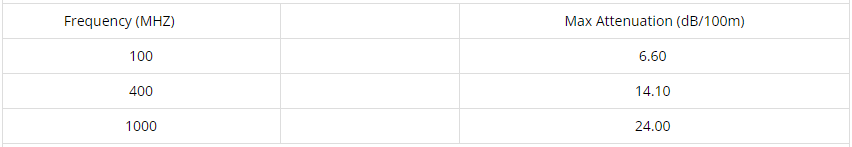

Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 6.60 | |
400 | 14.10 | |
1000 | 24.00 | |
Order Informations: | ||
Marking | HELLOSIGNAL RG 213 COAXIAL CABLE XXX M (or Per customer's request) | |
Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request) | |
Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
Delivery time | Normally 15 days after received the deposit. | |
More informations | please contact with us. | |
Brand | HELLOSIGNAL® OR OEM |
Packing
