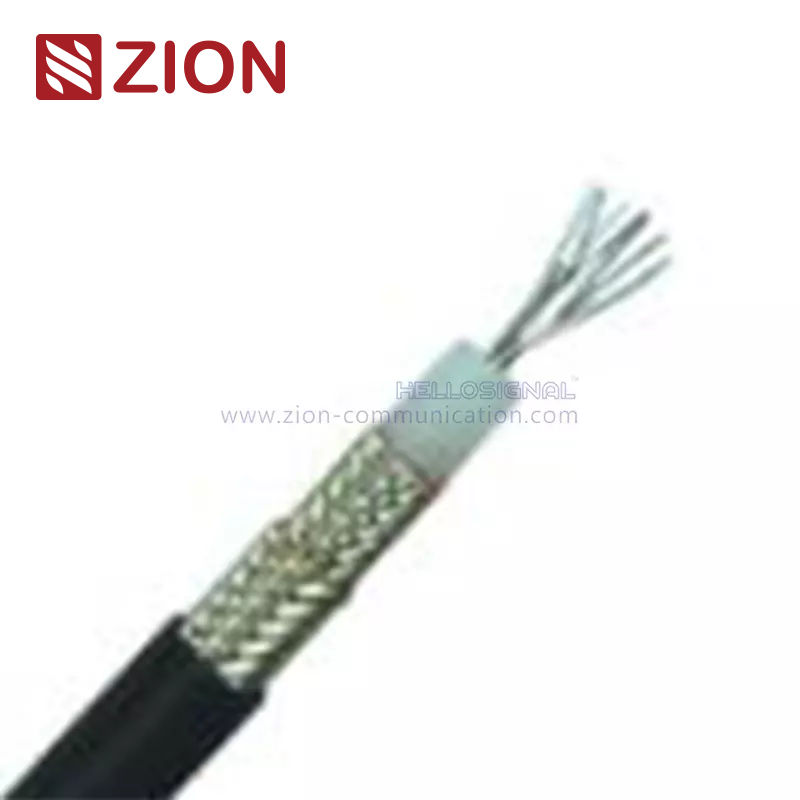

RG 304 Coaxial Cable

■ Construction Parameters:

Inner Conductor: 1.50 mm Silver Plated Copper Clad Steel

Dielectric: 4.70 mm PTFE

Shield: Nom. 5.70 mm Double Silver Plated Copper

Jacket: 7.11 mm FEP (Color by your choice)

■ Electrical Characteristics:

Capacitance: 96.45 pF/m

Impedance: 50 Ω

Velocity of Propagation: 0.7

Max Operating Voltage (KVMS): 3

Operating Temperature Range (PVC): -55 ℃ to 200 ℃

RoHS Compliance: YES

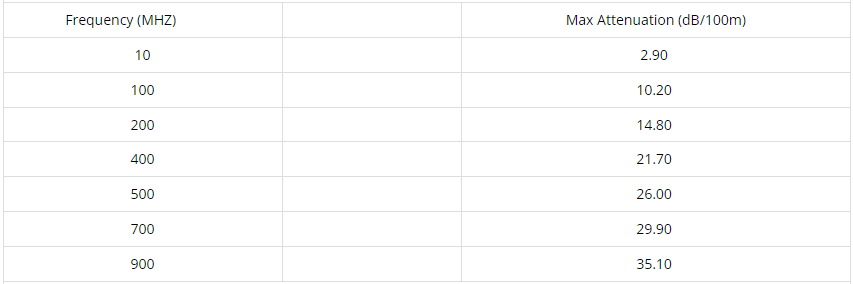

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL RG 304 COAXIAL CABLE XXX M (or per customer's request)

Inner Package: 100m/Roll, 100m/Spool, 305m/Spool (or per customer's request)

Outer Package: Carton, Color Box, Pallet (or per customer's request)

Delivery Time: Normally 15 days after receiving the deposit

More Information: Please contact us

Brand: HELLOSIGNAL® or OEM



Construction Parameters:
Inner Conductor	1.50mm Silver Plated Copper Clad Steel
Dielectric	4.70 PTFE
Shield	Nom. 5.70mm Double Silver Plated Copper
Jacket	7.11mm FEP (Color by your choise)
Electrical Characteristics:
Capacitance	96.45 pF/m
Impedance	50 Ω
Velocity of Propagation	0.7
Max Operating Voltage(KVMS)	3
Operating Temp Range  (PVC)	-55 ℃ to 200℃
RoHS	YES
Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
100		8.20
400		17.40
1000		28.90
3000		55.10
5000		75.50
Order Informations:
Marking	HELLOSIGNAL RG 304 COAXIAL CABLE  XXX M  (or Per customer's request)
Inner Package	100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
Outer Package	Carton, Color Box, Pallet (or Per customer's request)
Delivery time	Normally 15 days after received the deposit.
More informations	please contact with us.
Brand	HELLOSIGNAL® OR OEM
