Trunk Coax Cable QR 500 75 Ohm CATV coaxial Cable

CATV coaxial cable description
ZION COMMUNICATION supplies a wide range of CATV coaxial cables for today’s wireless
and broadband networks, through all areas of a network to transport broadband data.
These 75 Ohm screened low loss cables offer optimum performance for main trunk
/ distribution use in IRS, MATV and CATV systems where extended cable runs are required.
These products are available to support most systems, for CATV network distribution,
whatever part of the network, whether the trunk cables, head end cable products
or indeed the drop cables into the home.All HANGZHOU ZION COMMUNICATION CO.,LTD
CATV Coaxial cables comply with International standards within the industry. If you do not
find the product you need in then we offer the option of a special custom design cable.
Here you can choose between different constructions, jacket color or other materials etc.

Key Features
Physical Foamed dielectric, preventing water ingress, mechanically robust and stable
attenuation to 3 GHz Optimum shielding with excellent protection against interference
and improved mechanical strength Wide product range, to suit a wide range of applications
and environments, available in a range of jacket materials.

Why chose us as your partner?
  ● Price: You can get ultimate reasonable factory price of the CATV coaxial cable itself from us!
  ● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  ● Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

Trunk Coax Cable QR 500
75 Ohm CATV coaxial Cable
NO.7100472

Construction Parameters:

Inner Conductor

0.109" /2.77mm CCA

Dielectric

0.450"/11.43mm Foamed PE

Shield 1

0.500"/12.70mm Soldering Aluminum Tube

Shield Thickness

0.0255" /0.65mm

Jacket

0.560"/14.22mm  PE

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor

Resistance

The Max. at 20℃ shall be<4.55Ω/km

Capacitance

50 ±3 pF/m

Impedance

75 ± 2 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.560"/14.22mm  PE

Cross Section

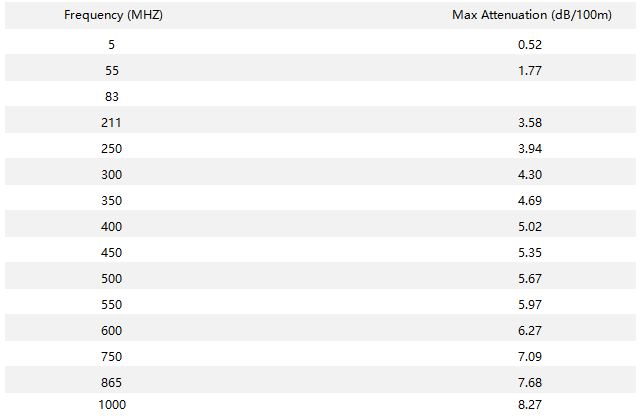

Attenuation(20℃):

Frequency (MHZ)

Nominal (dB/100m)

5.00

0.52

55.00

1.77

83.00

211.00

3.58

250.00

3.94

300.00

4.30

350.00

4.69

400.00

5.02

450.00

5.35

500.00

5.67

550.00

5.97

600.00

6.27

750.00

7.09

865.00

7.68

1000.00

8.27

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations:

Marking

HELLOSIGNAL  Trunk Coax Cable QR 500
CATV COAXIAL CABLE 7100416 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^®OR OEM
