Author: Will Publish Time: 12-01-2026 Origin: Site
A practical decision guide for engineers and buyers who need reliable, PoE-ready structured cabling without over-complicating field installation.
MPTL is now a mainstream topology for ceiling / wall-mounted PoE devices in smart buildings and industrial environments.
The same 90 m horizontal length limit still applies, but PoE power and thermal performance must be considered in 2026 designs.
ZION provides a complete MPTL-ready ecosystem: CAT5e/6/6A cabling, outdoor & armoured cables, field plugs and accessories.
A Modular Plug Terminated Link (MPTL) is a structured cabling topology where the horizontal cable is terminated directly into a modular plug (typically a field-termination RJ45 plug) instead of a wall outlet or work-area jack. The opposite end is usually terminated in a patch panel or consolidation point.
In earlier generations of structured cabling, MPTL was treated as a “special case”. In 2026, it has become a mainstream design choice for ceiling-mounted, wall-mounted and outdoor devices such as AI cameras, Wi-Fi 7 access points, IP speakers and smart luminaires. The goal is simple: fewer components, fewer failure points, lower installed cost – while still complying with ANSI/TIA and ISO/IEC performance limits.

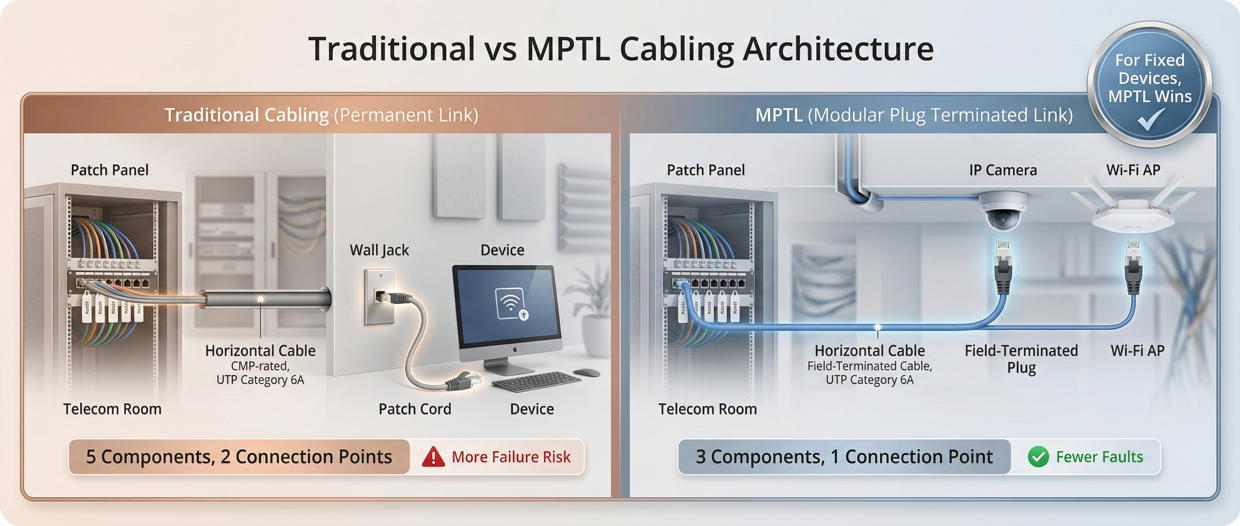

Both MPTL and traditional permanent links are recognized within modern structured cabling standards. The main difference is not the cable itself, but how many connection points and where the plugs and jacks are located.
| Aspect | Traditional Permanent Link | MPTL (Modular Plug Terminated Link) |
|---|---|---|
| Terminations | Patch panel & work-area outlet (jack) | Patch panel & field-termination plug |
| User interface | End user plugs patch cord into outlet | Device is directly plugged into cable plug |
| Typical location | Office desk, work area, furniture | Ceiling, wall, outdoor, above-ceiling spaces |
| Flexibility for future moves | High – outlet stays, patch cords change | Lower – device location is fixed to link |
| Failure points | More components & patch cords | Fewer components (no outlet patch cord) |
| Best for | User devices, dynamic office layouts | PoE edge devices and fixed infrastructure |
The strongest business case for MPTL appears wherever devices are fixed in place, powered by PoE or PoE++, and installed in ceilings, walls, outdoor locations or industrial areas where a traditional outlet adds cost without adding value.
| Device Type (2026) | Recommended Cable Category | Recommended Termination | Why MPTL Makes Sense |
|---|---|---|---|
| AI / 4K / 8K IP Cameras (PoE+ / PoE++) | CAT6 or CAT6A, outdoor / UV-resistant where required | Patch panel + field-termination plug | Ceiling/wall devices, high PoE load, no user outlet needed |
| Wi-Fi 7 Access Points (802.11be) | CAT6A F/UTP or higher for multi-gig links | Direct MPTL from telecom room | Reduces patch cords above ceiling; better cable management |
| PoE LED Lighting & Smart Luminaires | CAT6/6A – often LSZH or plenum-rated | MPTL daisy-chain or home-run (depending on design) | Highly distributed endpoints; every outlet removal saves cost |
| BMS Sensors / HVAC Controllers | CAT5e/CAT6 where bandwidth requirements are moderate | MPTL with industrial or shielded field plug | Fewer components in ceiling voids; simpler maintenance |
| Industrial PLC / Automation Nodes | CAT6/6A, often armoured or oil-resistant jackets | MPTL with ruggedized plug | Harsh environments where wall outlets are impractical |
MPTL does not change fundamental length rules: the horizontal link must still be ≤ 90 meters. However, with high-density PoE and PoE++ deployments in 2026, designers must add thermal and power considerations to avoid unplanned outages.
Length: Maintain ≤ 90 m for the fixed link; keep patch cords short and documented.
PoE Load: Higher power (up to 90 W and beyond) increases conductor temperature and voltage drop.
Cable Bundling: Tightly packed bundles with many PoE links elevate heat; consider de-rating.
Jacket & Rating: Use plenum/LSZH where required; outdoor and UV-rated jackets for external runs.

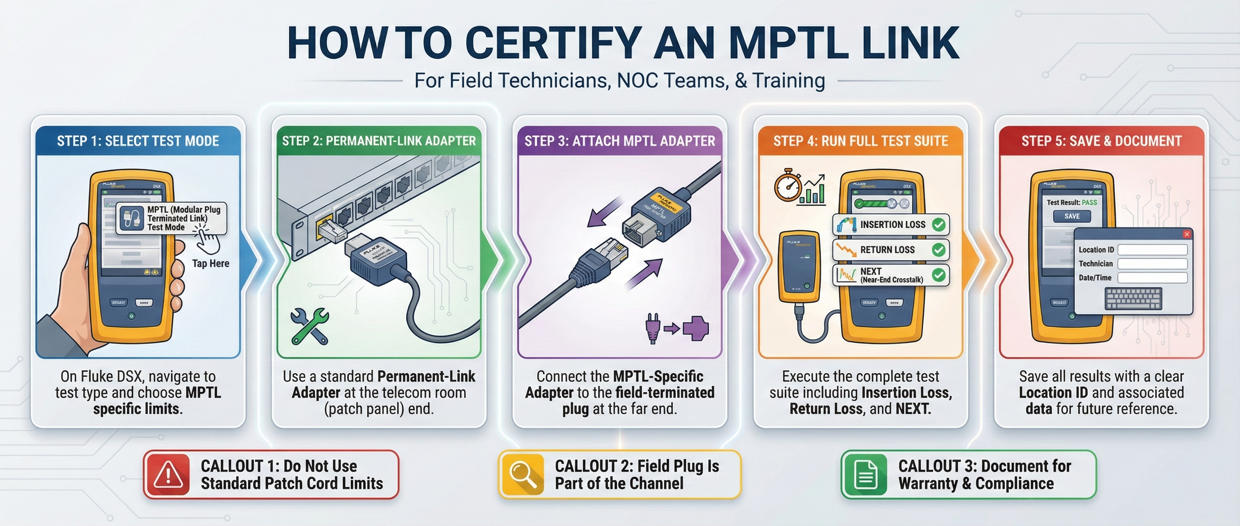

A correctly installed MPTL must also be correctly tested. Using a standard permanent-link test limit can hide plug-related issues on the device side. Modern certifiers include dedicated MPTL test limits that verify the performance of the field-termination plug as part of the link.
Select the correct test limit (e.g. MPTL CAT6A or MPTL + PoE).
Use a permanent-link adapter at the patch panel and a special MPTL / patch-cord adapter at the plug end.
Match the category and shielding type of the installed cable (CAT5e, CAT6, CAT6A; UTP vs F/UTP, etc.).
Store results in project documentation for warranty and future troubleshooting.
The following mistakes appear repeatedly on job sites and are responsible for a large percentage of intermittent failures and failed certification tests:
Using generic RJ45 plugs that are not designed for field termination or for the cable diameter.
Mixing UTP cable with shielded device ports in EMI-heavy environments, or vice versa.
Ignoring bend radius, especially in tight ceiling spaces and around corners.
Pulling with excessive tension or using over-tight cable ties that deform the pairs.
Running indoor cable outdoors without UV or moisture protection.
Bundling many high-PoE links without considering heat rise and de-rating.
When time is limited, engineers and buyers often need a simple decision matrix to decide whether to use a traditional permanent link or MPTL for each device type. The table below provides a practical shortcut for 2026 projects.
| Scenario | Recommended Topology | Reasoning / Decision Rule |
|---|---|---|
| Office desks, laptops, user work areas | Traditional permanent link + outlet | Devices move; outlet provides flexibility and patching options. |
| Ceiling-mounted APs and cameras in offices | MPTL (panel to field plug) | No user outlet; every removed patch cord reduces failure risk and clutter. |
| Industrial production lines & machine control | MPTL with rugged / shielded field plug | Harsh environments make outlets impractical; direct robust connection is preferred. |
| Outdoor cameras, access control, gate readers | MPTL using outdoor / armoured cable | Entry points are sealed; direct connection reduces junction boxes and patch cords. |
| High-density PoE lighting grids | MPTL or hybrid topology | Large number of fixed endpoints – MPTL reduces hardware count and simplifies planning. |
ZION COMMUNICATION supplies a complete portfolio of copper cabling and connectivity products designed for 2026 MPTL deployments – from high-performance cables to field-termination plugs and installation tools.
Horizontal network cables: CAT5e, CAT6 and CAT6A, UTP and F/UTP, LSZH, plenum, outdoor and armoured versions.
Field-termination plugs: Shielded and unshielded RJ45 plugs for large OD cables and PoE++ loads.
Patch panels & accessories: 19" patch panels, keystone solutions and cable management hardware.
Tools: Crimping, stripping and cutting tools optimised for ZION connectors and cables.
Technical support: Design assistance for PoE++ cabling, outdoor runs and smart-building integration.
In 2026, MPTL is no longer an exotic edge case. It is a primary design pattern for smart buildings, industrial networks and high-density PoE deployments. By reducing the number of outlets and patch cords, MPTL can lower installed cost, improve reliability and simplify maintenance – provided that link length, PoE power and thermal performance are correctly engineered.
For project owners, integrators and consultants, the main questions are no longer “Is MPTL allowed?” but “Where does MPTL make the most economic and technical sense?”. With ZION’s portfolio of copper cables, field-termination plugs and support services, you can roll out MPTL with confidence across cameras, APs, lighting, BMS and industrial automation.
Share your project type, cable category, maximum distances and PoE requirements with our team. We will help you choose the correct cable construction, field-termination plug and panel configuration – and provide datasheets, samples or pricing tailored to your application.
