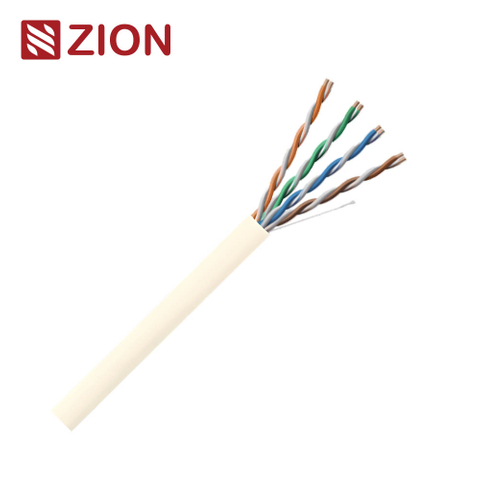

NO.7112105 U/UTP CAT 5E-UL CMP

Certificates: UL, ETL, CE,CPR, RoHS

More >>

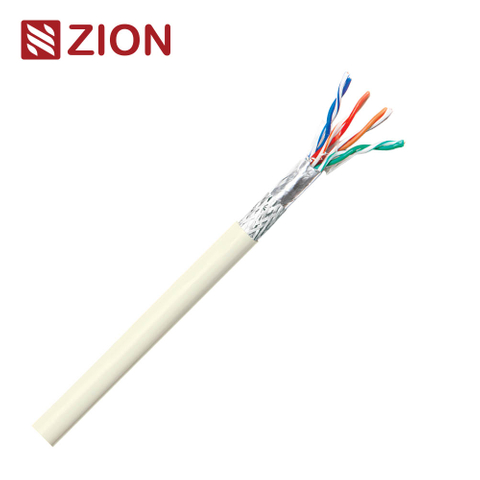

NO.7112125 SF/UTP CAT 5E-UL CMP

Certificates: UL, ETL, CE,CPR, RoHS

More >>

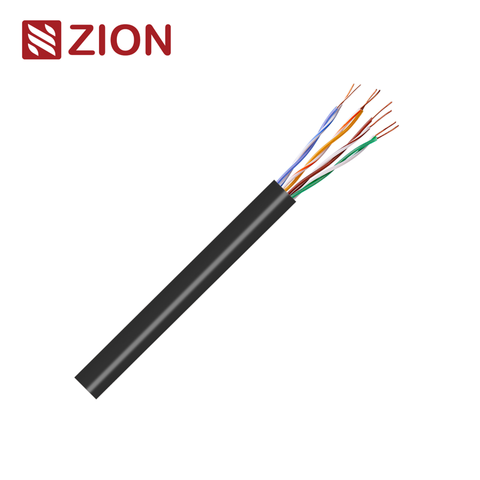

NO.7112101 U/UTP CAT 5E 4PR 24AWG PE

Certificates: UL, ETL, CE,CPR, RoHS

More >>

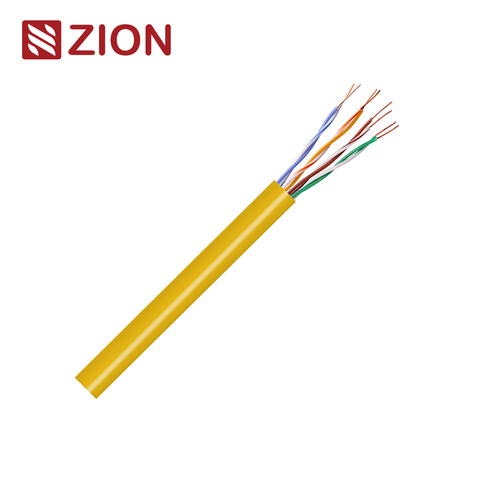

NO.7112102 U/UTP CAT 5E 4PR 24AWG PVC

Certificates: UL, ETL, CE,CPR, RoHS

More >>
NO.7112103 U/UTP CAT 5E 4PR 24AWG PVC CM

Certificates: UL, ETL, CE,CPR, RoHS

More >>

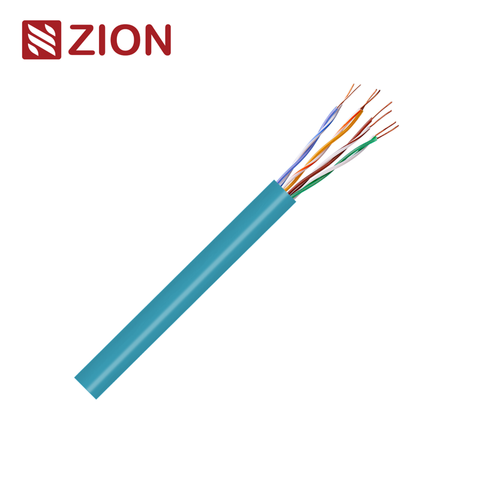

NO.7112104 U/UTP CAT 5E 4PR 24AWG PVC CMR

Certificates: UL, ETL, CE,CPR, RoHS

More >>

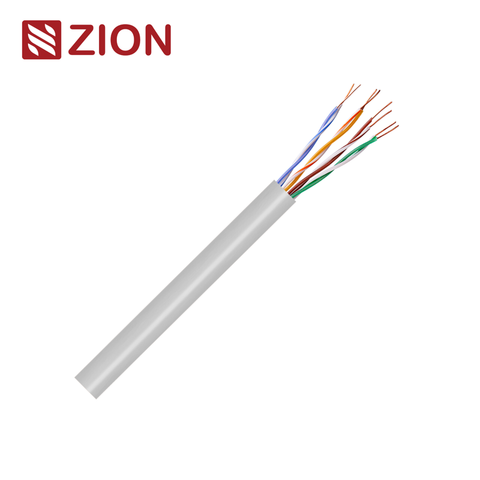

NO.7112106 U/UTP CAT 5E 4PR 24AWG LSZH

Certificates: UL, ETL, CE,CPR, RoHS

More >>
NO.7112109 U/UTP CAT 5E CPA PVC

Certificates: UL, ETL, CE,CPR, RoHS

More >>

1
2
3
4
5
»
Turn to Page Go

Product Categories

What is CAT 5e ethernet cable ?

CAT 5e cable, named , is used for Internet and Ethernet cabling infrastructure. The cable standard provides up to 100 MHz performance and is suitable for most varieties of Ethernet over twisted pairs up to 1000BASE-T( Gigabit Ethernet). For more about its key features and applications, please check our complete guide
to CAT5E.

What are CAT 5e used for?

Cat5e (Category 5 enhanced) cables are widely used in networking applications due to their capability to support higher bandwidths compared to the original Cat5 cables. Here are some common uses of Cat5e cables:

Home and Office Networks:

They are commonly used for Ethernet connections in both home and office settings, supporting activities like internet browsing, file sharing, media streaming, and VoIP services.
Gigabit Ethernet:

Cat5e cables can handle network speeds of up to 1 Gigabit per second (Gbps), making them suitable for Gigabit Ethernet networks, although they are most commonly used for 100 Mbps or 1000 Mbps (1 Gbps) speeds.
Voice and Data Transmission:

These cables are capable of transmitting both voice and data signals, and are often used in telephone systems and for other voice services.

Power over Ethernet (PoE):

Cat5e cables can be used for PoE applications, which allow network cables to carry electrical power, for devices such as network cameras, wireless access points, and VoIP phones.
Multimedia Applications:

Their enhanced bandwidth capacity makes them suitable for multimedia applications, including streaming video and audio, in residential and commercial settings.
Connecting Network Devices:

Cat5e cables are used to connect various network devices such as computers, routers, and switches within a Local Area Network (LAN).

CAT5e cable Speed

Cat5e (Category 5 enhanced) cables are designed to support higher speeds compared to standard Cat5 cables. The key speed specifications for Cat5e cables are:

Data Transfer Speed:

Cat5e cables can support network speeds up to 1 Gigabit per second (Gbps) at a standard distance of up to 100 meters (328 feet).

Frequency Bandwidth:

They offer a bandwidth capacity of up to 100 MHz, which is double that of the original Cat5 cables (which support up to 50 MHz). This increased bandwidth enables more efficient data transmission, allowing for higherspeed network connections.

These characteristics make Cat5e cables suitable for a variety of network applications, including home and office networking, internet browsing, file sharing, and streaming media, where high-speed data transfer is essential.

Specification/ Construction of CAT 5e cable 24 AWG Solid Copper

U/UTP:

the cable consists of 4 unshielded twisted pairs and no outer shielding

Code	Shielding	Conductor	Gauge	Sheath	Rating	Messenger	Application	Key Advantage
7112101	U/UTP	Bare Copper	24AWG	PE	-	No	Outdoor/duct	UV resistance
7112102	U/UTP	Bare Copper	24AWG	PVC	-	No	Indoor networks	Cost-effective
7112103	U/UTP	Bare Copper	24AWG	PVC	CM	No	Commercial	CM-rated safety
7112104	U/UTP	Bare Copper	24AWG	PVC	CMR	No	Riser	Riser safety
7112105	U/UTP	Bare Copper	24AWG	CMP	UL-CMP	No	Plenum spaces	Fire-safe plenum
7112106	U/UTP	Bare Copper	24AWG	LSZH	-	No	Indoor (fire-safe)	Fire safety
7112109	U/UTP	CPA	24AWG	PVC	-	No	Indoor budget	Low cost
7112110	U/UTP	Bare Copper	24AWG	PVC	-	No	4K IP cameras	Camera optimized
7112131	U/UTP	Bare Copper	24AWG	PE	-	Yes	Aerial outdoor	Aerial support
7112132	U/UTP	Bare Copper	24AWG	PVC	-	Yes	Aerial in/out	Versatile aerial
7112133	U/UTP	Bare Copper	24AWG	PVC	CM	Yes	Aerial commercial	Aerial, CM-rated
7112134	U/UTP	Bare Copper	24AWG	PVC	CMR	Yes	Aerial riser	Aerial, CMR-rated
7112136	U/UTP	Bare Copper	24AWG	LSZH	-	Yes	Aerial (fire-safe)	Fire-safe aerial
7112181	U/UTP	Bare Copper	24AWG	PVC	-	No	PoE networks	30V PoE support

F/UTP:

the cable consists of 4 unshielded twisted pairs, however, it contains an outer foil shield

Code	Shielding	Conductor	Sheath	Gauge	Rating	Messenger	Application	Key Advantage
7112111	F/UTP	Bare Copper	24AWG	PE	-	No	Outdoor/duct	UV resistance
7112112	F/UTP	Bare Copper	24AWG	PVC	-	No	Indoor networks	EMI protection
7112113	F/UTP	Bare Copper	24AWG	PVC	CM	No	Commercial	CM-rated safety
7112114	F/UTP	Bare Copper	24AWG	PVC	CMR	No	Riser	Riser safety
7112115	F/UTP	Bare Copper	24AWG	CMP	UL-CMP	No	Plenum spaces	Fire-safe plenum
7112116	F/UTP	Bare Copper	24AWG	LSZH	-	No	Indoor (fire-safe)	Fire safety
7112119	F/UTP	Bare Copper	24AWG	Double PVC	-	No	Outdoor	UV, double sheath
7112141	F/UTP	Bare Copper	24AWG	PE	-	Yes	Aerial outdoor	Aerial support
7112142	F/UTP	Bare Copper	24AWG	PVC	-	Yes	Aerial in/out	Versatile aerial
7112143	F/UTP	Bare Copper	24AWG	PVC	CM	Yes	Aerial commercial	Aerial, CM-rated
7112146	F/UTP	Bare Copper	24AWG	LSZH	-	Yes	Aerial (fire-safe)	Fire-safe aerial
7112182	F/UTP	Bare Copper	24AWG	PVC	-	No	PoE networks	120V PoE support

SF/UTP:

the cable consists of 4 unshielded twisted pairs, however, it contains an outer foil shield and braiding

Code	Shielding	Conductor	Gauge	Sheath	Rating	Application	Key Advantage
7112121	SF/UTP	Bare Copper	24AWG	PE	-	Outdoor/duct	UV resistance
7112122	SF/UTP	Bare Copper	24AWG	PVC	-	Indoor networks	Cost-effective EMI
7112125	SF/UTP	Bare Copper	24AWG	CMP	UL-CMP	Plenum spaces	Fire-safe plenum
7112126	SF/UTP	Bare Copper	24AWG	LSZH	-	Indoor (fire-safe)	Fire safety, EMI

U/UTP Dual

PVC, PE, LSZH, CM, CMR, CMP avaible chose for Jacket

Specification Construction of CAT 5e cable

Reference Standard and Certificates for CAT5e cable

●ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 |
ANSI/TIA-568.2-D | IEC60332-1 | EN50399

●UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANA
TEL/SABS

Connectors for CAT5e cable

RJ-45 is the standard connector used with a Cat5e cable assembly. RJ45 is the universal connector used with 99% of network devices.

Please visit below link to check how to selecting right RJ45 connector for CAT5e cable
https://hello-signal.com/modular-plug/

Packing for CAT5e cable

Inner Packing

Outer Packing

Mainly testing equipment for CAT 5e cable

1) Fluke: DSX2-8000,DSX2-5000,DTX-1800
Link LINKED testing:

This is to place the complete integrated cabling system into the testing equipment for testing, in which the entire integrated cabling system means link.
Channel CHANEL testing:

A single integrated cabling product is placed into the testing equipment. Most of the channels involved are related to the testing of cables,it means testing
the cable monomer's performance indicators such as throughput, attenuation, signal-to-noise ratio, and crosstalk. The testing of links has more practical
significance than the testing of channels.

2) Network Analyzers

Can directly and accurately test 100M, 305M, and other different lengths, with test requirements higher than the FLUKE test.

Mainly testing equipment for CAT 5e cable

How to select/choose right cat5e cable？

Selecting the right Cat5e cable for your network involves evaluating several factors to match the cable's specifications with your specific networking requirements. Here's a summary of the key considerations:

Jacket Type:

Plenum:

Best for air circulation spaces, like air ducts, due to fire-resistant properties.

Riser:

Suitable for vertical spaces within buildings, offering good heat resistance.

PVC:

Ideal for outdoor use, weather-resistant but can emit toxic gases when overheated.
PE (Polyethylene):

Great for outdoor use, known for its moisture and chemical resistance.
LSZH (Low Smoke Zero Halogen):

Used in areas where smoke emission and toxic fumes could be a concern in the event of a fire.

Conductor Material:
Bare Copper:

Flexible, with superior EMI and crosstalk resistance, maintains signal integrity well.
Copper-Clad Aluminum (CCA):

A more budgetfriendly option, but less durable and effective under certain conditions.

Shielding:
U/UTP (Unshielded Twisted Pair):

Common, without additional shielding, sufficient for most environments.
F/UTP (Foiled Twisted Pair):

Includes foil shielding, offering better protection against interference.
SF/UTP (Shielded Foiled Twisted Pair):

Both foil and braided shielding, for maximum protection in high-interference areas.

Length and Color:
Length:

Choose based on need, but consider extra length for adjustments.
Color:

Different colors help in cable management and identification.

Cost:
Opt for bare copper if budget allows for better performance. Choose CCA for more budgetfriendly options.

How do I place an OEM or customized order?

●Send your purchase intention to our email: info@zion-communication.com

●Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.

●Sign the contract or Proforma Invoice.

●After receiving your deposit, we will start to arrange the production. 2 weeks before the completion of production, we will notify you to start contacting shipping.

Why choose Zion Communications as your supplier and partner?

●Zion Communication is one of the top manufacturer and exporter of cables.
●Extensive experience in manufacturing for export and problem-solving.

●Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and skilled workers to guarantee the best products to our customers.

●Zion Communication has advanced production equipment and excellent engineers and services, continue to create maximum value for customers!
●Our management and international sales teams are committed to our customers' utmost satisfaction.
