Author: James Publish Time: 19-03-2026 Origin: Site
A practical engineering reference for comparing OS2 and OM3/OM4/OM5 MPO cabling by distance, optics cost, upgrade path, deployment risk, and common data center use cases.
OS2 MPO is usually the safer choice for backbone, inter-building, and future high-speed migration.
OM3/OM4/OM5 MPO remains efficient for short-reach data center links where optics and budget dominate the decision.
The correct comparison is not only cable price, but total link cost, reach requirement, and upgrade risk.

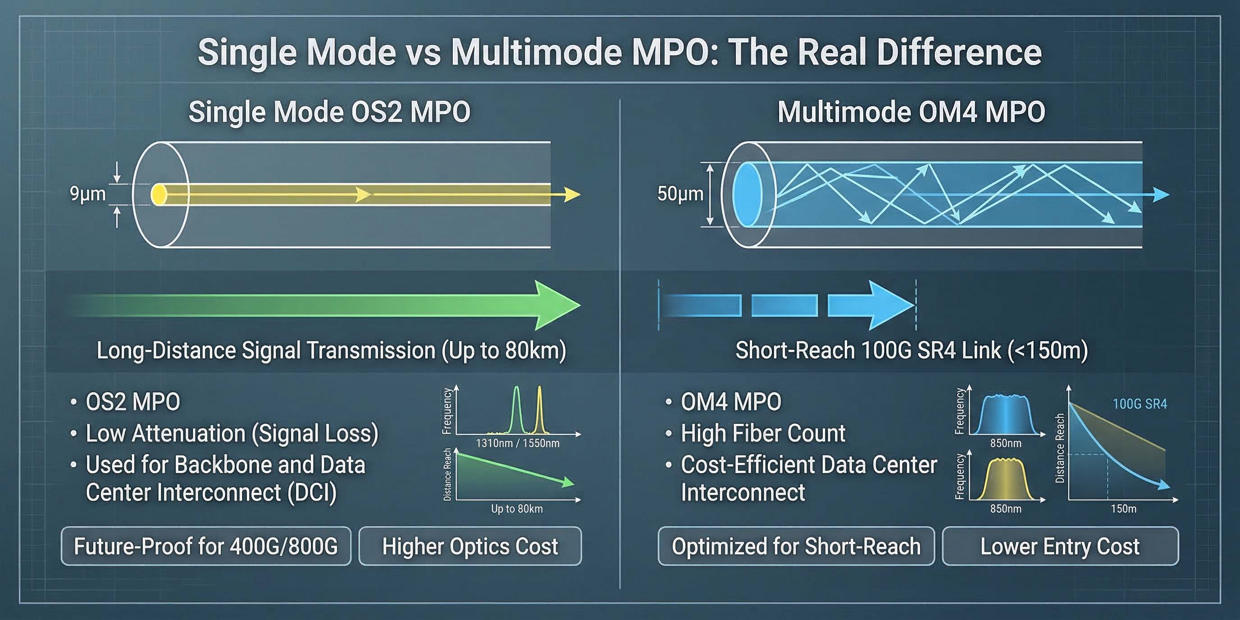

Single mode and multimode MPO cables use the same high-density MPO connector format, but they are built on different fiber types and therefore serve different link strategies. In most projects, the core comparison is OS2 single mode MPO versus OM3, OM4, or OM5 multimode MPO.
Single mode MPO is designed for narrow-core optical transmission and lower attenuation over longer distances. Multimode MPO is designed for larger-core short-reach transmission and is widely used in data center internal links where structured high-density cabling and lower initial optics cost are important.
For procurement and engineering teams, the decision is usually not about which one is “better” in the abstract. It is about which one fits the link length, transceiver budget, and upgrade horizon of the project.
| Item | Single Mode MPO | Multimode MPO |
|---|---|---|
| Main fiber type | OS2 | OM3 / OM4 / OM5 |
| Typical positioning | Backbone, longer reach, future-ready links | Short-range high-density data center links |
| Main trade-off | Higher optics cost, stronger scalability | Lower short-reach system cost, limited distance |
OS2 MPO cable is the standard single mode option used in long-distance and lower-loss optical links. It is commonly selected for campus backbone, building-to-building links, higher-speed long-reach architectures, and environments where future migration may exceed today’s short-reach assumptions.
OM3 is a widely recognized multimode category for short-distance high-speed transmission. It remains relevant in established data center environments, especially where reach is controlled and the objective is to manage initial infrastructure and optics cost.
OM4 provides improved modal bandwidth compared with OM3 and is often the more practical multimode choice for modern high-density deployments. In many enterprise and colocation environments, OM4 is the default multimode reference when balancing performance and familiarity.
OM5 extends multimode positioning into wavelength-optimized scenarios, but it is still less common than OM4 in many real projects. Engineers should verify whether the full system actually benefits from OM5 before accepting a higher cable cost or narrower supplier ecosystem.
| Fiber Type | Category | Typical MPO Role | Main Strength | Main Limitation |
|---|---|---|---|---|
| OS2 | Single mode | Backbone, DCI, longer runs | Distance and migration headroom | Optics can cost more |
| OM3 | Multimode | Short-range structured links | Lower entry cost | Shorter reach ceiling |
| OM4 | Multimode | Modern short-reach DC links | Stronger multimode performance | Still not for long backbone links |
| OM5 | Multimode | Selective wavelength-optimized use | Supports broader optical concepts | Less universal adoption |
The MPO connector format itself does not decide whether a link is short-range or long-range. The actual behavior depends on the combined system: fiber type, optical module class, channel count, insertion loss control, and the physical path length of the deployment.
This means an OS2 MPO trunk paired with the correct single mode optics can support much longer reach than an OM4 MPO trunk paired with short-range multimode optics. The cable is part of the link budget, not the whole link budget.
For data center teams, the practical mapping logic is simple: short-reach parallel optics often align with multimode systems, while longer-reach or future interconnect strategies align more naturally with single mode systems.
| Deployment Logic | Multimode MPO | Single Mode MPO |
|---|---|---|
| Typical optical approach | Short-range data center optics | Longer-reach optics classes |
| Common environment | Rack-to-rack, row-to-row, internal halls | Backbone, cross-building, campus, DCI |
| Main planning question | Can short reach cover all future paths? | Will added reach reduce future redesign? |
| Upgrade implication | Works well if topology stays compact | Safer when topology may expand |
A lower cable price does not guarantee a lower channel cost. MPO links are system decisions. Teams that compare only trunk or patch cable pricing may overlook the more important optics cost and future replacement cost.
A compact data hall may later expand into new rooms, floors, or buildings. If the original multimode design has very little reach margin, future re-cabling or architecture changes can erase the initial savings.
OM5 should be justified by a full system strategy, not selected only because it sounds newer. In many projects, OM4 remains the more practical and easier-to-source multimode option.
Even the correct fiber type can perform badly if polarity, cassette strategy, connector cleanliness, or total link loss is not controlled. MPO selection is part of channel engineering, not just a catalog choice.
| Risk | What Happens | Engineering Response |
|---|---|---|
| Short-range lock-in | Link reaches limit after expansion | Model future path lengths before fiber type freeze |
| Budget misread | Initial savings disappear at optics layer | Compare total link cost, not cable price alone |
| Wrong multimode tier | Performance margin is smaller than expected | Use OM4 as baseline unless OM3 is clearly enough |
| Channel quality issues | Testing failures or unstable performance | Control polarity, cleanliness, loss budget, and test process |
This section is the fast decision layer. Use it when the project team needs a practical answer before the full channel design is finalized.
| Decision Condition | Recommended Direction | Why | Watch Point |
|---|---|---|---|
| Short rack-to-rack or row-to-row links inside one data hall | Multimode MPO | Usually aligns with short-range optics and lower entry cost | Check future hall expansion |
| Campus backbone, inter-building, or uncertain future path growth | Single Mode MPO | More reach and better upgrade insurance | Model optics budget carefully |
| Budget-sensitive enterprise DC with fixed short topology | OM3 or OM4 MPO | Good for controlled short-reach environments | Avoid assuming future long-link support |
| Long-term 400G / higher-speed migration strategy | Prefer OS2 MPO | Better strategic headroom | Confirm optics and architecture mapping |
| OM5 is proposed because it sounds more advanced | Validate before approval | Not every project gains real value from OM5 | Check full supply and transceiver strategy |
The most common data center choice is still driven by physical path length and procurement pressure. Multimode MPO remains common in compact enterprise and colocation environments. Single mode MPO becomes more attractive when the network is treated as a long-life infrastructure asset rather than a short-cycle fit-out.
| Scenario | Preferred MPO Type | Reason |
|---|---|---|
| Rack-to-rack data center patching | Multimode MPO | Short distance and cost efficiency |
| End-of-row to core switching within one hall | OM4 MPO often fits well | Good balance for dense short links |
| Campus backbone or multi-building enterprise network | Single Mode MPO | Distance and migration resilience |
| Data center interconnect planning | Single Mode MPO | Aligned with longer-reach architecture |
| Controlled enterprise DC with defined short reach | Multimode MPO | Lower total initial deployment pressure |
Related reading for network planning:
Single mode vs multimode MPO is ultimately a project architecture decision. Multimode MPO is often the correct answer for short, cost-sensitive, high-density data center links. Single mode MPO is often the better answer when the network must tolerate longer reach, topology uncertainty, and future speed migration.
A practical way to decide is to review four items together: real path length, optics plan, upgrade horizon, and the cost of re-cabling if your assumptions change. If the project is stable and compact, multimode can be efficient. If the project may grow or stretch, OS2 MPO is usually the lower-risk long-term choice.
Send your required fiber type, core count, polarity, connector type, length, and application scenario. ZION can help you review whether OS2 or OM3/OM4/OM5 MPO is the better fit for your channel design.
