High-density MPO cabling combines multiple optical fibers in one connector for compact data center trunks, equipment patching, breakout links, fiber distribution and test workflows. Start with the exact transceiver interface rather than Ethernet speed alone, then match the fiber type, active fiber count, polarity, pinning, loss grade and cable format to the complete channel.
The range covers six functions: backbone trunks, short patch connections, MPO-to-LC breakout assemblies, modular distribution, and optical test loopbacks. Choose the function first; connector details and fiber construction come next.
FHD / UHD MODULAR
Use modular panels and cassettes to organize high-density trunks and present serviceable front-panel ports. Confirm chassis format, module capacity, rear MPO interface and front adapter type.
View Product Details →8F / 12F / 24F

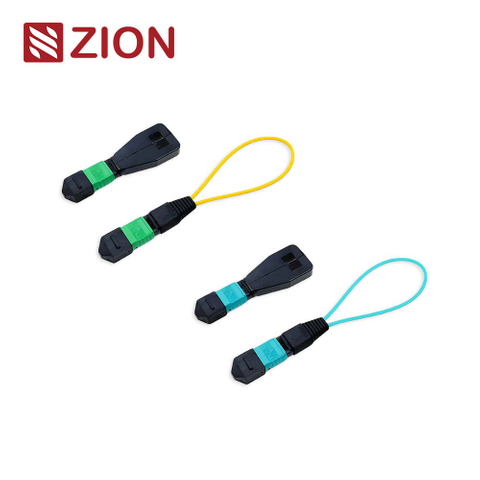

Use loopbacks for transceiver, port and production-line optical checks. Match the connector platform, fiber count, SM/OM3/OM4 mode and internal lane map to the test purpose.
View Product Details →8F / 12F / 24F

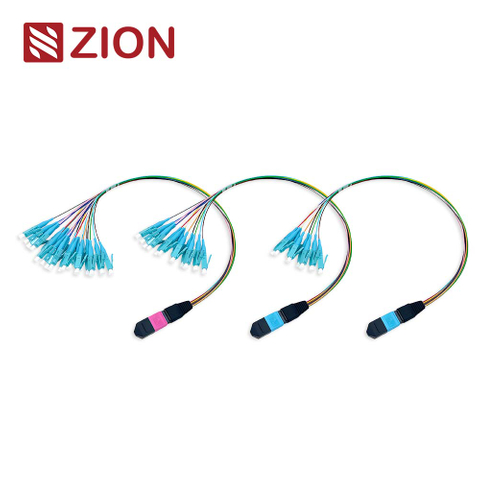

Use fan-out assemblies when one multi-fiber MPO interface must separate into LC connections. Confirm fiber mode, branch count, LC grouping, branch lengths, polarity and labeling.
View Product Details →OS2 / OM3 / OM4 / OM5
Use pre-terminated trunks for backbone links between racks, zones or distribution fields. Confirm total fiber count, polarity, pinning, loss grade, jacket, length and pulling protection.
View Product Details →MPO / MTP TO LC

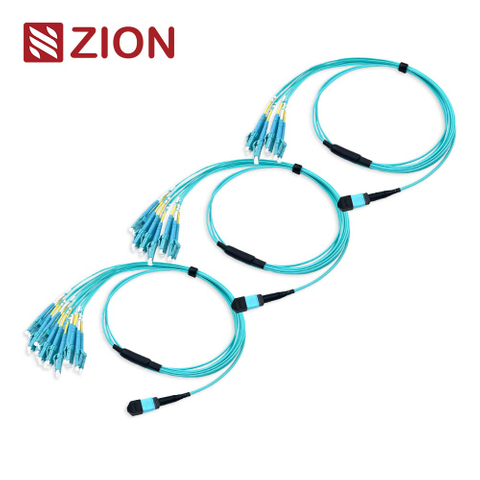

Use harnesses for planned breakout or migration between an MPO backbone and duplex LC equipment ports. Confirm the complete lane map, duplex sequence, branch length and endpoint labels.
View Product Details →12F / 24F

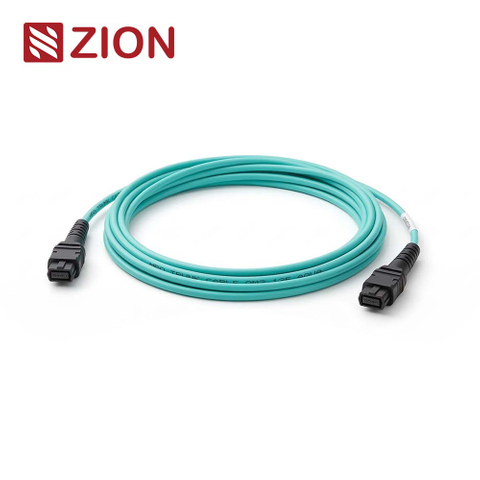

Use short multi-fiber jumpers between panels, cassettes and active equipment. OS2, OM3 and OM4 options are available; confirm gender, polarity, loss grade and routing length.
View Product Details →Start with the transceiver manufacturer and part number. The speed label alone does not reveal the optical interface, active fiber count, fiber mode or permitted channel loss.
Record the exact optic, its media-dependent interface and reach. A 400G or 800G port may use parallel MPO, duplex LC or another interface, so never select the cable from speed alone.
Choose the fiber type required by the optic. OS2 is single-mode fiber for longer-reach architectures; OM4 is common for short parallel multimode links. OM5 is useful only when the selected wideband or multi-wavelength optic provides a documented benefit.
Match the active lanes and connector row arrangement. MPO-12, MPO-16 and 24-fiber assemblies are not interchangeable labels; specify the occupied positions and end-to-end lane map.
Use MPO trunk cables for backbone routes, MPO patch cords for short equipment or panel connections, and a fan-out or harness when the channel must present LC interfaces.
Calculate the complete worst-case channel first. Low-loss connectors become more valuable when multiple mating pairs, cassettes or conversions consume margin; the quoted maximum and completed assembly test values matter more than the grade name.
Read the table by function, not by appearance. The final configuration still requires the selected optic, fiber map, polarity, pinning, loss target and installation details.
| Product | Verified Range | Primary Role | Confirm Before RFQ |
|---|---|---|---|
| Patch Panels & Cassettes | FHD / UHD modular | Distribution and front-port presentation | Chassis, module count, rear/front interfaces |
| Loopback Modules | 8F, 12F, 24F; SM, OM3, OM4 | Port and transceiver testing | Lane map, fiber mode, connector platform |
| MPO/MTP to LC Fan-Out | 8F, 12F, 24F | Multi-fiber to LC breakout | LC grouping, leg length, polarity, labels |
| MPO Trunk Cables | OS2, OM3, OM4, OM5 | Pre-terminated backbone | Fiber count, length, jacket, loss, pulling eye |
| MPO-LC Harness Cables | MPO/MTP to LC | Migration and equipment breakout | Lane map, duplex sequence, branch lengths |
| MPO Patch Cords | 12F, 24F; OS2, OM3, OM4 | Short panel or equipment patching | Gender, polarity, loss grade, route length |
The optic defines the cable. The examples below are architecture guides, not universal promises for every module; verify the transceiver data sheet, media-dependent interface, reach and allowed channel loss before ordering.
| Optical Architecture | Typical Fiber Direction | Common Cabling Direction | Must Be Confirmed |
|---|---|---|---|
| 400G SR8 | 16 active multimode fibers | OM4 parallel-fiber assembly; MPO-16 is common | Exact MDI, reach, polarity, pinning and loss |
| 400G DR4 | 8 active single-mode fibers | OS2 parallel-fiber assembly; MPO-12 APC is common | Module interface, breakout support, reach and loss |
| 800G SR8 | 16 active multimode fibers | OM4 parallel-fiber arrangement | MPO-16 or other module arrangement, reach and channel loss |
| Duplex 400G / 800G optics | 2 active single-mode fibers | OS2 duplex LC channel or MPO backbone with cassette conversion | Optic type, wavelength, reach, cassette loss and end-to-end budget |
Reuse is practical only when the existing fiber mode, active positions, polarity and measured loss match the target optics. Document the conversion instead of treating adapters or cassettes as invisible parts of the channel.
First confirm that the target optic actually needs parallel fibers. Then use mapped MPO-LC harness cables, cassettes or a new trunk, with an approved lane map and measured channel loss.
Inventory media, fiber count, polarity, loss and spare capacity before choosing the 400G optic. Pilot a representative channel, verify every conversion, and test before migrating the production zone.
A mapped cassette or conversion harness can use eight working positions from a 12-fiber subunit, leaving four unused for that link. Accept this only when utilization, polarity, added loss and future port plans are documented.
MPO is most useful when density, repeatable pre-termination or parallel optical lanes justify a multi-fiber connector. It is not automatically required for every high-speed port.
Pre-terminated trunks and modular cassettes reduce field termination work and concentrate many fibers in limited rack space. The route, pulling method, fire rating and service-loop plan still need project approval.
MPO patching can connect optics that transmit over several fibers in parallel. Do not assume that every 400G or 800G optic uses MPO; the exact module interface controls the decision.
Fan-outs, harnesses and cassettes can map a multi-fiber backbone to LC equipment ports. These conversions add connections, so include them in polarity and loss calculations.
MPO/MTP loopbacks support port checks, transceiver verification and production testing. A wrong fiber mode or lane map can create misleading results, so the test part must mirror the intended interface.
Three checks prevent most specification errors: calculate loss for the complete channel, define polarity end to end, and confirm which side provides alignment pins.
Add the guaranteed maximum loss of every connector pair, cassette or conversion plus fiber attenuation and design margin. Use the optic budget as the limit and retain lane-by-lane assembly and installed-channel test records.
Define the complete Type A, B or C method and every cassette or harness map. A component label is meaningful only within the end-to-end design; verify transmit-to-receive continuity before service.
Confirm both mating sides so two pinned plugs are never forced together. Also specify UPC or APC as required, then inspect, clean and test every interface before connection.
It is a multi-fiber connectivity system that places several optical fibers in one compact connector. It can reduce rack-space use and installation labor, but the fiber map, polarity and loss budget must be engineered as a complete channel.
A trunk is the pre-terminated backbone between distribution points, while a patch cord is a shorter jumper between panels, cassettes or equipment. Specify routing and protection for the trunk; specify cabinet routing and equipment-side pinning for the patch cord.
No. High-speed optics can use different media, active fiber counts, connector formats and reaches. Match the exact module data sheet before selecting MPO-12, MPO-16, 24-fiber or duplex LC cabling.
Yes, when a verified cassette or conversion harness maps eight working fibers and the four unused positions are documented. Confirm polarity, utilization, added insertion loss and the impact on future capacity.
No. Many parallel single-wavelength multimode optics use OM4. Select OM5 only when the exact wideband or multi-wavelength optic supports it and the documented reach benefit matters to the project.
There is no universal fixed number. Use as few mating pairs as operations allow and calculate the maximum from the optic budget, cable attenuation, guaranteed connector loss and design margin, then test the completed channel by lane.
A short but complete RFQ prevents most MPO mismatches. If a detail is not yet known, provide the transceiver part number and end-to-end port map so the required configuration can be reviewed.
Ethernet application, transceiver manufacturer and part number, breakout mode and required reach
OS2, OM3, OM4 or OM5; total fiber count and active fiber positions
MPO-12, MPO-16, 24-fiber or LC interface; UPC/APC; pinned/non-pinned; key orientation
End-to-end polarity method, lane map, LC duplex grouping and endpoint labels
Trunk, patch cord, fan-out, harness, cassette, panel or loopback format
Overall length, branch lengths, route, service loop, pulling eye and bend constraints
Maximum channel or assembly loss, standard/low-loss grade, test wavelength and report format
Jacket and fire-rating requirement, quantity by length, packaging, project labels and destination
Certification and compliance references for project review, qualification and purchasing documentation.
