LLC 500 CCA PE 50 Ohm coaxial Cable

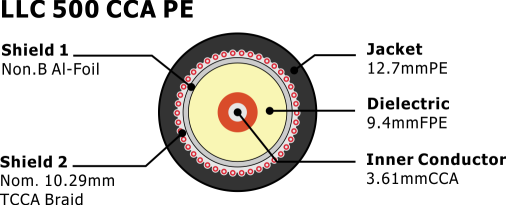

Construction Parameters:

Inner Conductor

3.61mm Copper Clad Aluminium

Dielectric

9.40mm Foamed PE

Shield 1

NON.BONDED AL FOIL

Shield 2

Nom. 10.29mm Tinned Copper Clad Aluminum Braid

Jacket

12.70mm PE/PVC/PUR

Jacket Thickness

Application

Electrical

Characteristics:

Capacitance

77.1pF/m

Impedance

50 Ω

Velocity of Propagation

0.86

Insulation Resistantce

>5000 M Ω.km

Shielding Effectiveness(dB)

> 90

Inner DC ConductorResistance

1.68  Ω/km

Outer DC ConductorResistance

4.17  Ω/km

VSWR ≤ (Return loss≥dB)

5-3000MHz

1.20(20)

800-1000MHz

1.10(26)

1700-2000MHz

1.15(23)

2000-2400MHz

1.15(23)

Mechanical and Envrionmental Properties

Cable bend radius(mm)

64

Operating Temp Range

-25 ℃ to 70℃

Cable diamensions

12.70mm

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

Avg.Power(KW)

30

1.80

2.72

50

2.30

2.13

150

4.00

1.22

220

4.90

1.00

450

7.10

0.69

900

10.30

0.48

1500

13.60

0.36

1800

15.00

0.33

2000

15.90

0.31

2500

18.00

0.27

3000

19.70

0.25

5800

29.10

0.17

Order Informations:

Marking

HELLOSIGNAL LMR 500 CCA PE
50 Ohm COAXIAL CABLE 7101011 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM
