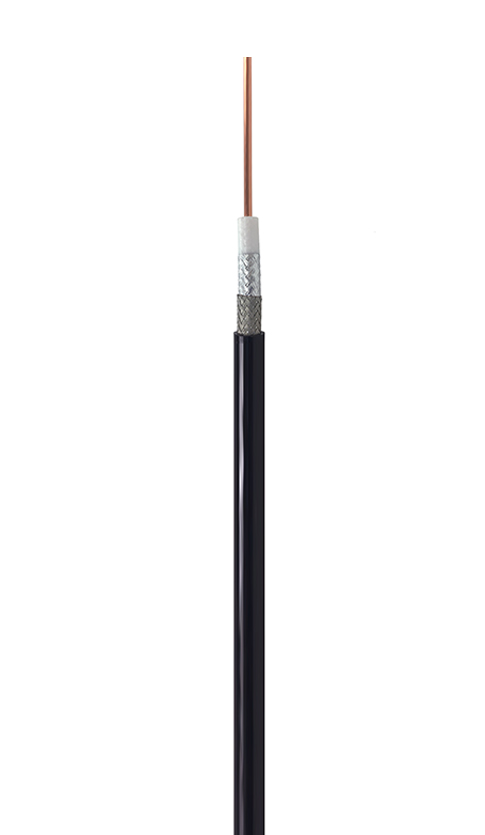

LLC 240 BC  NO.7101004


LMR240 was designed and produced by Times Microwave;

CNT240 was designed and produced by Compex;

LLC240 was designed and produced by Zion Communications.

This type of 50 Ohms coax cable with UV Resistant jacket.

LLC-240 is a drop-in replacement for RG8X.

Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable

We produce this model 365 days a year, giving you a five-star experience in terms of quality, price, delivery time and service. We welcome your inquiry and order.




Construction Parameters:

Inner Conductor

1.42±0.03mm Bare Copper Wire

Dielectric

3.81±0.15mm Foamed PE

Shield

Bonded Aluminum polyester tape

Outer Conductor

4.52mm Tinned Copper Braid

Jacket

6.10±0.2mm PE Black

More choice of Jacket

FRPE / PVC / PVC W










Electrical Characteristics:




Capacitance

79.4 pF/m




Impedance

50±2 Ω

Velocity of Propagation

83%

Peak Power Rating

5.6 KW

Max.Operating Frequency

6 GHz

Insulation Resistantce

>5000 M Ω.km

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

10.50 Ω/km

Outer Conductor DC Resistance

12.76 Ω/km

VSWR ≤ (Return loss≥dB)


30MHz-3000MHz

1.20 (20)










Mechanical and Envrionmental Properties:

Cable Bend Radius

Installation: 19.1mm

Repeated: 63.5mm

Compressive flat force


Maximum tension

36.3 kg

Bending Moment

0.34 N-m

Flat Plate Crush Stength

0.36 kg/mm

Recommended
Temperature

Storage:

- 70 ℃ to +85℃

Installation:

- 40 ℃ to +85℃

Operating:

- 40 ℃ to +85℃





































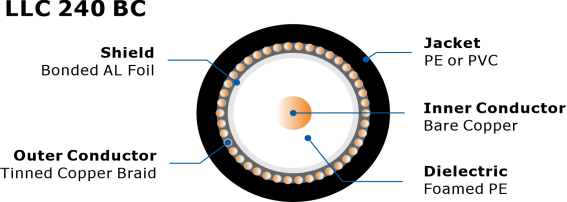

Cross Section:





Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

Avg.Power(KW)

30

4.40

1.49

50

5.70

1.15

150

9.90

0.66

220

12.00

0.54

450

17.30

0.38

900

24.80

0.26

1500

32.40

0.20

1800

35.60

0.18

2000

37.70

0.17

2500

42.40

0.15

3000

46.50

0.12

5800

66.80

0.09




Order Informations:

Marking

HELLOSIGNAL LLC 240 50 Ohm COAXIAL CABLE ×××M

Package

500M/Wooden Drum, 1000M/Wooden Drum

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM

Whatsapp/WeChat

0086 18268009191

Email

info@zion-communication.com
