NO.7101003 LLC 200 BC

LLC 200 BC

NO.7101003

■ Overview:

Design and Production:

LLC200: Designed and produced by Zion Communications.

LMR200: Designed and produced by Times Microwave.

CNT200: Designed and produced by Compex.

Features:

50 Ohms coaxial cable with UV-resistant jacket.

Equivalent and high-quality alternative to RG-58.

High-performance, flexible, low-loss RF cable suitable for antenna feeder jumper assemblies.

Production:

Produced 365 days a year, ensuring high quality, competitive pricing, timely delivery, and excellent service.

Welcomes inquiries and orders.

■ Construction Parameters:

Inner Conductor: 1.12 ± 0.03 mm Bare Copper Wire

Dielectric: 2.95 ± 0.15 mm Foamed PE

First Shield: Bonded Aluminum Polyester Tape

Second Shield: 3.66 mm Tinned Copper Braid

Jacket: 5.0 ± 0.2 mm PE Black

Additional Jacket Options: FRPE / PVC / PVC W

■ Electrical Characteristics:

Capacitance: 80.4 pF/m

Impedance: 50 ± 2 Ω

Velocity of Propagation: 83%

Peak Power Rating: 2.5 kW

Max. Operating Frequency: 6 GHz

Insulation Resistance: >5000 MΩ·km

Shielding Effectiveness: >90 dB

Inner Conductor DC Resistance: 17.6 Ω/km

Outer Conductor DC Resistance: 16.1 Ω/km

VSWR (Return Loss):

• 30 MHz to 3000 MHz: 1.20 (20 dB)

■ Mechanical and Environmental Properties:

Cable Bend Radius:

• Installation: 12.7 mm

• Repeated: 50.8 mm

Compressive Flat Force: Not specified

Maximum Tension: 48 kg

Bending Moment: 0.27 N-m

Flat Plate Crush Strength: 0.27 kg/mm

Recommended Temperature:

• Storage: -70 ℃ to +85 ℃

• Installation: -40 ℃ to +85 ℃

• Operating: -40 ℃ to +85 ℃

■ Cross Section:

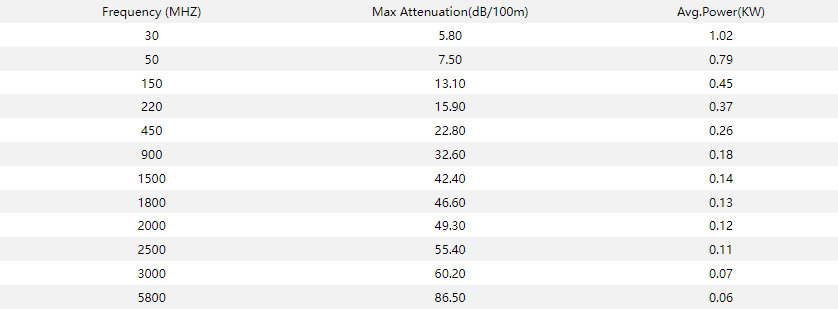

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL LLC 200 50 Ohm COAXIAL CABLE ×××M (or per customer's request)

Package: 500M/Wooden Drum, 1000M/Wooden Drum

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® or OEM
