LLC 100 BC  NO.7101001


LMR100 was designed and produced by Times Microwave; CNT100 was designed and produced by Compex;

LLC100 was designed and produced by Zion Communications.

This type of 50 Ohms coax cable with UV Resistant jacket.

LLC-100 is a drop-in replacement for RG-174 and RG-316.

Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable

We produce this model 365 days a year, giving you a five-star experience in terms of quality, price, delivery time and service. We welcome your inquiry and order.




Construction Parameters:

Inner Conductor

0.46±0.03mm Bare Copper Wire

Dielectric

1.52±0.15mm Solid PE

Shield

Bonded Aluminum polyester tape

Outer Conductor

2.11mm Tinned Copper Braid

Jacket

2.79±0.2mm PE Black

More choice of Jacket

FRPE / PVC / PVC W










Electrical Characteristics:




Capacitance

101.1 pF/m


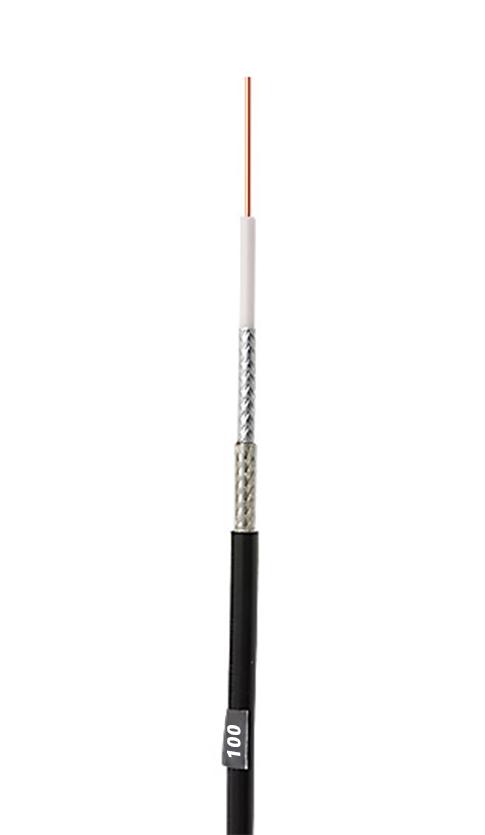

 NO.7101001 LLC 100

Impedance

50±2 Ω

Velocity of Propagation

66%

Peak Power Rating

0.6 KW

Max.Operating Frequency

6 GHz

Insulation Resistantce

>5000 M Ω.km

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

106 Ω/km

Outer Conductor DC Resistance

31.2 Ω/km

VSWR ≤ (Return loss≥dB)


30MHz-3000MHz

1.20 (20)










Mechanical and Envrionmental Properties:

Cable Bend Radius

Installation: 6.4mm

Repeated: 25.4mm

Compressive flat force

0.7 kg/mm2

Maximum tension

6.8 kg

Bending Moment

0.014 N-m

Flat Plate Crush Stength

0.18 kg/mm

Recommended
Temperature

Storage:

- 70 ℃ to +85℃

Installation:

- 40 ℃ to +85℃

Operating:

- 40 ℃ to +85℃





































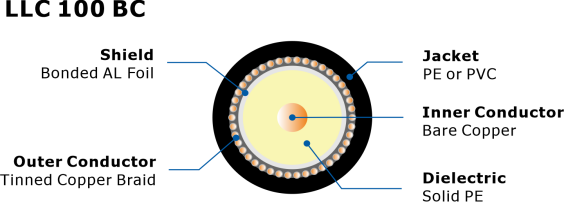

Cross Section:





Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

Avg.Power(KW)

30

12.90

0.23

50

16.70

0.18

150

29.40

0.10

220

35.80

0.08

450

51.90

0.06

900

74.90

0.05

1500

98.70

0.04

1800

109.00

0.03

2000

115.50

0.03

2500

130.60

0.02

3000

143.80

0.02

5800

210.30

0.01




Order Informations:

Marking

HELLOSIGNAL LLC 100 50 Ohm COAXIAL CABLE ×××M

Package

500M/Wooden Drum, 1000M/Wooden Drum

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM

Whatsapp/WeChat

0086 18268009191

Email

info@zion-communication.com
