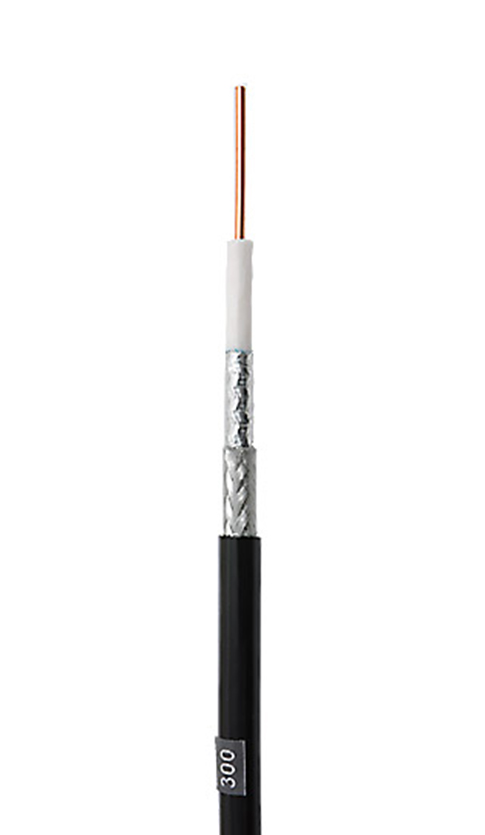

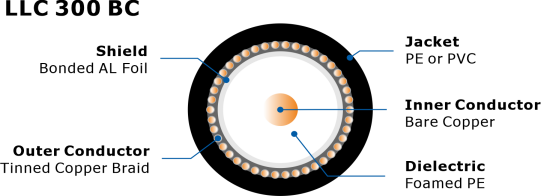

LLC 300 BC NO.7101005 LMR300 was designed and produced by Times Microwave; CNT300 was designed and produced by Compex; LLC300 was designed and produced by Zion Communications. LLC-300 is a drop-in replacement for RG8X. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable | ||||||||
Construction Parameters: | ||||||||
Inner Conductor | 1.78±0.03mm Bare Copper Wire | |||||||
Dielectric | 4.83±0.15mm Foamed PE | |||||||
Shield | Bonded Aluminum polyester tape | |||||||
Outer Conductor | 5.72mm Tinned Copper Braid | |||||||
Jacket | 7.62±0.2mm PE Black | |||||||
More choice of Jacket | FRPE / PVC / PVC W | |||||||
Electrical Characteristics: | ||||||||
Capacitance | 78.8 pF/m |
| ||||||
Impedance | 50±2 Ω | |||||||
Velocity of Propagation | 83% | |||||||
Peak Power Rating | 10 KW | |||||||
Max.Operating Frequency | 6 GHz | |||||||
Insulation Resistantce | >5000 M Ω.km | |||||||
Shielding Effectiveness | > 90 dB | |||||||
Inner Conductor DC Resistance | 7.0 Ω/km | |||||||
Outer Conductor DC Resistance | 7.3 Ω/km | |||||||
VSWR ≤ (Return loss≥dB) | ||||||||
30MHz-3000MHz | 1.20 (20) | |||||||
Mechanical and Envrionmental Properties: | ||||||||
Cable Bend Radius | Installation: 22.2mm | |||||||
Repeated: 76.2mm | ||||||||
Compressive flat force | ||||||||
Maximum tension | 54.5 kg | |||||||
Bending Moment | 0.52 N-m | |||||||
Flat Plate Crush Stength | 0.54 kg/mm | |||||||
Recommended | Storage: | - 70 ℃ to +85℃ | ||||||
Installation: | - 40 ℃ to +85℃ | |||||||
Operating: | - 40 ℃ to +85℃ | |||||||
Cross Section: | ||||||||
| ||||||||
Attenuation(20℃): | ||||||||
Frequency (MHZ) | Max Attenuation(dB/100m) | Avg.Power(KW) | ||||||
30 | 3.50 | 2.09 | ||||||
50 | 4.50 | 1.62 | ||||||
150 | 7.90 | 0.92 | ||||||
220 | 9.60 | 0.76 | ||||||
450 | 13.80 | 0.52 | ||||||
900 | 19.90 | 0.36 | ||||||
1500 | 26.00 | 0.28 | ||||||
1800 | 28.70 | 0.25 | ||||||
2000 | 30.30 | 0.24 | ||||||
2500 | 34.20 | 0.21 | ||||||
3000 | 37.50 | 0.13 | ||||||
5800 | 54.30 | 0.11 | ||||||
Order Informations: | ||||||||
Marking | HELLOSIGNAL LLC 300 50 Ohm COAXIAL CABLE ×××M | |||||||
Package | 500M/Wooden Drum, 1000M/Wooden Drum | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
Whatsapp/WeChat | 0086 18268009191 | |||||||
LLC 300 BC NO.7101005 LMR300 was designed and produced by Times Microwave; CNT300 was designed and produced by Compex; LLC300 was designed and produced by Zion Communications. LLC-300 is a drop-in replacement for RG8X. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable | ||||||||
Construction Parameters: | ||||||||
Inner Conductor | 1.78±0.03mm Bare Copper Wire | |||||||
Dielectric | 4.83±0.15mm Foamed PE | |||||||
Shield | Bonded Aluminum polyester tape | |||||||
Outer Conductor | 5.72mm Tinned Copper Braid | |||||||
Jacket | 7.62±0.2mm PE Black | |||||||
More choice of Jacket | FRPE / PVC / PVC W | |||||||
Electrical Characteristics: | ||||||||
Capacitance | 78.8 pF/m |
| ||||||
Impedance | 50±2 Ω | |||||||
Velocity of Propagation | 83% | |||||||
Peak Power Rating | 10 KW | |||||||
Max.Operating Frequency | 6 GHz | |||||||
Insulation Resistantce | >5000 M Ω.km | |||||||
Shielding Effectiveness | > 90 dB | |||||||
Inner Conductor DC Resistance | 7.0 Ω/km | |||||||
Outer Conductor DC Resistance | 7.3 Ω/km | |||||||
VSWR ≤ (Return loss≥dB) | ||||||||
30MHz-3000MHz | 1.20 (20) | |||||||
Mechanical and Envrionmental Properties: | ||||||||
Cable Bend Radius | Installation: 22.2mm | |||||||
Repeated: 76.2mm | ||||||||
Compressive flat force | ||||||||
Maximum tension | 54.5 kg | |||||||
Bending Moment | 0.52 N-m | |||||||
Flat Plate Crush Stength | 0.54 kg/mm | |||||||
Recommended | Storage: | - 70 ℃ to +85℃ | ||||||
Installation: | - 40 ℃ to +85℃ | |||||||
Operating: | - 40 ℃ to +85℃ | |||||||
Cross Section: | ||||||||
| ||||||||
Attenuation(20℃): | ||||||||
Frequency (MHZ) | Max Attenuation(dB/100m) | Avg.Power(KW) | ||||||
30 | 3.50 | 2.09 | ||||||
50 | 4.50 | 1.62 | ||||||
150 | 7.90 | 0.92 | ||||||
220 | 9.60 | 0.76 | ||||||
450 | 13.80 | 0.52 | ||||||
900 | 19.90 | 0.36 | ||||||
1500 | 26.00 | 0.28 | ||||||
1800 | 28.70 | 0.25 | ||||||
2000 | 30.30 | 0.24 | ||||||
2500 | 34.20 | 0.21 | ||||||
3000 | 37.50 | 0.13 | ||||||
5800 | 54.30 | 0.11 | ||||||
Order Informations: | ||||||||
Marking | HELLOSIGNAL LLC 300 50 Ohm COAXIAL CABLE ×××M | |||||||
Package | 500M/Wooden Drum, 1000M/Wooden Drum | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
