NO.7101007 LLC 400 CCA PE

LLC 400 CCA

NO.7101006

■ Overview:

Design and Production:

• LLC400: Designed and produced by Zion Communications.

• LMR400: Designed and produced by Times Microwave.

• CNT400: Designed and produced by Compex.

Features:

• 50 Ohms coaxial cable with UV-resistant jacket.

• Drop-in replacement for RG-8/9913 cables.

• High-performance, flexible, low-loss RF cable suitable for antenna feeder jumper assemblies.

Production:

Produced 365 days a year, ensuring high quality, competitive pricing, timely delivery, and excellent service.

Welcomes inquiries and orders.

■ Construction Parameters:

Inner Conductor: 2.74 mm Copper Clad Aluminium

Dielectric: 7.25 mm Foamed PE

First Shield: Bonded AL Foil

Second Shield: Nom. 8.13 mm Tinned Copper Braid

Jacket: 10.29 mm PE Black

Jacket Thickness: Not specified

Application: Not specified in the provided information

■ Electrical Characteristics:

Capacitance: 77.1 pF/m

Impedance: 50 Ω

Velocity of Propagation: 85%

Insulation Resistance: >5000 MΩ·km

Shielding Effectiveness: >90 dB

Inner Conductor DC Resistance: 2.92 Ω/km

Outer Conductor DC Resistance: 5.41 Ω/km

VSWR (Return Loss):

• 5-3000 MHz: 1.20 (20 dB)

• 800-1000 MHz: 1.10 (26 dB)

• 1700-2000 MHz: 1.15 (23 dB)

• 2000-2400 MHz: 1.15 (23 dB)

■ Cross Section:

■ Mechanical and Environmental Properties:

Cable Bend Radius: 51 mm

Operating Temperature Range: -40 ℃ to +85 ℃

Cable Dimensions: 10.29 mm

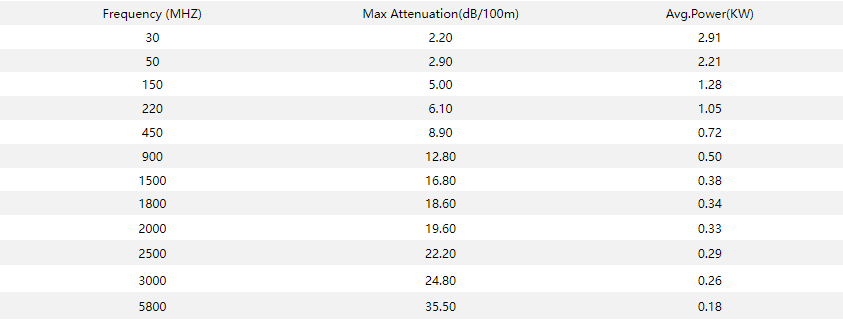

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL LLC 400 50 Ohm COAXIAL CABLE ×××M (or per customer's request)

Package: Inquired Length on Roll, Wooden Spool, Pallet (or per customer's request)

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® or OEM
