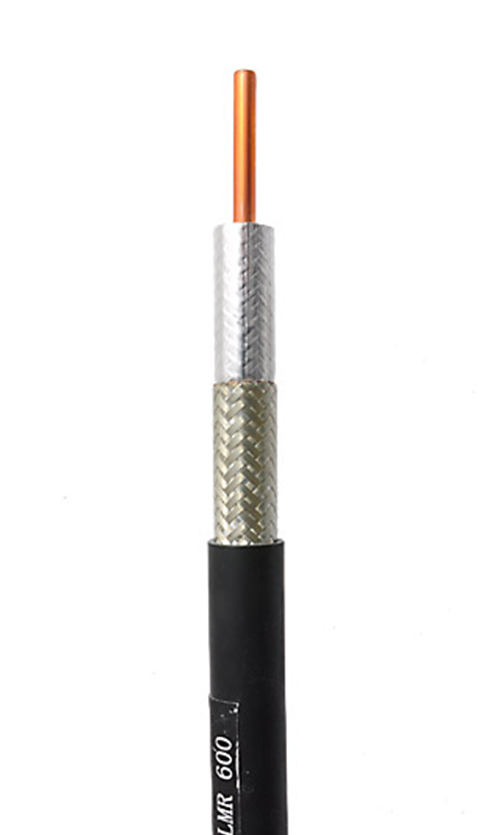

NO.7101009 LLC 600 CCA PE

  • LLC 600= L M R600 = C N T 600

  • hellosignal

  • 7101009

  • Coaxial Cable

  • 50 ohm

  • UL, ETL, CE,CPR, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 10KM

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

LLC 600 CCA  NO.7101009


LMR600 was designed and produced by Times Microwave;

CNT600 was designed and produced by Compex;

LLC600 was designed and produced by Zion Communications.

This type of 50 Ohms coax cable with UV Resistant jacket. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable

We produce this model 365 days a year, giving you a five-star experience in terms of quality, price, delivery time and service. We welcome your inquiry and order.




Construction Parameters:

Inner Conductor

4.47±0.03mm Copper Clad Aluminium  Wire

Dielectric

11.56±0.15mm Foamed PE

Shield

Bonded Aluminum polyester tape

Outer Conductor

12.45mm Tinned Copper Braid

Jacket

14.99±0.2mm PE Black

More choice of Jacket

FRPE / PVC / PVC W










Electrical Characteristics:




Capacitance

76.6 pF/m




Impedance

50±2 Ω

Velocity of Propagation

85%

Peak Power Rating

40 KW

Max.Operating Frequency

6 GHz

Insulation Resistantce

>5000 M Ω.km

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

1.7 Ω/km

Outer Conductor DC Resistance

3.9 Ω/km

VSWR ≤ (Return loss≥dB)


30MHz-3000MHz

1.20 (20)










Mechanical and Envrionmental Properties:

Cable Bend Radius

Installation: 38.1mm

Repeated: 152.4mm

Compressive flat force


Maximum tension

158.9 kg

Bending Moment

3.73 N-m

Flat Plate Crush Stength

1.07 kg/mm

Recommended
Temperature

Storage:

- 70 ℃ to +85℃

Installation:

- 40 ℃ to +85℃

Operating:

- 40 ℃ to +85℃





































Cross Section:





Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

Avg.Power(KW)

30

1.40

5.51

50

1.80

4.24

150

3.20

2.41

220

3.90

1.97

450

5.60

1.35

900

8.20

0.93

1500

10.90

0.70

1800

12.10

0.63

2000

12.80

0.59

2500

14.50

0.52

3000

15.70

0.48

5800

23.80

0.32




Order Informations:

Marking

HELLOSIGNAL LLC 600 CCA 50 Ohm COAXIAL CABLE ×××M

Package

500M/Wooden Drum, 1000M/Wooden Drum

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
