Cable fibra óptica Access Building Cable Glass Yarn cable LSZH jacket

  • Access Building Optical fiber Cable
  • N/M
  • N/M
  • Access Building Optical fiber Cable
  • Access Building Optical fiber Cable
  • ISO9001
  • 1km/Spool
  • Wooden Spool ,Φ380*380mm
  • 100km
  • 5-25 Days
  • NINGBO CHINA
  • 30%TT as deposit,70%Balance before shipping.

Access building cable glass yarn-details

Product Director : James Xu

Email:  james@zion-communication.com


Characteristic: Mobile cable

Cable Type:  Access Building Cable

Fiber Type: G.657.A1 / G.652.D
Jacket Material:
LSZH jacket
Total Fiber Count: 2-12F
Subunit Type: Simplex cable as subunit

Environmental Space: Access Building Optical fiber Cable

Armor: No


Technical data:

Numbers of fibers: 2-12F

Fiber type: Single mode G.657.A1/OM1/OM2/OM3

Strength Member: Glass Yard

Loose Tube:  No

Filler Rope:  No

Water Blocking Layer(Material): No

Additional Strength Member(Material):No

Outer Sheath:  LSZH jacket

Cable Diameter(±0.2mm): 6.8-7.8mm

Cable Weight(±10.0kg/km): 55-67kg

Attenuation coefficient :  @ 1310nm≤0.35dB ;   @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ


Description:

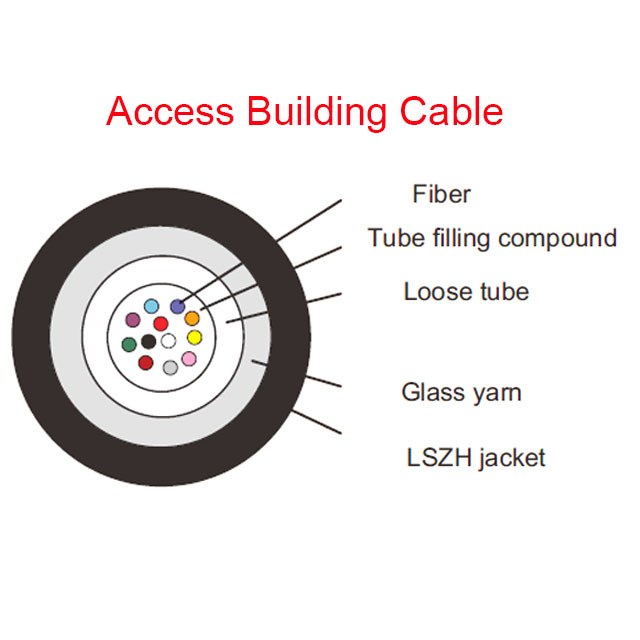

The fibers ,250μm,are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound.The tube is covered with a layer of aramid  yarn as strength member.then wrapped with a layer of PSP longitudinally. The cable is completed with a LSZH(LSZH,Low smoke,Zero halogen,Flame-retardant)material Jacket.


Application:

▶  Military communication system cable distribution

▶  Communication between radars or in oil field,mining work place



Fibre Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua


Jacket Colors

No.

1

2

3

4

5

6

Color






White

No.

7

8

9

10

11

12

Color


Black







Single mode optical fiber (ITU-T Rec. G.652.D)

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm



£ 0.35 dB/km

£ 0.32 dB/km

£ 0.21 dB/km

£ 0.24 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0oC~ +70oC @ 1310 & 1550nm

£ 0.1 dB/km
